TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) 61" Deck Caster & Roller Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

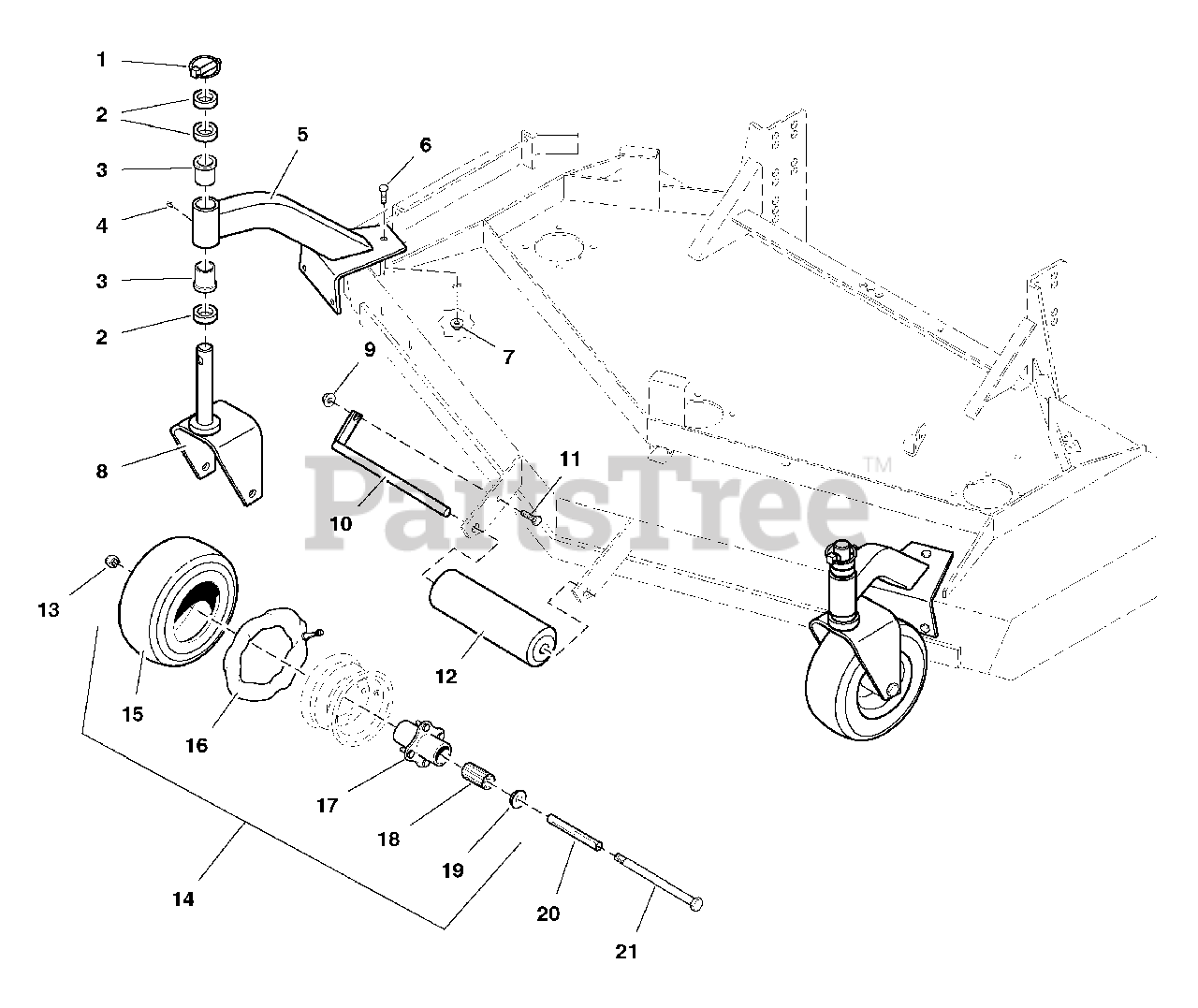

61" Deck Caster & Roller Group Parts Diagram

  • Title

1

Simplicity 5020655SM

LYNCH PIN

$10.99

$

In Stock, only 4 left!

0

2

Simplicity 5041476SM

CASTER SPACER

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 5021541SM

BUSHING, Flange

$9.99

$

In Stock, Qty 7

0

4

Simplicity 5020095SM

GREASE FITTING

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5043887CSM

CASTER MOUNT, Complete (includes Ref 3 & 4)

$

$

Not available

6

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 6

0

7

Simplicity 5025139SM

NUT, Hex, Serrated Flange, 5/16-18

$3.49

$

In Stock, only 2 left!

0

8

Simplicity 5041702CSM

CASTER YOKE

$186.99

$

In Stock, only 4 left!

0

9

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5041655AYP

WELD, BRACKET, ROLLER PIN - BLK

Note: SECURE W/ 5025013X8 & 5101414

$46.99

$

In Stock, only 1 left!

0

11

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5020785SM

ROLLER

$29.99

$

In Stock, Qty 11

0

13

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 9

0

14

Simplicity 5021181SSM

WHEEL & TIRE ASSEMBLY, Front, Silver, 9 x 3.5 x 4, Complete (includes Ref 15 - 19)

$100.99

$

In Stock, only 4 left!

0

15

Simplicity 5021181X1SM

TIRE, Front, 9 x 3.5 x 4

$47.99

$

Usually ships in 2-12 days

0

16

Simplicity 5021181X2SM

TUBE, for 9 x 3.5 x 4 Tire

$24.99

$

Usually ships in 2-12 days

0

17

Simplicity 5021181S3

HUB & BEARING ASSEMBLY, Complete, Silver (includes Ref 18 & 19)

$

$

Not available

18

Simplicity 5021182SM

BEARING, Roller (1 per tire)

$18.99

$

In Stock, only 1 left!

0

19

Simplicity 5021043SM

RETAINER, Bearing (2 per tire)

$7.49

$

In Stock, only 3 left!

0

20

Simplicity 5041657SM

AXLE, Caster

$13.99

$

In Stock, only 2 left!

0

21

Simplicity 5025017X44SM

CAPSCREW, Hex Hd, 1/2-13 x 5-1/2

$7.99

$

In Stock, only 1 left!

0
