TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) 61" Mower Drive Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

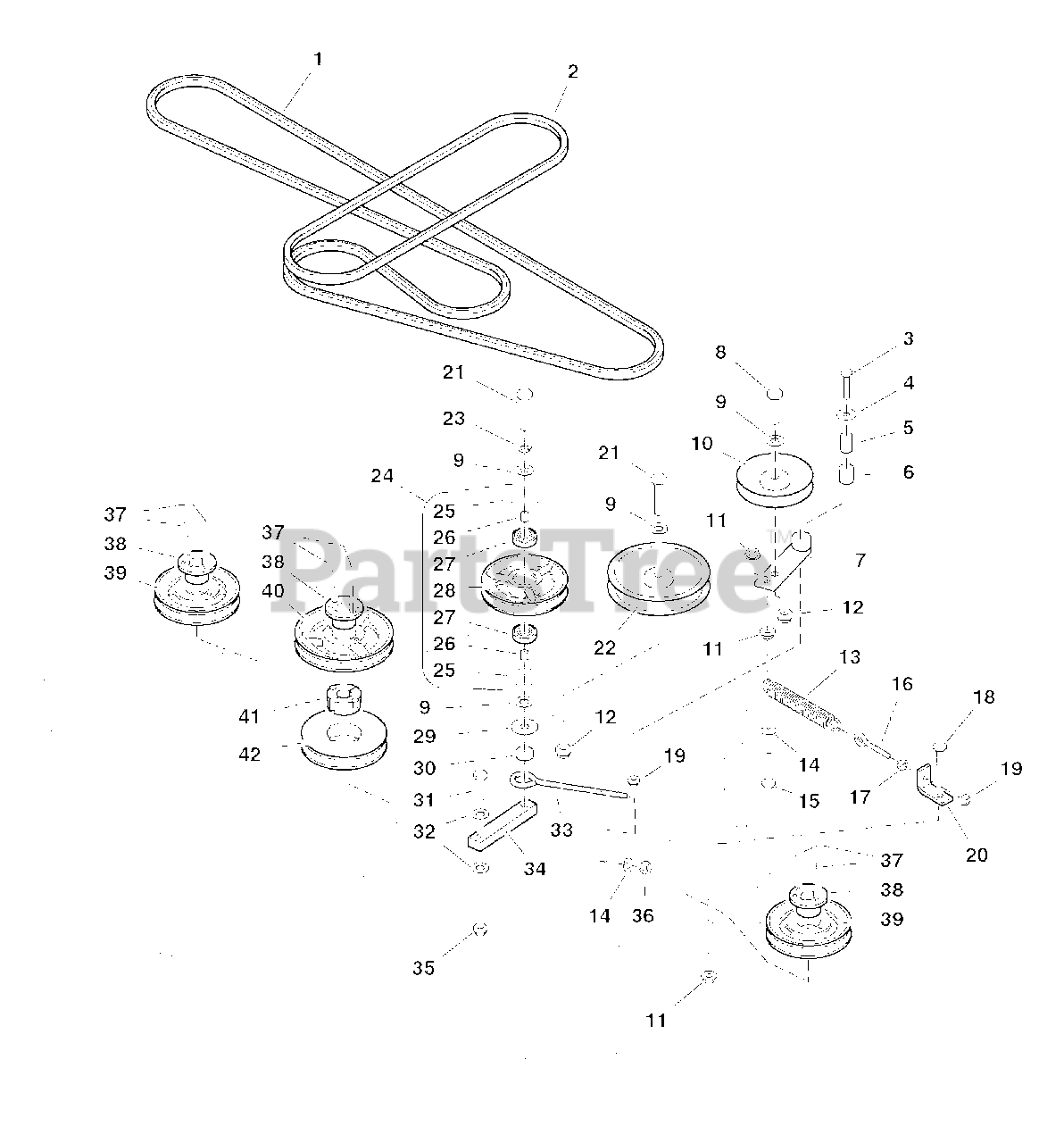

61" Mower Drive Group Parts Diagram

  • Title

1

Simplicity 5020824SM

BELT, Spindle Drive

$112.99

$

Usually ships in 2-12 days

0

2

Simplicity 5021063SM

BELT, Deck Drive

$65.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025011X14SM

CAPSCREW, Hex Hd, 5/16-18 x 1-3/4

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025164SM

WASHER, Fender, 5/16

$3.99

$

In Stock, only 1 left!

0

5

Simplicity 5042134SM

SPACER, Pivot

$6.49

$

Usually ships in 2-12 days

0

6

Simplicity 5020876BSM

BUSHING, Brass

$11.99

$

In Stock, only 1 left!

0

7

Simplicity 5042145CSM

IDLER ARM, Complete (includes Ref 6)

$78.99

$

Usually ships in 2-12 days

0

8

Simplicity 502501816

CAPSCREW, Hex Hd, 1/2-20 x 2

$

$

Not available

9

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 13

0

10

Simplicity 5021097SM

PULLEY, Idler, V

$40.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

13

Simplicity 5021103SM

SPRING, Extension

$19.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 14

0

15

Simplicity 5025013X16SM

CAPSCREW, Hex Hd, 3/8-16 x 2

$4.49

$

In Stock, Qty 6

0

16

Simplicity 5025141SM

EYEBOLT

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025032SM

NUT, Hex, 5/16-18

$3.49

$

In Stock, only 1 left!

0

18

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

19

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

20

Simplicity 5042142CSM

SPRING ANCHOR

$

$

Not available

21

Simplicity 502501818

CAPSCREW, Hex Hd, 1/2-20 x 2-1/4

$

$

Not available

22

Simplicity 5021096SM

PULLEY, Idler, Flat

$109.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025173

WASHER, Lock, 1/2
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 5030819SM

IDLER PULLEY, Complete (includes Ref 25-28)

$148.99

$

In Stock, only 1 left!

0

25

Simplicity 5020865

SNAP RING
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

26

Simplicity 5020870SM

INSERT

$5.49

$

In Stock, only 3 left!

0

27

Simplicity 1705897SM

BEARING, BALL 11/16X1-9/16X15/32

$8.49

$

In Stock, Qty 20+

0

28

Simplicity 5041481

PULLEY, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

29

Simplicity 5025150SM

WASHER, USS, 1/2

$3.99

$

In Stock, only 2 left!

0

30

Simplicity 5044609SM

SPACER, Pulley

$6.49

$

Usually ships in 2-12 days

0

31

Simplicity 502501614

CAPSCREW, Hex Hd, 7/16-20 x 1-3/4

$

$

Not available

32

Simplicity 5025157

WASHER, 7/16
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

33

Simplicity 5021811SM

EYEBOLT

$8.49

$

Usually ships in 2-12 days

0

34

Simplicity 5044610CSM

IDLER ARM

$

$

Not available

35

Simplicity 5025094

NUT, Hex, Nylon Lock, 7/16-20
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

36

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

37

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

Usually ships in 2-12 days

0

38

Simplicity 5020819SM

BUSHING, Taper Lock

$26.99

$

Usually ships in 2-12 days

0

39

Simplicity 5020814SM

PULLEY, Spindle

$87.99

$

Usually ships in 2-12 days

0

40

Simplicity 5020815SM

PULLEY, Spindle

$111.99

$

Usually ships in 2-12 days

0

41

Simplicity 5022160SM

BUSHING, Taper Lock

$61.99

$

In Stock, only 1 left!

0

42

Simplicity 5022159SM

PULLEY, Taper Lock

$195.99

$

In Stock, only 1 left!

0
