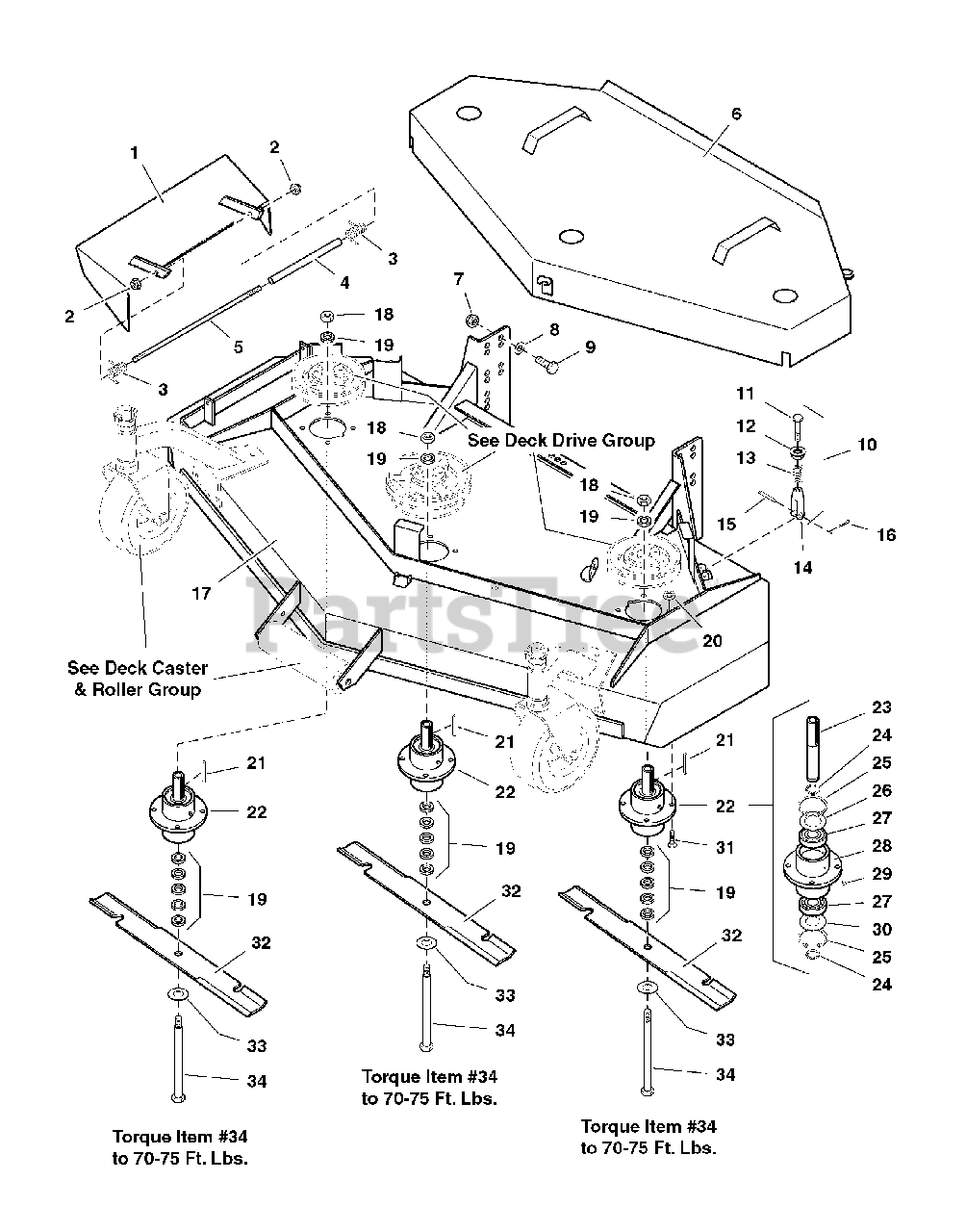

TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) 61" Mower Housing, Cover, Blade & Spindle Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

61" Mower Housing, Cover, Blade & Spindle Group Parts Diagram

  • Title

1

Simplicity 5041668CSM

CHUTE, Discharge

$125.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025045SM

NUT, Hex, Nylon Lock, 5/16-24

$3.49

$

In Stock, Qty 15

0

3

Simplicity 1723938SM

SPRING, Torsion

$

$

Not available

4

Simplicity 5045637SM

SPACER, Spring

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 5042555009

ROD

$

$

Not available

6

Simplicity 5030822CSM

SPINDLE COVER

$

$

Not available

7

Simplicity 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$6.49

$

In Stock, Qty 10

0

8

Simplicity 5025158SM

WASHER, 1/2

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5025018X10SM

CAPSCREW, Hex Hd, 1/2-20 x 1-1/4

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5060078SM

GUARD HOLD DOWN, Complete (includes Ref 11-14)

$22.99

$

Usually ships in 2-12 days

0

11

Simplicity 502502116

CAPSCREW, Hex Hd, 5/16-18 x 2

$

$

Not available

12

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 5045298

SPRING, Guard Hold Down

$

$

Not available

14

Simplicity 5020979SM

CLEVIS, 5/16-24
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

15

Simplicity 50208414

PIN, Clevis

$

$

Not available

16

Simplicity 50208415

PIN, Cotter

$

$

Not available

17

Simplicity 5030820C

61" MOWER HOUSING

$

$

Not available

18

Simplicity 5025040SM

NUT, Hex, 5/8-11

$3.49

$

In Stock, Qty 11

0

19

Simplicity 5041477SM

SPACER, Blade

$6.49

$

In Stock, only 3 left!

0

20

Simplicity 5025139SM

NUT, Hex, Serrated Flange, 5/16-18

$3.49

$

In Stock, Qty 5

0

21

Simplicity 50504079

KEY, 1/4 Sq. x 2-1/2

$

$

Not available

22

Simplicity 5061033SM

SPINDLE ASSEMBLY, Complete (includes Ref 23-30)

$285.99

$

Usually ships in 2-12 days

0

23

Simplicity 5041480SM

SPINDLE SHAFT

$

$

Not available

24

Simplicity 5020864SM

SNAP RING, External

$3.99

$

In Stock, only 1 left!

0

25

Simplicity 5020866SM

SNAP RING, Internal

$5.99

$

In Stock, only 2 left!

0

26

Simplicity 5041653SM

SPINDLE WASHER, Top

$10.99

$

In Stock, only 1 left!

0

27

Simplicity 5020828SM

BEARING

$37.99

$

In Stock, only 2 left!

0

28

Simplicity 5030293

SPINDLE HOUSING

$

$

Not available

29

Simplicity 5020095SM

GREASE FITTING

$4.49

$

In Stock, only 2 left!

0

30

Simplicity 5041672SM

SPINDLE WASHER, Bottom

$16.99

$

In Stock, only 1 left!

0

31

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 5

0

32

Simplicity 5022808ASM

MOWER BLADE

$30.99

$

In Stock, Qty 17

0

33

Simplicity 5025159SM

WASHER, USS, 5/8
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 5025019X76SM

CAPSCREW, Hex Hd, 5/8-11 x 9-1/2

$15.99

$

Usually ships in 2-12 days

0
