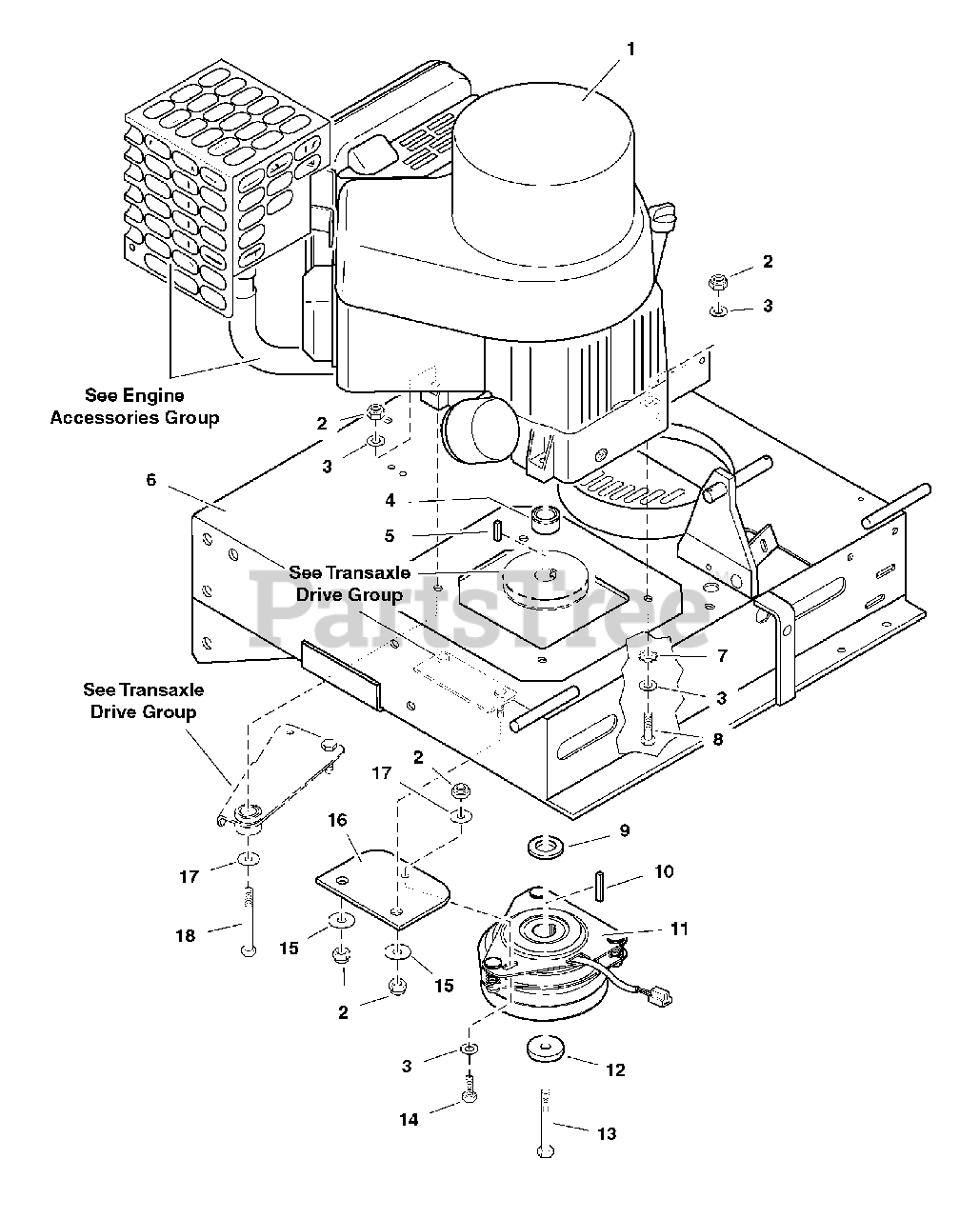

TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Engine, PTO & Engine Deck Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

Engine, PTO & Engine Deck Group Parts Diagram

  • Title

1

Simplicity 5021808

ENGINE, 20HP Briggs & Stratton, Model #351777

$

$

Not available

2

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

4

Simplicity 5043581

CRANKSHAFT SPACER

$23.99

$

Usually ships in 2-12 days

0

5

Simplicity 505040710

KEY, 1/4 Sq. x 5/8

$

$

Not available

6

Simplicity 5046181CSM

ENGINE DECK

$

$

Not available

7

Simplicity 5025188SM

WASHER, Star, 5/16

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

9

Simplicity 5043625SM

CLUTCH SPACER

$22.99

$

Usually ships in 2-12 days

0

10

Simplicity 5050407X8SM

KEY, 1/4 Sq. x 1

$4.49

$

In Stock, only 1 left!

0

11

Simplicity 5021083SM

ELECTRIC CLUTCH, PTO

$724.99

$

Usually ships in 2-12 days

0

12

Simplicity 5042132SM

WASHER, Retaining
(Superseded to 5102965YP)

$24.99

$

Usually ships in 2-12 days

0

13

Simplicity 5043626SM

CRANKSHAFT BOLT, 7/16 x 3

$9.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 5044617009

WASHER, Clutch Anchor
(Superseded to 5025305SM)

$4.49

$

In Stock, Qty 5

0

16

Simplicity 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, only 2 left!

0

17

Simplicity 5025164SM

WASHER, Fender, 5/16

$4.49

$

In Stock, only 2 left!

0

18

Simplicity 5025011X24

CAPSCREW, Hex Hd, 5/16-18 x 3
(Superseded to 5025011X24SM)

$4.49

$

Usually ships in 2-12 days

0
