TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Fuel Tank, Mount & Hydraulic Tank Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

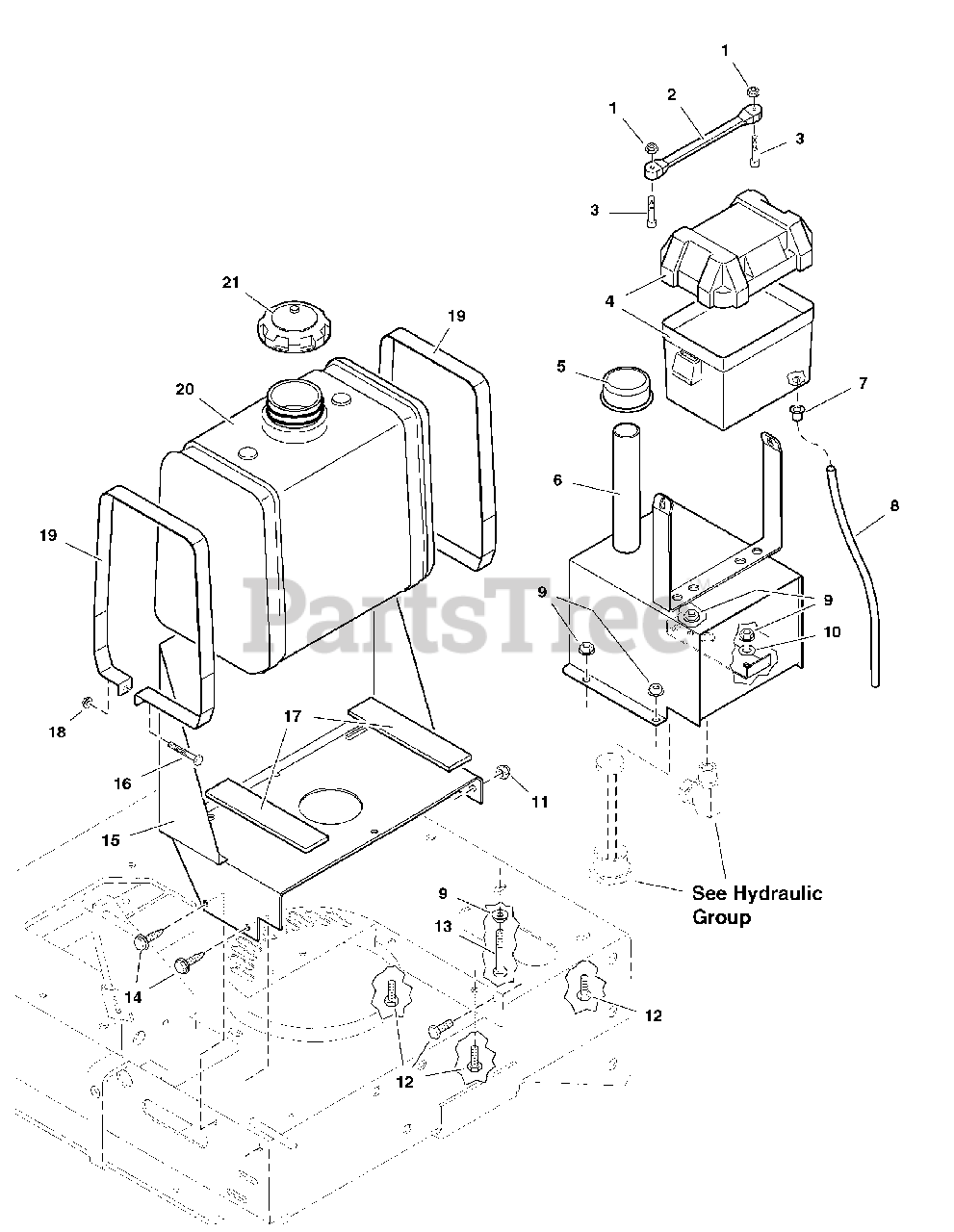

Fuel Tank, Mount & Hydraulic Tank Group Parts Diagram

  • Title

1

Simplicity 703412

NUT, Hex, Nylon Lock, #10-24

Note: (5025271)

$4.49

$

In Stock, Qty 5

0

2

Simplicity 5021670SM

RUBBER STRAP

$14.99

$

In Stock, only 1 left!

0

3

Simplicity 5025270SM

SCREW, Phillips Hd, #10-24 x 1

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 5046188SM

BATTERY BOX
(Superseded to 5100688YP)

$69.99

$

Usually ships in 2-12 days

0

5

Simplicity 5021871SM

BREATHER

$37.99

$

Usually ships in 2-12 days

0

6

Simplicity 5030789CSM

HYDRO TANK ASSEMBLY, complete (includes Ref 5, decal and fittings)

$

$

Not available

*

Simplicity 5030774CSM

HYDRO TANK

$712.99

$

Usually ships in 2-12 days

0

*

Simplicity 50211257

FOIL TAPE

$

$

Not available

7

Simplicity 5022570SM

RUBBER BUSHING

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 505090816

HOSE, 16"

$

$

Not available

9

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

10

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

11

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 5025011X14SM

CAPSCREW, Hex Hd, 5/16-18 x 1-3/4

$3.99

$

In Stock, Qty 17

0

14

Simplicity 5025059X6

CAPSCREW, Hex Hd, Self Tapping, 5/16-18 x 3/4
(Superseded to 5025059X6FS)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 5044692CSM

FUEL TANK MOUNT

$

$

Not available

16

Simplicity 502501012

CAPSCREW, Hex Hd, 1/4-20 x 1-1/4

$

$

Not available

17

Simplicity 5021877SM

RUBBER PAD

$7.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025126SM

NUT, Hex, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 10

0

19

Simplicity 5044693CSM

FUEL TANK STRAP

$

$

Not available

20

Simplicity 5410709YP

TANK, FUEL, PLASTIC, 6 GALLON, W/ FUEL LINE

$323.99

$

Usually ships in 2-12 days

0

21

Simplicity 5022158SM

FUEL TANK CAP
(Superseded to 5101651SM)

$26.99

$

Usually ships in 2-12 days

0
