TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Instrument & Control Panel Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

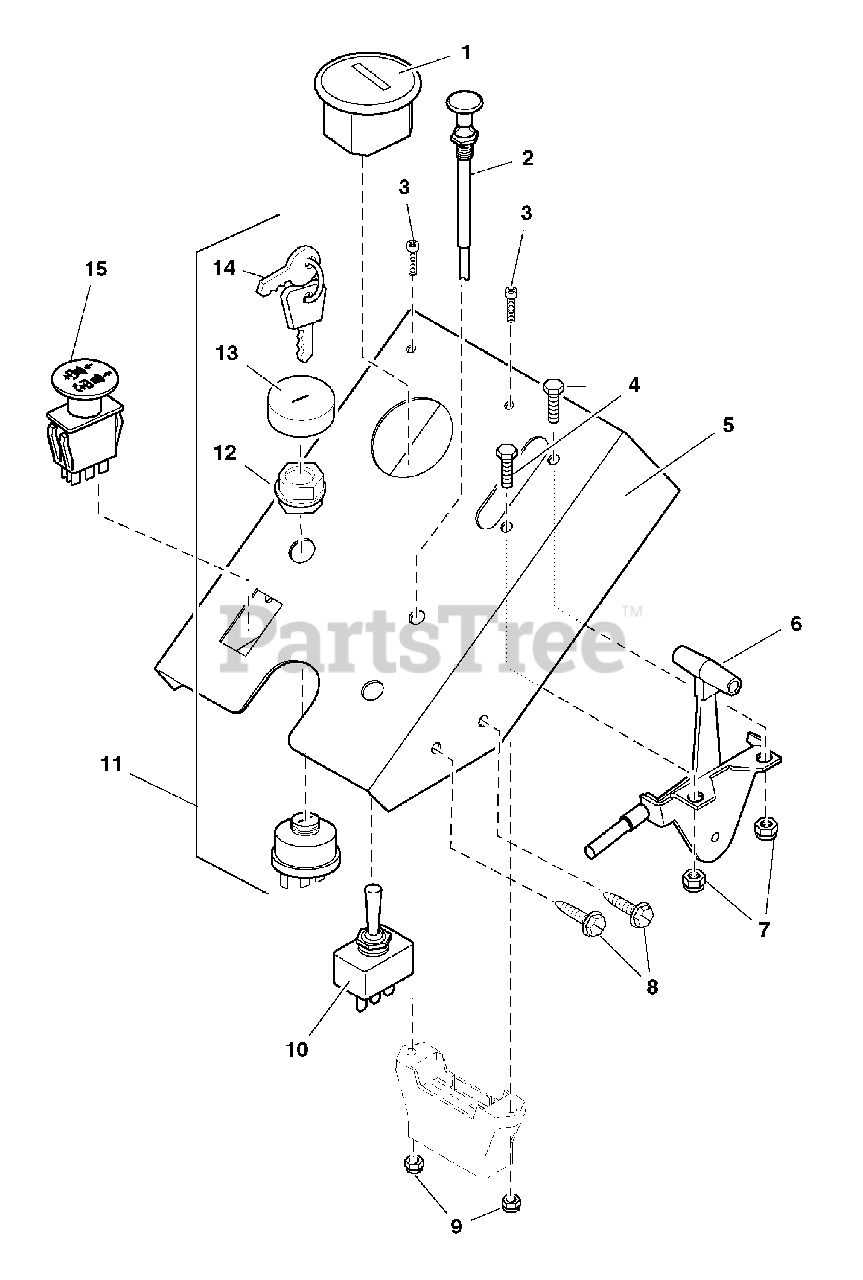

Instrument & Control Panel Group Parts Diagram

  • Title

1

Simplicity 5020060SM

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

2

Simplicity 5021675SM

CABLE, Choke Control

$63.99

$

In Stock, only 1 left!

0

3

Simplicity 5025270SM

SCREW, Phillips, #10-24 x 1

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 5025010X6SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 13

0

5

Simplicity 5045193CSM

DASH PANEL

$

$

Not available

6

Simplicity 5021662SM

CABLE, Throttle Control

$80.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, Qty 11

0

8

Simplicity 50252796

CAPSCREW, Hex Hd, Self-Tapping, 1/4-20 x 3/4

$

$

Not available

9

Simplicity 703412

NUT, Hex, Nylon Lock, #10-24

Note: (5025271)

$4.49

$

In Stock, Qty 10

0

10

Simplicity 5021734SM

SWITCH, Actuator

$52.99

$

Usually ships in 2-12 days

0

11

Simplicity 1686734SM

SWITCH, Ignition, complete (includes ref 12-14)

$32.99

$

In Stock, Qty 18

0

12

Simplicity 5022791SM

PLASTIC NUT

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1704346SM

COVER

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 1717163SM

KEY, Ignition, Molded (set of 2)

$8.99

$

In Stock, Qty 12

0

15

Simplicity 1722887SM

SWITCH, PTO

$33.99

$

In Stock, Qty 20+

0
