TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Parking Brake Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

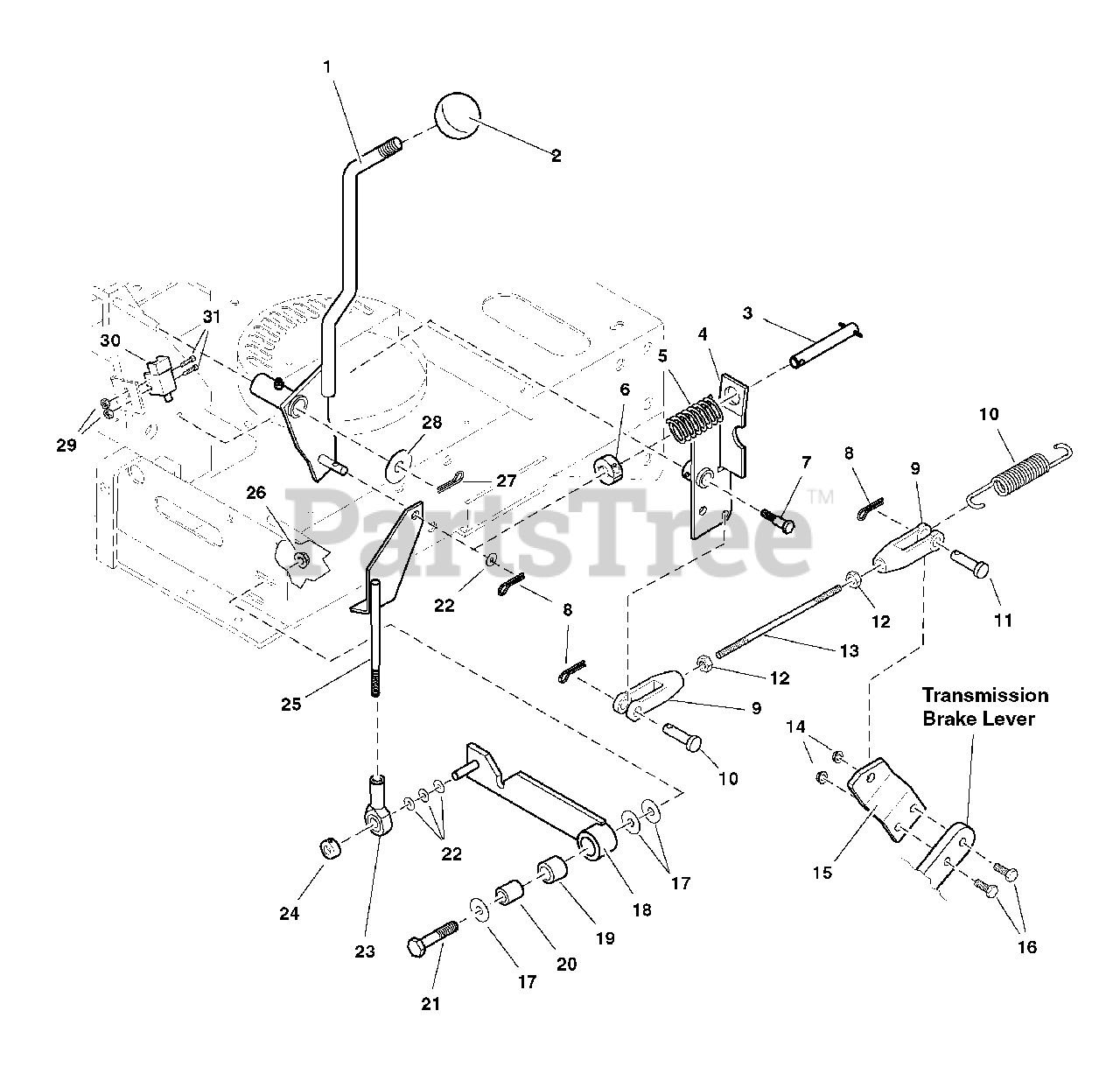

Parking Brake Group Parts Diagram

  • Title

1

Simplicity 5030919C

PARKING BRAKE LEVER

$

$

Not available

2

Simplicity 5021733SM

KNOB

$9.49

$

In Stock, only 2 left!

0

3

Simplicity 5043982

SPRING BAR ASSEMBLY

$31.99

$

Usually ships in 2-12 days

0

4

Simplicity 5043971CSM

BRAKE ROCKER ARM

$

$

Not available

5

Simplicity 5021667

SPRING, Compression

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 5010477

COLLAR, Set, 5/8
(Superseded to 5010477FS)

$17.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025223SM

CAPSCREW, Allan Head, Shoulder, 3/8-16 x 1/2 x 1

$7.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025201X6SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 5020979SM

CLEVIS. Plastic, 5/16-24
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

10

Simplicity 5022666

SPRING, Extension

$

$

Not available

11

Simplicity 5025213X8SM

PIN, Clevis

$4.99

$

In Stock, only 1 left!

0

12

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5043976009

BRAKE LINKAGE ROD

$

$

Not available

14

Simplicity 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, Qty 11

0

15

Simplicity 5043674CSM

BRAKE LEVER

$

$

Not available

16

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025164SM

WASHER, Fender, 5/16

$3.99

$

In Stock, only 1 left!

0

18

Simplicity 5042317CSM

NEUTRAL LOCK LEVER, complete (includes Ref 19)

$

$

Not available

19

Simplicity 5020876BSM

BUSHING, Brass

$11.99

$

In Stock, only 1 left!

0

20

Simplicity 5042134SM

PIVOT SLEEVE

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 502501116

CAPSCREW, Hex Hd, 5/16-18 x 2

$

$

Not available

22

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

In Stock, only 2 left!

0

24

Simplicity 5020047SM

COLLAR, Set, 5/16

$7.49

$

Usually ships in 2-12 days

0

25

Simplicity 5043972CSM

BRAKE LOCK LINK

$30.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025139SM

NUT, Hex, Serrated Flange, 5/16-18

$3.49

$

In Stock, only 2 left!

0

27

Simplicity 5025203X10SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025281SM

WASHER, 5/8

$3.99

$

In Stock, only 3 left!

0

29

Simplicity 5025029SM

NUT, Hex, #10-24

$2.99

$

Usually ships in 2-12 days

0

30

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 8

0

31

Simplicity 5025270SM

Screw, #10-24 x 1"

$3.49

$

Usually ships in 2-12 days

0
