TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Steering Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

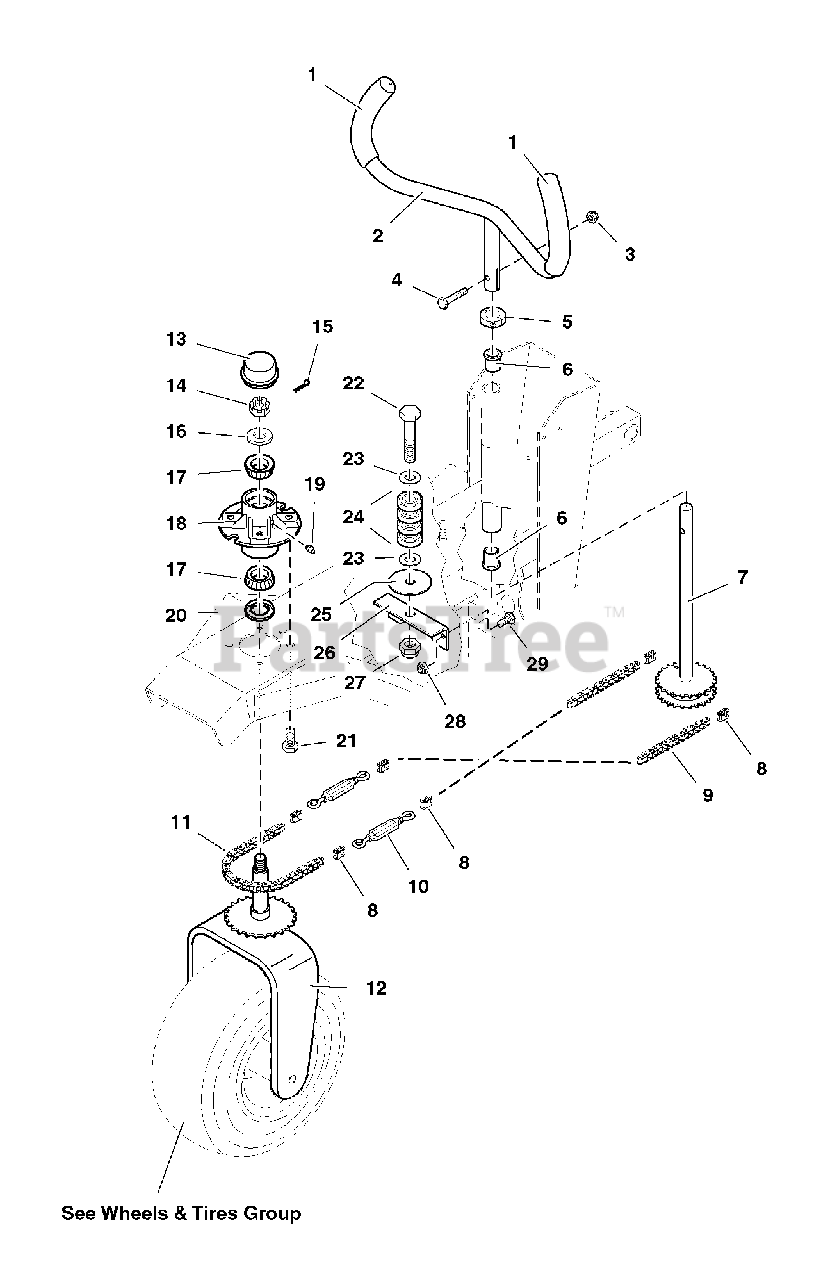

Steering Group Parts Diagram

  • Title

1

Simplicity 5020837SM

GRIP, Foam

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 5041770CSM

STEERING HANDLE

$

$

Not available

3

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

4

Simplicity 5025013X12SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5020602SM

COLLAR, 1" Split

$22.99

$

In Stock, only 1 left!

0

6

Simplicity 5020823SM

BUSHING, Flange

$10.99

$

In Stock, Qty 6

0

7

Simplicity 5042087SM

SHAFT, Steering Sprocket

$174.99

$

Usually ships in 2-12 days

0

8

Simplicity 5010674

LINK, Chain
(Superseded to 5010674SM)

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 501067331

CHAIN, Roller, 31 Links

$

$

Not available

10

Simplicity 5042090

TURNBUCKLE
(Superseded to 5042090SM)

$23.99

$

Usually ships in 2-12 days

0

11

Simplicity 501067335

CHAIN, Roller, 35 Links

$

$

Not available

12

Simplicity 5042127CSM

STEERING TIRE YOKE

$239.99

$

Usually ships in 2-12 days

0

13

Simplicity 5021073SM

CAP

$7.49

$

In Stock, Qty 7

0

14

Simplicity 5025104SM

NUT, Hex, Slotted, 3/4-16
(Superseded to 1960387SM)

$6.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025203X10SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025160SM

WASHER, 3/4

$3.99

$

In Stock, only 2 left!

0

17

Simplicity 5020884SM

BEARING, Tapered Roller

$25.99

$

In Stock, only 1 left!

0

18

Simplicity 5042110SM

HUB, Steering

$142.99

$

Usually ships in 2-12 days

0

19

Simplicity 5020095SM

GREASE FITTING

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5021072SM

SEAL, Grease

$7.49

$

Usually ships in 2-12 days

0

21

Simplicity 502501710

CAPSCREW, Hex Hd, 1/2-20 x 1-1/4

$

$

Not available

22

Simplicity 502528024

CAPSCREW, Hex Hd, 5/8-11 x 3

$

$

Not available

23

Simplicity 5025281SM

WASHER, 5/8

$3.99

$

In Stock, only 3 left!

0

24

Simplicity 5021882

BEARING
(Superseded to 5021882FS)

$11.99

$

Usually ships in 2-12 days

0

25

Simplicity 5043652

WASHER, Chain
(Superseded to 5043652FS)

$6.99

$

Usually ships in 2-12 days

0

26

Simplicity 5044627CSM

MOUNT, Chain Roller

$

$

Not available

27

Simplicity 5025282SM

NUT, Hex, Nylon Lock, 5/8-11

$

$

Not available

28

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

29

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 6

0
