TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Transaxle, Mount & Shield Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

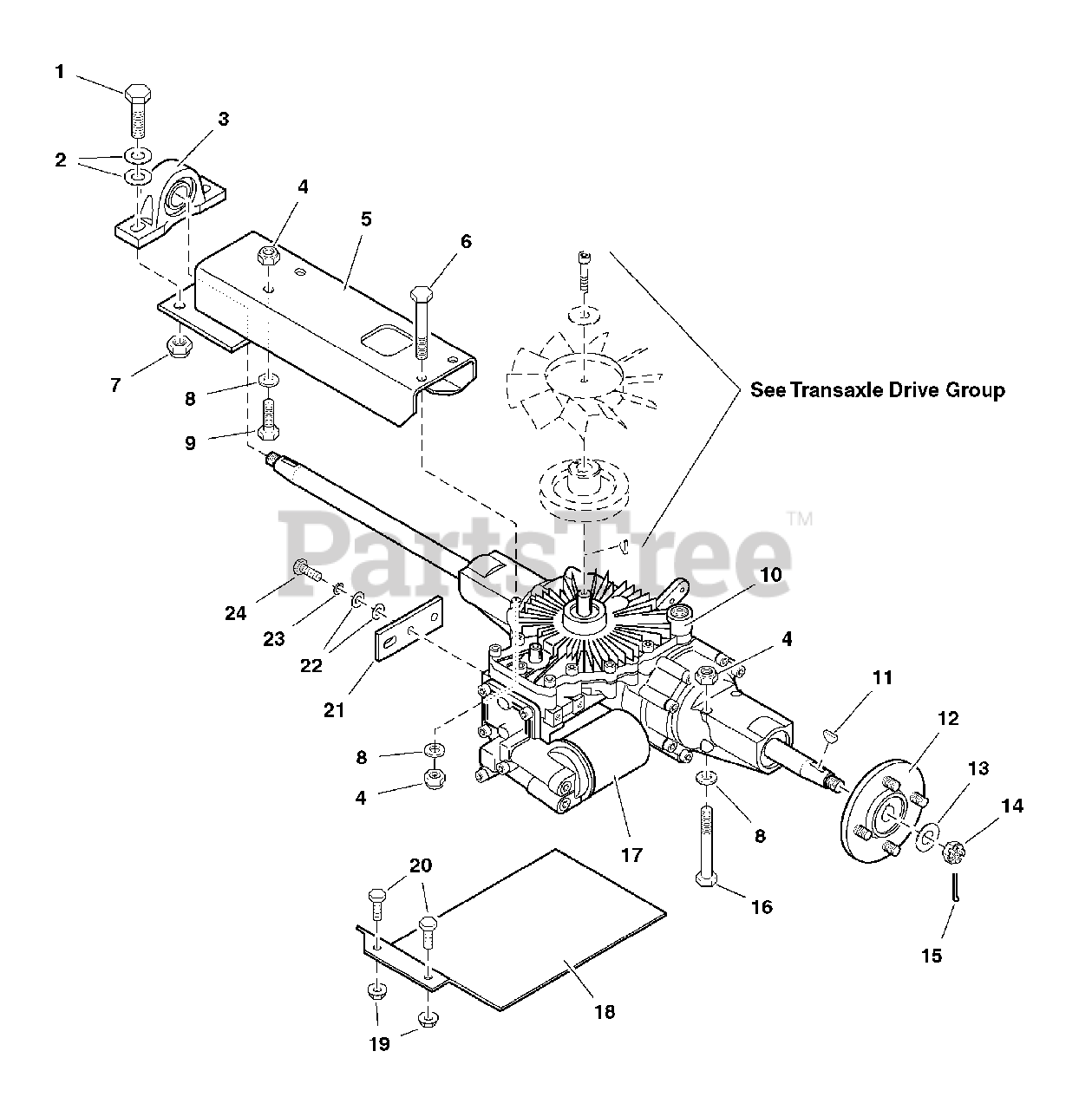

Transaxle, Mount & Shield Group Parts Diagram

  • Title

1

Simplicity 502501614

CAPSCREW, Hex Hd, 7-16-20 x 1-3/4

$

$

Not available

2

Simplicity 5025157

WASHER, 7/16
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

3

Simplicity 5010093

BEARING, Pillow Block
(Superseded to 5021095SM)

$75.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 10

0

5

Simplicity 5043675CSM

AXLE SUPPORT

$

$

Not available

6

Simplicity 5025013X24SM

CAPSCREW, Hex Hd, 3/8-16 x 3

$3.99

$

In Stock, Qty 5

0

7

Simplicity 5025094

NUT, Hex, Nylon Lock, 7/16-20
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 5025293

WASHER, 3/8, GD.9
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

9

Simplicity 5025013X10SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

$3.99

$

In Stock, only 3 left!

0

10

Simplicity 5022164SM

HYDROSTATIC TRANSAXLE, complete (includes Ref 16,19 & 22)

$3648.99

$

Usually ships in 2-12 days

0

11

Simplicity 5022184

KEY, Woodruff
(Superseded to 5022184SM)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 5022165

HUB, 4-Bolt Tapered
(Superseded to 5022165SM)

$80.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025160SM

WASHER, 3/4

$3.99

$

In Stock, only 3 left!

0

14

Simplicity 5022183

NUT, Hex Slotted

$21.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025203X10SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025013X28SM

CAPSCREW, Hex Hd, 3/8-16 x 3-1/2

$4.99

$

In Stock, only 2 left!

0

17

Simplicity 5021068X1SM

FILTER

$50.99

$

In Stock, only 1 left!

0

18

Simplicity 5044616CSM

SKID PLATE

$

$

Not available

19

Simplicity 5025139SM

NUT, Hex, Serrated Flange, 5/16-18

$3.49

$

In Stock, only 2 left!

0

20

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 6

0

21

Simplicity 5042177CSM

BRACKET, Transmission Support

$

$

Not available

22

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5025170SM

WASHER, Lock, 5/16

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0
