TW 2061 - Simplicity Morgan 3-Wheel 61" Riding Mower, 20hp Kohler (SN: 1078 & Above) Wheels & Tires Group Parts Diagram

Morgan 3-Wheel 61" Riding Mower, 20hp Kohler

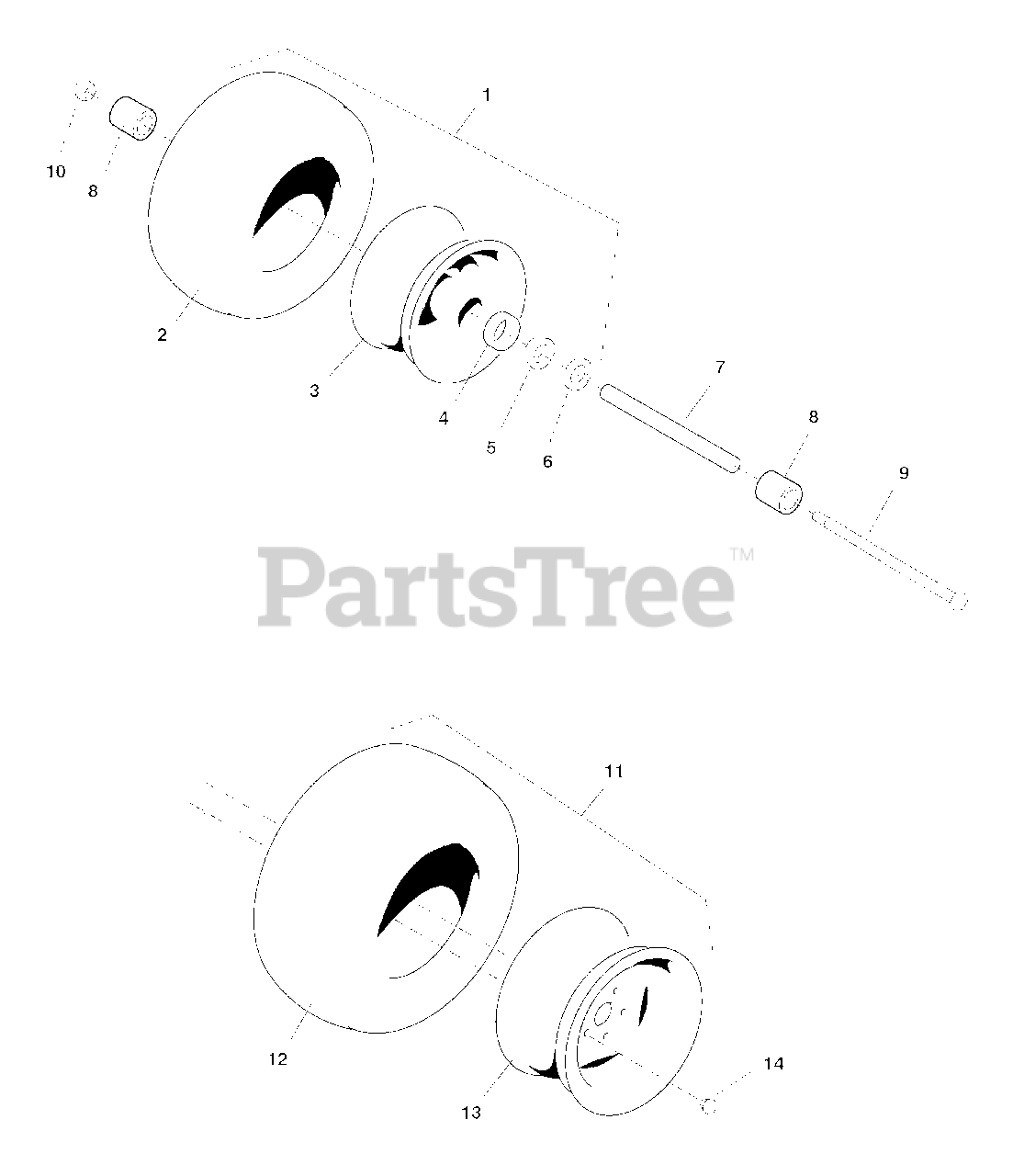

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 5021150SSM

WHEEL & TIRE ASSEMBLY, 18 x 7.5 x 8, Complete (includes Ref 2 - 6)

$385.99

$

In Stock, only 1 left!

0

2

Simplicity 5021215

TIRE, Rear, 18 x 7.5 x 8
(Superseded to 5021215YP)

$236.99

$

Usually ships in 2-12 days

0

3

Simplicity 5021216S

WHEEL ASSEMBLY, 8 x 3.75, Complete (includes Ref 4 - 6)

$

$

Not available

4

Simplicity 5020883

BEARING CUP

$8.99

$

Usually ships in 2-12 days

0

5

Simplicity 5020884SM

BEARING

$25.99

$

In Stock, only 4 left!

0

6

Simplicity 5020885SM

GREASE SEAL
(Superseded to 5021072SM)

$7.49

$

Usually ships in 2-12 days

0

7

Simplicity 5042314

STEERING TIRE AXLE
(Superseded to 5042314SM)

$39.99

$

Usually ships in 2-12 days

0

8

Simplicity 5042315

SPACER, 1.01 X 1.25 X 2.06
(Superseded to 5042315SM)

$21.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025019X76SM

CAPSCREW, Hex Hd, 5/8-11 x 9-1/2

$15.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025103

NUT, Hex, Side Lock, /8-11
(Superseded to 5025103SM)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5021094S

WHEEL & TIRE ASSEMBLY, 20 x 10 x 8, Complete (Includes Ref 12 & 13)

$248.99

$

Usually ships in 2-12 days

0

12

Simplicity 5021204

TIRE, 20 x 10 x 8

$174.99

$

Usually ships in 2-12 days

0

13

Simplicity 5021205S

WHEEL ASSEMBLY, 8 x 7

$94.99

$

Usually ships in 2-12 days

0

14

Simplicity 5020601SM

LUG NUT

$3.49

$

In Stock, Qty 9

0
