Twist'n Edge - Weed Eater String Trimmer, Type 3 Power Unit Type 3 Parts Diagram

String Trimmer, Type 3

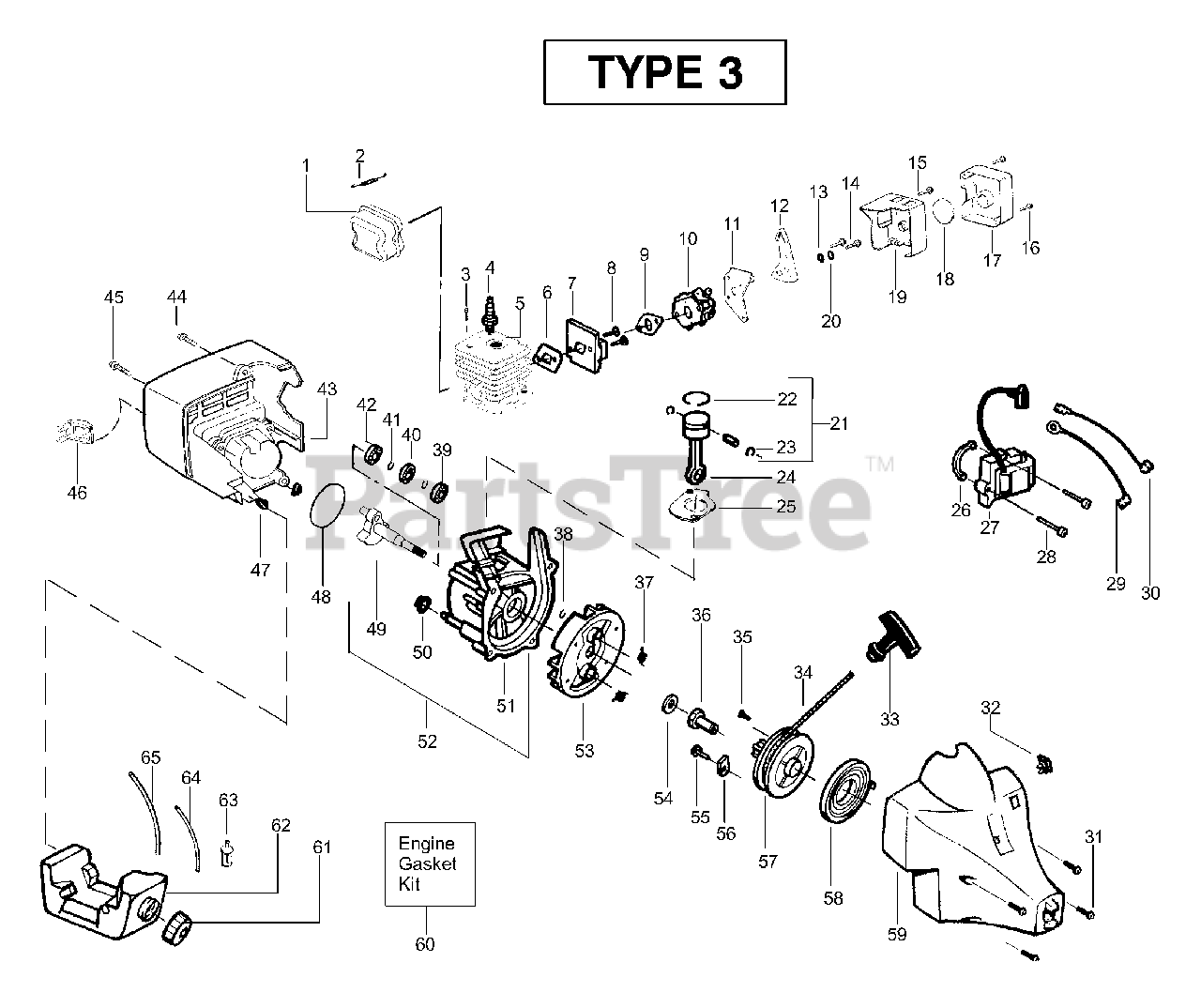

Power Unit Type 3 Parts Diagram

  • Title

1

Poulan 530071396

Kit - Muffler

Note: (incl. 2 & spark arrestor screen)

$

$

Not available

2

Poulan 530042088

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

4

Poulan 952030249

Spark Plug (RCJ 6Y)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 530071359

Kit - Cylinder
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

6

Poulan 530071363

Gasket-Cyl/Carb.(kit)

$9.99

$

Usually ships in 3-10 days

0

7

Poulan 530055535

Adaptor-carb.

$

$

Not available

8

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

9

Poulan 530071363

Gasket-Carb.(kit)

$9.99

$

Usually ships in 3-10 days

0

10

Poulan 530069754

Kit - Carburetor Ass'y

Note: (Incl. Limiter Cap)

$

$

Not available

11

Poulan 530047914

Plate-Choke Mounting

$

$

Not available

12

Poulan 530047916

Lever-Choke

$

$

Not available

13

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

14

Poulan 530016353

Screw

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530016141

Screw

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530049079

Cover-Air Box

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530047932

Foam-Air Filter

$4.99

$

In Stock, Qty 12

0

19

Poulan 530047908

Box-Air

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

21

Poulan 530071357

Kit - Piston
(Superseded to 530071833)

Note: (Incl. 22, 23 & Pin)

$37.99

$

In Stock, only 1 left!

0

22

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

23

Poulan 530015162

Retainer-Piston Pin

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

25

Poulan 530071363

Gasket-Cylinder(kit)

$9.99

$

Usually ships in 3-10 days

0

26

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

27

Poulan 530055160

Ignition Module

$46.99

$

Usually ships in 3-10 days

0

28

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530049389

Assy-Ground Wire

$

$

Not available

30

Poulan 530049390

Assy-Leadwire

$

$

Not available

31

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

32

Poulan 530071356

Kit-Momentary Switch

$8.99

$

Usually ships in 3-10 days

0

33

Poulan 530027569

Handle-Starter

$6.49

$

In Stock, only 2 left!

0

34

Poulan 530069232

Kit - Rope

$7.49

$

In Stock, Qty 20+

0

35

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

36

Poulan 530027953

Coupling-Drive

$

$

Not available

37

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

38

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 530032124

Bearing-Outer

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 530019179

Seal-C'case

$7.49

$

Usually ships in 3-10 days

0

41

Poulan 530015945

Retainer Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

43

Poulan 530049233

Shroud

$

$

Not available

44

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

45

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

46

Poulan 530054536

Guard-Muffler

$

$

Not available

47

Poulan 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

48

Poulan 530071363

O-Ring-C'case(kit)

$9.99

$

Usually ships in 3-10 days

0

49

Poulan 530054753

Assy-Crankshaft

$36.99

$

Usually ships in 3-10 days

0

50

Poulan 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

51

Poulan 530012414

Assy-Crankcase
(Superseded to 530071627)

Note: (Incl. 39-42)

$26.99

$

Usually ships in 3-10 days

0

52

Poulan 530071360

Assy-C'case & C'shaft

Note: (Incl. 38,49,51)

$

$

Not available

53

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

54

Poulan 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0

55

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

56

Poulan 530016226

Retainer-Can

$

$

Not available

57

Poulan 530069400

Kit-Starter Pulley
(Superseded to 530071786)

Note: (Incl. 35)

$7.49

$

In Stock, Qty 12

0

58

Poulan 530042086

Spring-Starter
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

59

Poulan 530049468

Assy-Fan Housing

$19.99

$

Usually ships in 3-10 days

0

60

Poulan 530071363

Kit-Engine Gasket

Note: (Incl. 6,9,25,48)

$9.99

$

Usually ships in 3-10 days

0

61

Poulan 530014347

Assy-Fuel Cap

$8.99

$

In Stock, Qty 5

0

62

Poulan 530049299

Assy-Fuel Tank

Note: (Incl. cap,filter,lines)

$

$

Not available

63

Poulan 530095646

Assy-Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

64

Poulan 530069247

Kit-Fuel Line

$6.49

$

In Stock, Qty 20+

0

65

Poulan 530069216

Kit-Fuel Line

$6.49

$

In Stock, Qty 20+

0
