TX 110ER - Husqvarna TX 11 Sleeve Hitch (1997-01) GTV Sleeve Hitch Parts Diagram

TX 11 Sleeve Hitch

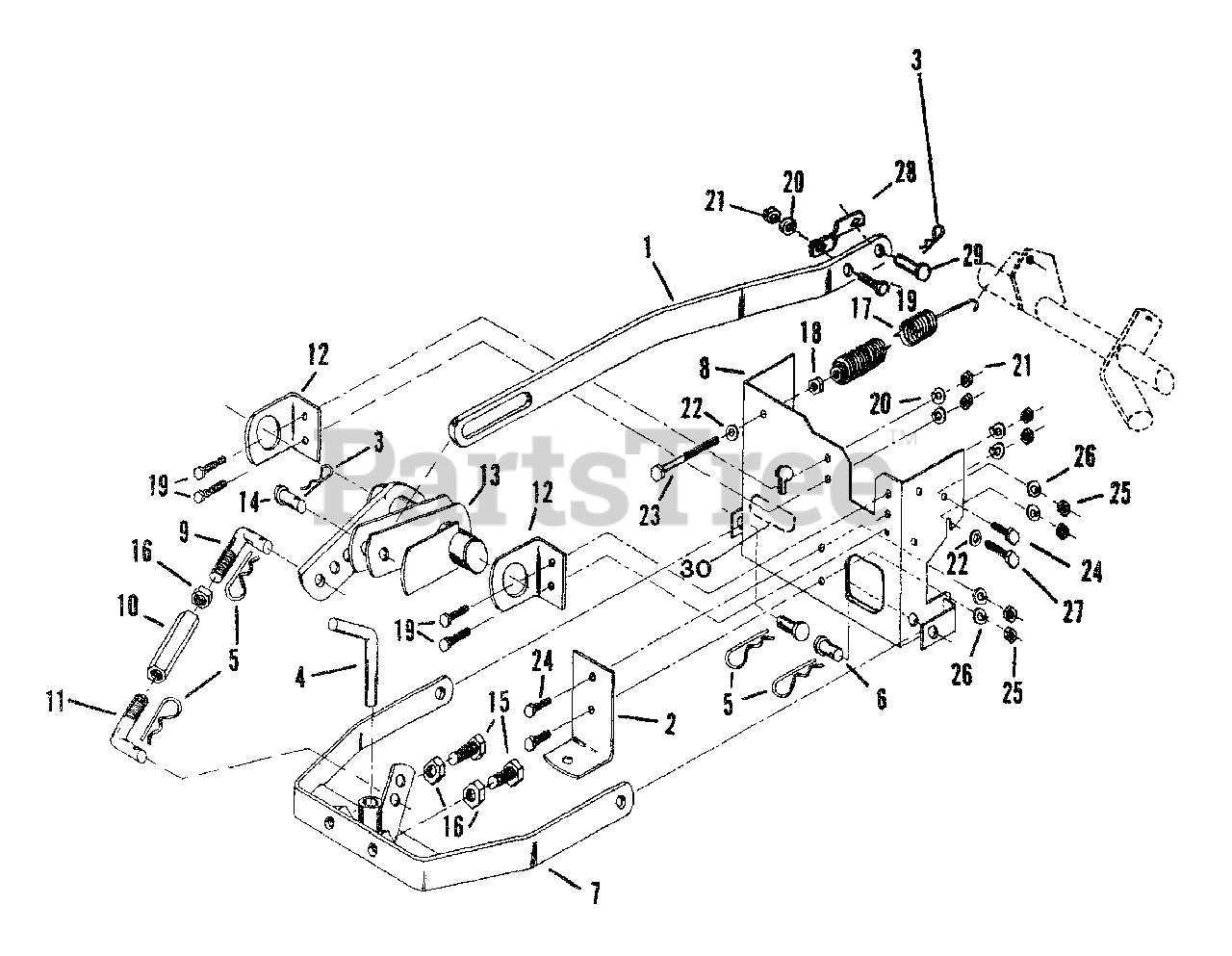

GTV Sleeve Hitch Parts Diagram

  • Title

1

Husqvarna 124317X

Draw Strap

$

$

Currently unavailable

2

Husqvarna 123592

Draw Bar

$

$

Currently unavailable

3

Husqvarna 4939M

Retaining Spring (Small)

$

$

Not available

4

Husqvarna 8320J

Hitch Pin

$

$

Not available

5

Husqvarna 4940M

Retaining Spring (Large)

$

$

Not available

6

Husqvarna 4101J

Clevis Pin 5/8" x 1-1/2"
(Superseded to 583746001)

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 110166X

Bail Assembly

$

$

Currently unavailable

8

Husqvarna H73210

Hitch Bracket

$

$

Currently unavailable

9

Husqvarna 5780J

Lift Link (R.H.) Long

$

$

Currently unavailable

10

Husqvarna 8333J

Turnbuckle

$

$

Currently unavailable

11

Husqvarna 5779J

Lift Link (L.H.) Short

$

$

Currently unavailable

12

Husqvarna 5778J

Pivot Bracket

$

$

Currently unavailable

13

Husqvarna 124314X

Lift Arm Assembly

$

$

Currently unavailable

14

Husqvarna 5781J

Clevis Pin 1/2" x 1-1/4"

$

$

Currently unavailable

15

Husqvarna 74931048

Hex Bolt 5/8"-11 x 3" (Full TH'D)

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 73221000

Hex Nut 5/8"-11
(Superseded to 873221000)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 123591X

Lift Assist Spring

$

$

Currently unavailable

18

Husqvarna 73350600

Hex Jam Nut 3/8"-16

$

$

Not available

19

Husqvarna 74760516

Hex Bolt 5/16"-18 x 1"

$

$

Not available

20

Husqvarna 10040500

Lock Washer 5/16"
(Superseded to 810040500)

$3.99

$

In Stock, Qty 18

0

21

Husqvarna 73220500

Hex Nut 5/16"-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 19131316

Washer 3/8"
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 5328J

Spring Assist Adjust Bolt 3/8" x 5-1/2"
(Superseded to 532005328)

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 74760616

Hex Bolt 3/8" x 1"

$

$

Not available

25

Husqvarna 73680600

Hex Nut 3/8"-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 10040600

Lock Washer 3/8"
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 74760620

Hex Bolt 3/8" x 1-1/4"

$

$

Not available

28

Husqvarna H73510

Draw Strap Clevis

$

$

Currently unavailable

29

Husqvarna H709

Clevis Pin 3/8" x 1-1/8"

$

$

Currently unavailable

30

Husqvarna H734

Instructions Label

$

$

Currently unavailable
