U 1000 E (579247401) - Poulan Pro Edger Attachment (2011-09) ATTACHMENTS Parts Diagram

Edger Attachment

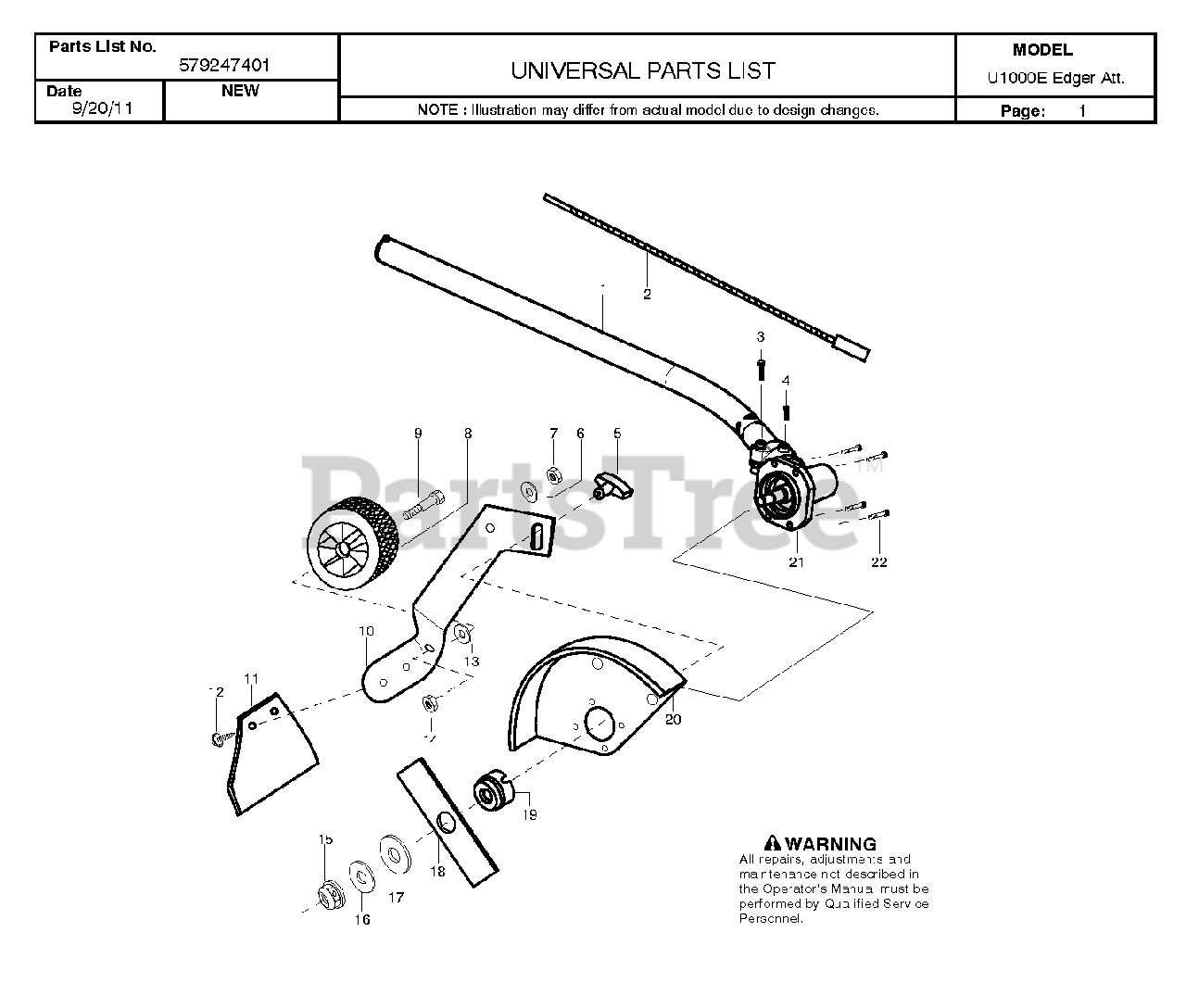

ATTACHMENTS Parts Diagram

  • Title

1

Poulan 579266601

DRIVE SHAFT KIT ASSY

$20.99

$

Usually ships in 3-10 days

0

2

Poulan 530096183

FLEXSHAFT

$

$

Not available

3

Poulan 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

4

Poulan 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530092059

KNOB

$9.99

$

In Stock, only 1 left!

0

6

Poulan 530092062

WASHER

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530015515

LOCKNUT

$4.99

$

In Stock, only 1 left!

0

8

Poulan 530095125

WHEEL-4"(FRONT)(RUBBER)

$8.99

$

In Stock, only 1 left!

0

9

Poulan 530015981

BOLT-SHOULDER AXLE

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 530053009

WHEEL BRKT ADJ

$12.99

$

Usually ships in 3-10 days

0

11

Poulan 530071251

KIT MUD FLAP

Note: . 12

$7.49

$

In Stock, only 1 left!

0

12

Poulan 530053012

FASTENER MUD FLAP

$3.99

$

In Stock, only 1 left!

0

13

Poulan 530092062

WASHER

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530015515

LOCKNUT

$4.99

$

In Stock, only 1 left!

0

15

Poulan 530015793

NUT-FLANGE (LH)

$6.49

$

In Stock, Qty 10

0

16

Poulan 530016240

WASHER BELLVILLE

$6.49

$

In Stock, Qty 5

0

17

Poulan 530015792

WASHER-FLAT.

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530053007

BLADE

$4.99

$

In Stock, only 2 left!

0

19

Poulan 530054623

DUST CUP

$10.99

$

In Stock, only 1 left!

0

20

Poulan 530071930

KIT,EDGER GUARD

$21.99

$

Usually ships in 3-10 days

0

21

Poulan 530071586

GEARBOX

Note: . 3 4 19 22

$

$

Not available

22

Poulan 530016312

SCR 10-24 MS LDK PAN PH

$6.49

$

In Stock, Qty 6

0

Poulan 115453127

MANUAL OPERATORS

Note: NOT SHOWN

$

$

Not available

Poulan 525392401

DECAL,SHAFT WARNING

Note: NOT SHOWN

$2.49

$

Usually ships in 3-10 days

0

Poulan 545074501

DECAL WARNING GUARD

Note: NOT SHOWN

$

$

Not available

Poulan 530150031

HANGER,ATTACHMENT

Note: NOT SHOWN

$4.99

$

In Stock, only 4 left!

0
