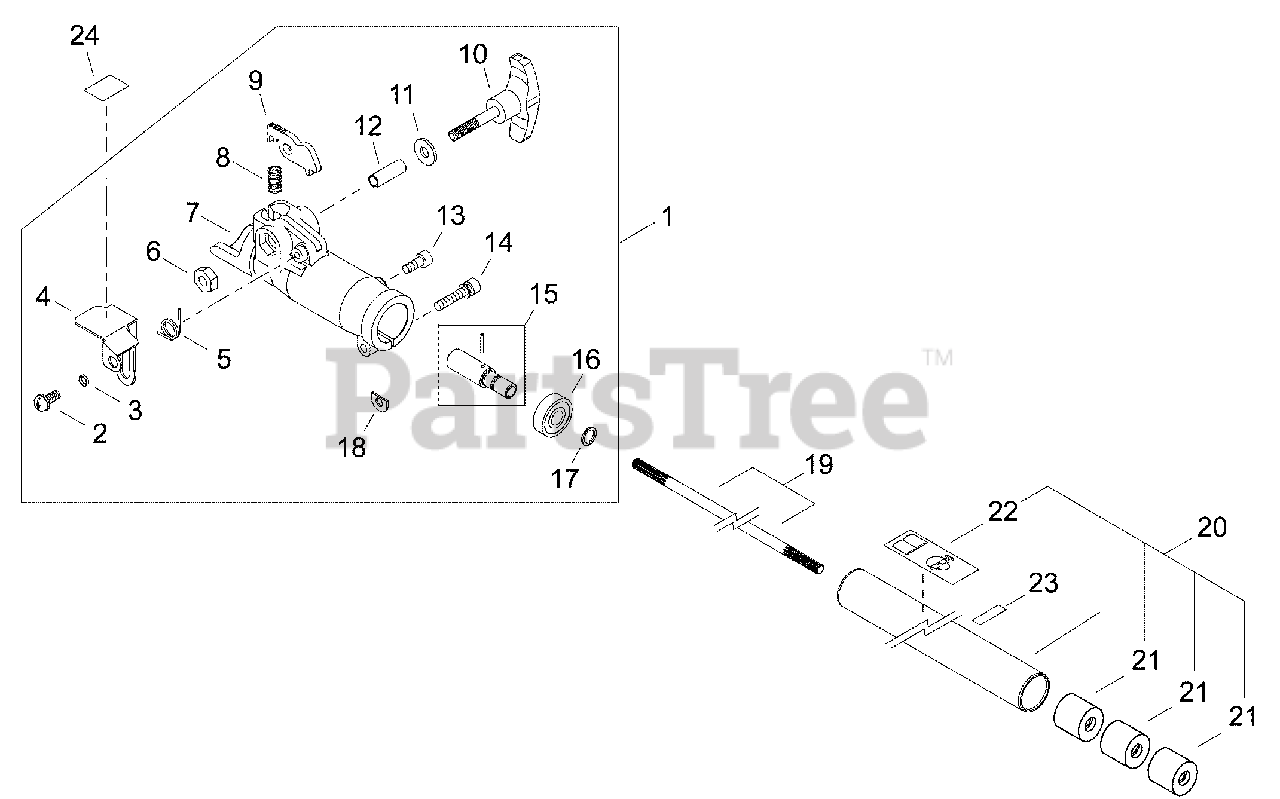

U 3000 - Swisher Multi-Tool Coupler, Outer Tube Parts Diagram

Multi-Tool

Coupler, Outer Tube Parts Diagram

  • Title

1

Echo 63880-64350

COUPLER ASSY
(Superseded to P021028870)

$138.99

$

Usually ships in 2-4 days

0

2

Echo 11207-05120

SCREW M5×12
(Superseded to 9157705012)

$1.49

$

In Stock, only 4 left!

0

3

Echo 15401-00004

WASHER 5
(Superseded to V353000330)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 37000-62340

PROTECTOR, LATCH
(Superseded to C516000020)

$5.99

$

Usually ships in 2-4 days

0

5

Echo 17520-12400

SPRING, TORSION
(Superseded to V452000510)

$1.49

$

In Stock, only 3 left!

0

6

Echo 63880-64410

NUT 6
(Superseded to V264000120)

$1.49

$

In Stock, Qty 9

0

7

Echo 37000-62220

HOUSING, COUPLER
(Superseded to C510000200)

$37.99

$

Usually ships in 2-4 days

0

8

Echo 17500-06001

SPRING
(Superseded to V450000860)

$1.49

$

In Stock, Qty 5

0

9

Echo 37000-62310

LATCH
(Superseded to C661000050)

$16.99

$

In Stock, only 2 left!

0

10

Echo 63880-64380

KNOB, COUPLER SCREW
(Superseded to V299000350)

$7.49

$

In Stock, Qty 5

0

11

Echo 72030-14130

WASHER 6
(Superseded to V304000160)

$1.49

$

In Stock, Qty 7

0

12

Echo 17901-06220

COLLAR
(Superseded to V354000260)

$1.49

$

In Stock, only 4 left!

0

13

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

14

Echo 11023-05250

BOLT M5×25
(Superseded to V203000560)

$1.99

$

In Stock, only 3 left!

0

15

Echo 63880-64360

SHAFT, COUPLER
(Superseded to P021028880)

$37.99

$

In Stock, only 3 left!

0

16

Echo 02002-00609

BEARING, BALL 609ZZ
(Superseded to 90080400609)

$18.99

$

In Stock, only 2 left!

0

17

Echo 22420-13350

RING, SNAP
(Superseded to V582000130)

$1.49

$

In Stock, Qty 17

0

18

Echo 22000-13420

D-WASHER
(Superseded to V340000300)

$1.49

$

In Stock, Qty 6

0

19

Echo 63880-64340

MAINSHAFT
(Superseded to C504000550)

$22.99

$

In Stock, only 3 left!

0

MAIN PIPE ASSY

$

$

Not available

21

Echo 22035-12121

BUSHING
(Superseded to C501000010)

$4.99

$

Usually ships in 2-4 days

0

22

Echo 19402-00303

LABEL, CAUTION
(Superseded to X505003490)

$3.99

$

Usually ships in 2-4 days

0

23

Echo 19401-00269

LABEL, HANDLE
(Superseded to X505002850)

$1.49

$

In Stock, only 1 left!

0

24

Echo 19401-00168

LABEL, LATCH INSTRUCTION
(Superseded to X505002880)

$1.49

$

In Stock, Qty 8

0
