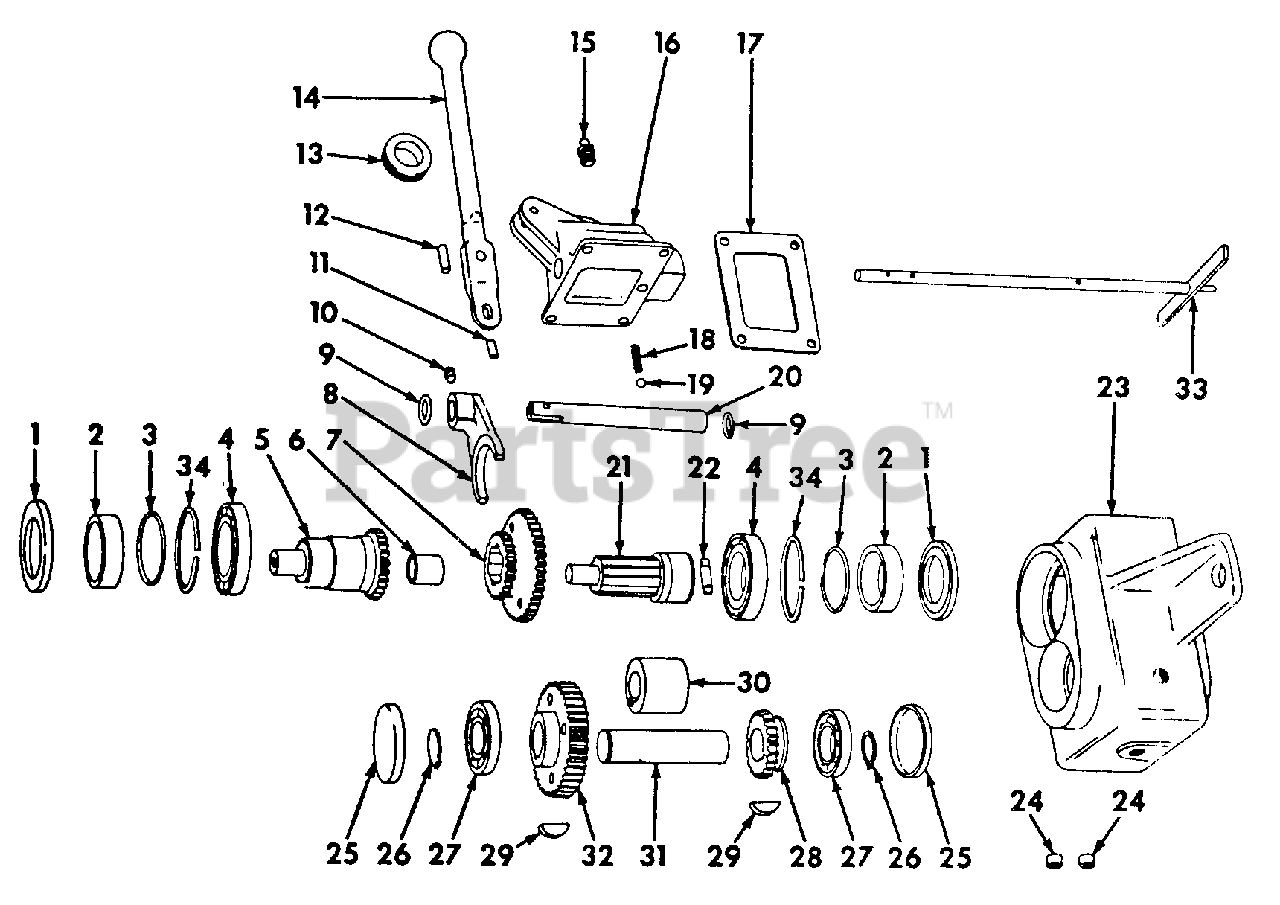

UD-6 - Cub Cadet Underdrive for Danco Underdrive -UD-6- Intrntnl Dancoud-6-Blt 1961 & Since Cub Trctrs Parts Diagram

Underdrive for Danco

Underdrive -UD-6- Intrntnl Dancoud-6-Blt 1961 & Since Cub Trctrs Parts Diagram

  • Title

1

Cub Cadet IH-475625-R91

Seal, Oil

$

$

Currently unavailable

2

Cub Cadet IH-475624-R1

Collar

$

$

Currently unavailable

3

Cub Cadet IH-377028-R1

O-Ring, 1 X 1-1/8 X 1/16

$

$

Currently unavailable

4

Cub Cadet IH-475626-R91

Bearing Assy, Ball

$

$

Currently unavailable

5

Cub Cadet IH-475616-R91

Shaft w/Gear & Needle Bearing Input

$

$

Currently unavailable

6

Cub Cadet IH-252941-R91

Bearing, Needle

$

$

Currently unavailable

7

Cub Cadet IH-475617-R1

Gear, Step

$

$

Currently unavailable

8

Cub Cadet IH-475629-R1

Fork, Shifter

$

$

Currently unavailable

9

Cub Cadet IH-252739-R1

O-Ring, 1/2 X 11/16 X 3/32

$

$

Not available

10

Cub Cadet IH-102569

Screw, 1/4-20 X 1/4 Hex-Soc-Hd Set

$

$

Currently unavailable

11

Cub Cadet IH-19801-R1

Pin, 3/16 X 3/4 Hv-Coiled Spring

$

$

Currently unavailable

12

Cub Cadet IH-19756-R1

Pin, 3/16 X 1/2 Hv-Coiled Spring

$

$

Not available

13

Cub Cadet IH-71198-H

Grommet

$

$

Currently unavailable

14

Cub Cadet IH-475633-R1

Lever, Gear Shift

$

$

Currently unavailable

15

Cub Cadet IH-13019-R1

Plug, Breather

$

$

Currently unavailable

16

Cub Cadet IH-475639-R91

Cap w/O-Ring, Shifter

$

$

Currently unavailable

Cub Cadet IH-180016

Screw, 1/4-IO X 1/2 C-Z Hex-Hd

$

$

Currently unavailable

Cub Cadet IH-120380

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-252739-R1

O-Ring, 1/2 X 11/16 Class 5

$

$

Not available

17

Cub Cadet IH-475632-R1

Gasket

$

$

Currently unavailable

18

Cub Cadet IH-475631-R1

Spring, Poppet Ball

$

$

Currently unavailable

19

Cub Cadet IH-17008-R1

Ball, 1/4 Steel

$

$

Not available

20

Cub Cadet IH-475630-R1

Rod Shifter

$

$

Currently unavailable

21

Cub Cadet IH-475621-R1

Shaft, Output

$

$

Currently unavailable

22

Cub Cadet IH-475622-R1

Pin, Drive

$

$

Currently unavailable

23

Cub Cadet IH-475614-R91

Box W/Plugs, Gear

$

$

Currently unavailable

Cub Cadet IH-180177

Screw, 1/2-13 X 1-1/2 Hex-Hd

$

$

Currently unavailable

24

Cub Cadet IH-444687

Plug, 1/8-27 Automotive Hex-Soc-Hd Pipe

$

$

Currently unavailable

25

Cub Cadet IH-475615-R1

Plug, Expansion

$

$

Currently unavailable

26

Cub Cadet IH-269181-R1

Ring, Retainer
(Superseded to 916-0101)

$3.49

$

In Stock, Qty 7

0

27

Cub Cadet IH-475628-R91

Bearing Assy, Ball

$

$

Not available

28

Cub Cadet IH-475619-R1

Gear -24 T

$

$

Currently unavailable

29

Cub Cadet IH-124549

Key, 3/16 X 3/4 Woodruff 9
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

30

Cub Cadet IH-475620-R1

Spacer

$

$

Currently unavailable

31

Cub Cadet IH-475623-R1

Shaft, Lower

$

$

Currently unavailable

32

Cub Cadet IH-475618-R1

Gear -40T

$

$

Currently unavailable

33

Cub Cadet IH-475634-R91

Shaft Assy, Clutch

$

$

Currently unavailable

34

Cub Cadet IH-512969-R1

Ring, Upper Shaft Brg Snap

$

$

Currently unavailable
