Ultra 52 (966690601) - Dixon 52" Ultra Zero-Turn Mower (2011-05) ELECTRICAL Parts Diagram

52" Ultra Zero-Turn Mower

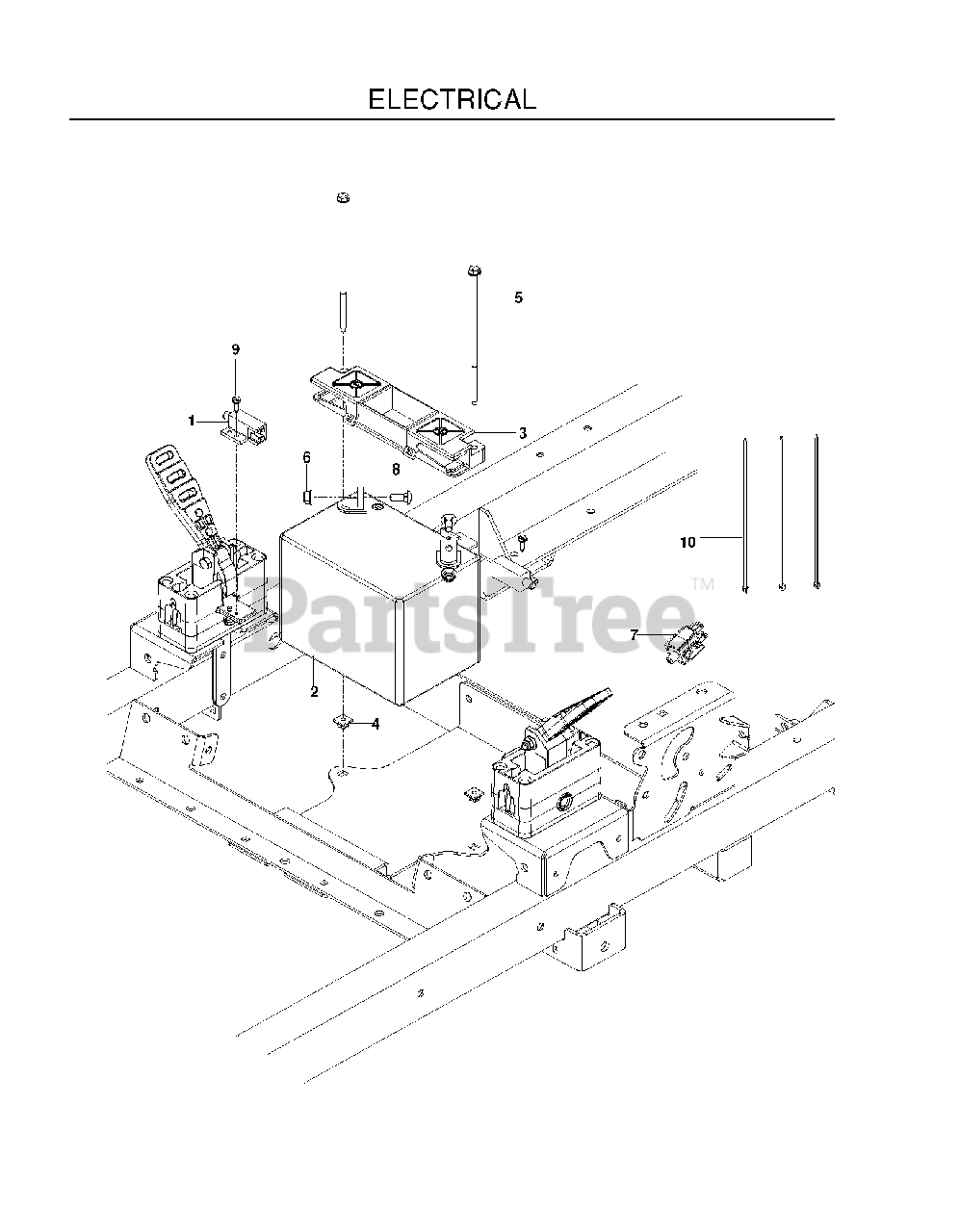

ELECTRICAL Parts Diagram

  • Title

1

Dixon 539101080

SWITCH, INTERLOCK

$20.99

$

In Stock, only 1 left!

0

2

Dixon 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

3

Dixon 539107628

BATTERY HOLD DOWN

$6.99

$

In Stock, only 2 left!

0

4

Dixon 539107629

PUSH NUT-NYLON

$3.49

$

In Stock, only 1 left!

0

5

Dixon 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

6

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

7

Dixon 539113792

SWITCH, BRAKE 3P

$22.99

$

In Stock, Qty 20+

0

8

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

9

Dixon 539991034

SCREW #10 X 1/2 SELF TAPPING

$

$

Not available

10

Dixon 539976856

TIE, PLASTIC

$6.99

$

Usually ships in 3-10 days

0

Dixon 539104974

POST.CABLE LONG

Note: NOT SHOWN

$

$

Not available

Dixon 539107645

NEG. CABLE, 28"

Note: NOT SHOWN

$

$

Not available

Dixon 575320901

HARNESS, MAIN

Note: NOT SHOWN

$227.99

$

Usually ships in 3-10 days

0
