Ultra 52 BF (966690602) - Dixon 52" Ultra Zero-Turn Mower (2011-05) IGNITION SYSTEM Parts Diagram

52" Ultra Zero-Turn Mower

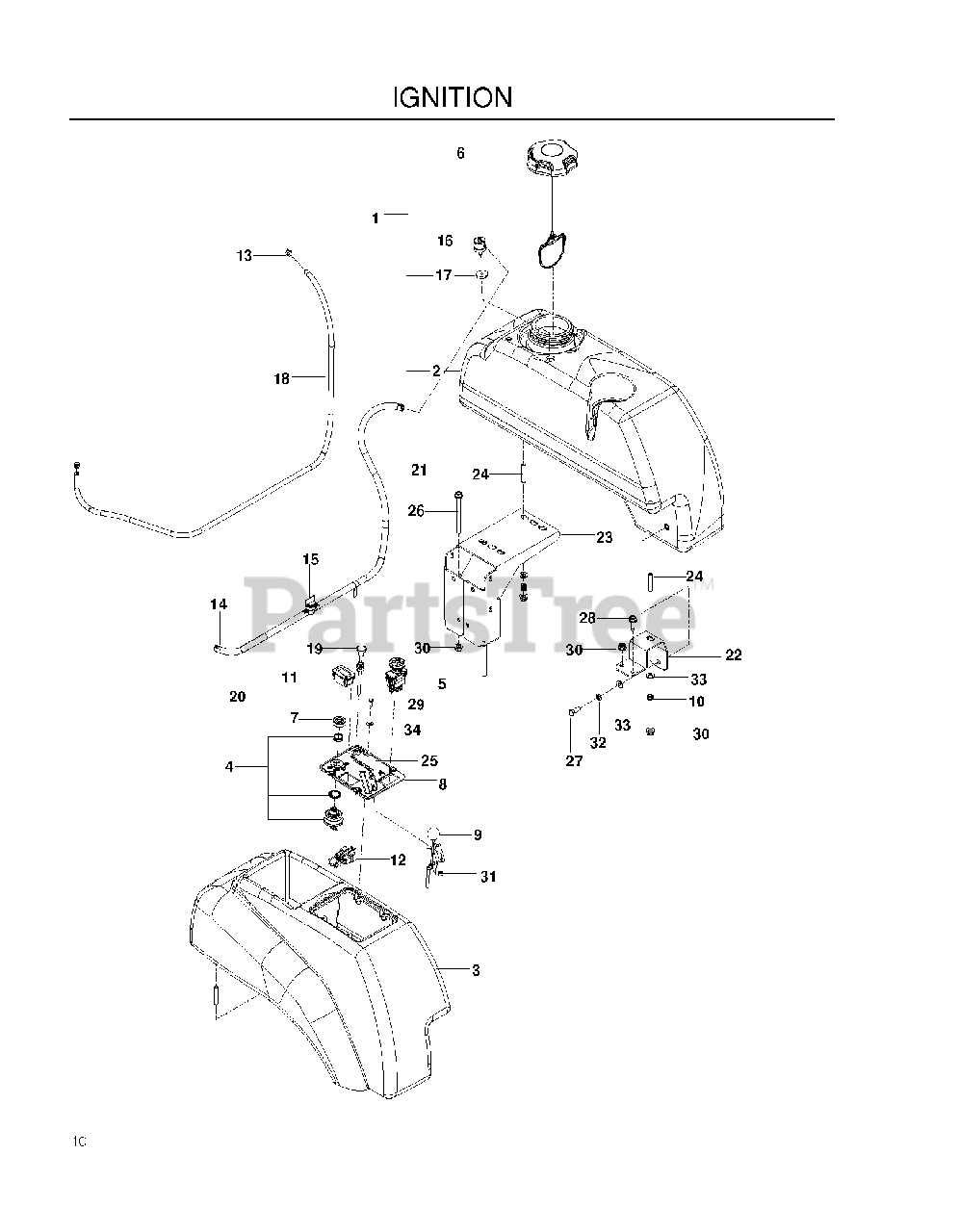

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon 576370202

ASSEMBLY, LT TANK, EPA-BLK

$279.99

$

Usually ships in 3-10 days

0

2

Dixon 576370201

OBSOLETE - TANK, LT FUEL, BLK-EPA
(Superseded to 576370202)

$279.99

$

Usually ships in 3-10 days

0

3

Dixon 576683701

CONSOLE, RT-BLK

$194.99

$

Usually ships in 3-10 days

0

4

Dixon 574455401

SWITCH, IGNITION, INDAK

$31.99

$

In Stock, Qty 6

0

5

Dixon 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 13

0

6

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

In Stock, Qty 8

0

7

Dixon 539103178

OBSOLETE - CAP IGNITION NUT

$4.99

$

In Stock, only 2 left!

0

8

Dixon 574841204

PLATE, CONSOLE, BLK
(Superseded to 592877402)

$7.49

$

Usually ships in 3-10 days

0

9

Dixon 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

10

Dixon 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

11

Dixon 576179401

HOUR METER

$34.99

$

In Stock, Qty 7

0

12

Dixon 575321001

PLUG, TIMER

$12.99

$

Usually ships in 3-10 days

0

13

Dixon 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

14

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

15

Dixon 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

16

Dixon 576618101

VALVE.FUEL.CHECK

$22.99

$

In Stock, Qty 20+

0

17

Dixon 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$2.49

$

In Stock, Qty 20+

0

18

Dixon 576660602

HOSE, VAPOR 3/16 X 48"

$24.99

$

Usually ships in 3-10 days

0

19

Dixon 539113458

CABLE, CHOKE KAWASAKI

$47.99

$

Usually ships in 3-10 days

0

20

Dixon 539107765

HOSE, FUEL .25 ID X 26"

$7.49

$

In Stock, only 3 left!

0

21

Dixon 539932956

GAS LINE 10"

$8.99

$

Usually ships in 3-10 days

0

22

Dixon 539131671

SUPPORT, TANK, BLK

$34.99

$

Usually ships in 3-10 days

0

23

Dixon 575533602

MOUNT, TANK, ZT BLK

$74.99

$

Usually ships in 3-10 days

0

24

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, Qty 5

0

25

Dixon 574841102

No Description Available

$

$

Not available

26

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

28

Dixon 539113226

No Description Available
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

30

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 10

0

31

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

32

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

33

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

34

Dixon 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0
