Ultra Vac - Exmark Ultra Vac Bagger for LHP Mower (SN: 510000 - 599999) (2005) Deck Components And Front Weights 48" (W/4" Tab) Parts Diagram

Ultra Vac Bagger for LHP Mower

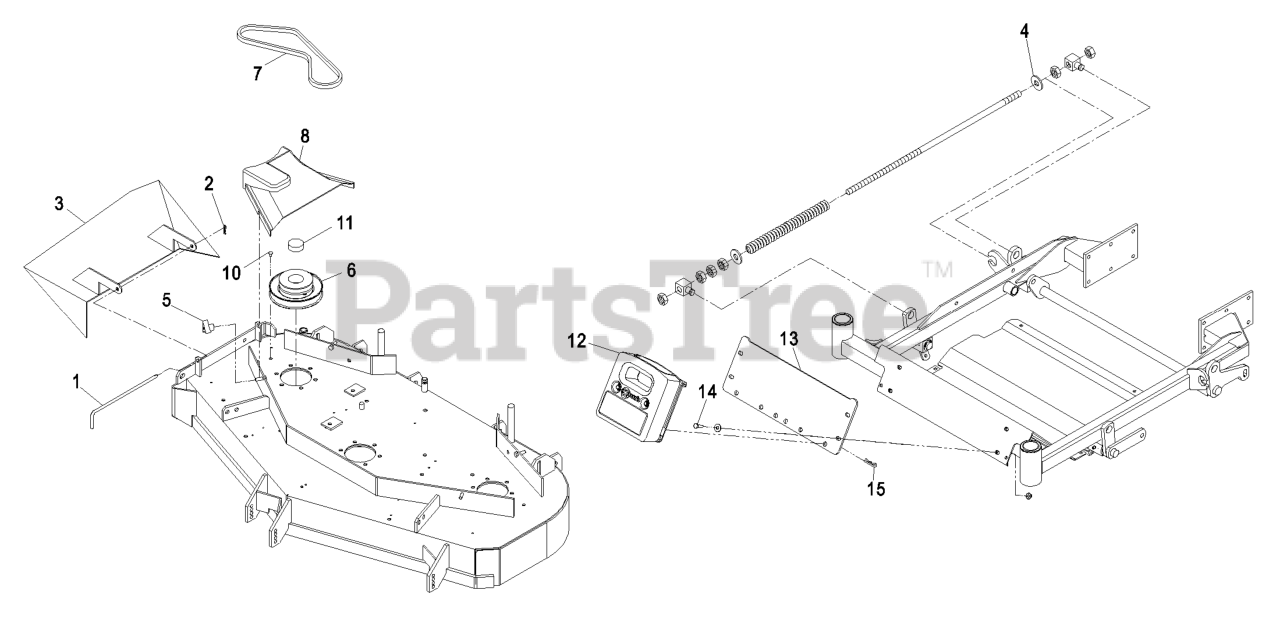

Deck Components And Front Weights 48" (W/4" Tab) Parts Diagram

  • Title

1

Exmark 1-653363

PIN, CHUTE PIVOT PLTD

$

$

Not available

2

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

3

Exmark 1-402106

1-402106-01
(Superseded to 1-402106-01)

$191.99

$

In Stock, only 2 left!

0

4

Exmark 1-805517

WASHER

$

$

Not available

5

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

6

Exmark 1-653362

SHEAVE, BLOWER DR 48"

$324.99

$

In Stock, only 1 left!

0

7

Exmark 1-653333

BELT-BLOWER
(Superseded to 1-653333-SL)

$35.99

$

Usually ships in 3-6 days

0

8

Exmark 103-1316

COVER, BELT 44/48

$

$

Not available

9

Spacer, Counterweight

Note: NOT USED ON THIS MODEL

$

$

Not available

10

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

11

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$13.99

$

Usually ships in 3-6 days

0

Exmark 103-5629

Front Weight Kit

Note: Includes items 12, 13, 14 and 15. Kit is used only when an Ultra Vac is installed on any Lazer Z HP with a 2 post ROPS.

$461.99

$

Usually ships in 3-6 days

0

12

Exmark 103-6363

ASM,CAST WEIGHT

$412.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$91.99

$

In Stock, only 1 left!

0

14

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 19

0

15

Exmark 995124

Hairpin, Cotter

$

$

Currently unavailable

Exmark 103-1313

Deck Component Kit

$

$

Currently unavailable
