Ultra Vac - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 440000 - 509999) (2004)

Ultra Vac QDS Bagger for Lazer Z Mower

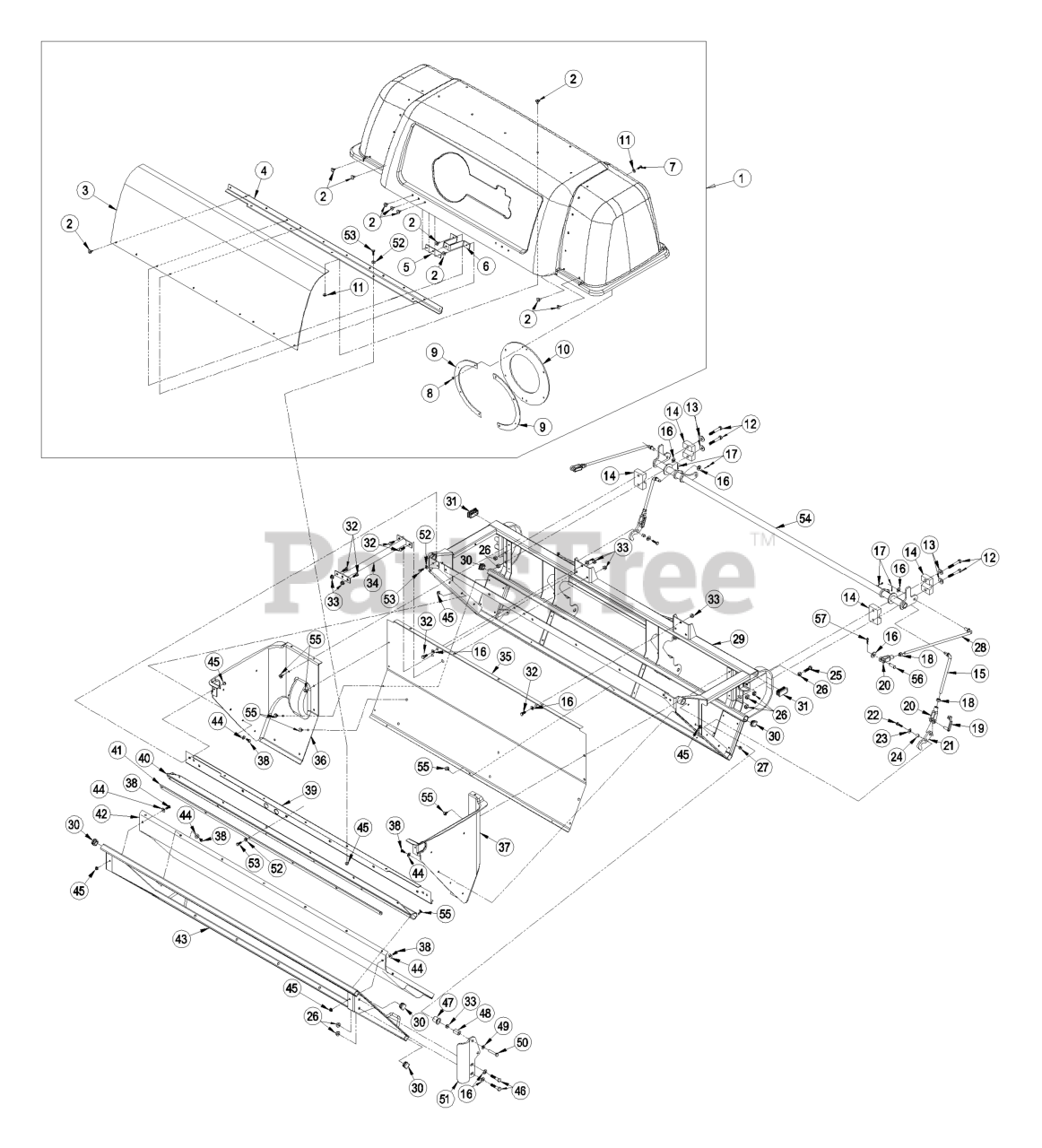

Ultra Vac - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 440000 - 509999) (2004) > Parts Diagrams (7) > Hopper Assembly

  • Title
103-2736

1

Asm, Hood Dump

Part# 103-2736

Note: Includes items 2 through 11 and large Exmark decal.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $700.55

114439

2

Rivet, Pop 3/16 X 1/2

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

103-0440

3

Screen, Bagger

Part# 103-0440

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.18

103-2662-03

4

Support, Screen

Part# 103-2662-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.26

103-0376

5

Plate, Latch Reinforce

Part# 103-0376

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.05

103-0379

6

Bracket, Mount

Part# 103-0379

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.36

3250-27

7

Screw, #10-24 X 3/4 Crth

Part# 3250-27

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.55

3296-2

8

Nut, Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

103-0378

9

Clamp, Seal

Part# 103-0378

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.53

103-0439

10

Seal, Tube

Part# 103-0439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.97

3256-61

11

Washer, Flat .216 X .750

Part# 3256-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

323-12

12

Screw, Hh 3/8-16 X 2 1/2

Part# 323-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.92

3256-4

13

Washer, Flat 7/16 X 2

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

103-2409

14

Bearing, Block Half

Part# 103-2409 (Superseded to 103-8057)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $43.55

103-2413

15

Linkage, Handle

Part# 103-2413

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.17

3256-24

16

Washer, Flat .406 X .813

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

3272-10

17

Pin, Cotter 1/8 X 3/4

Part# 3272-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

3219-3

18

Nut, Hh 3/8-24

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

103-2399

19

Pin, Spring Clevis 3/8

Part# 103-2399

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-633131

20

Yoke, Brake Linkage

Part# 1-633131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.40

103-3191-03

21

Latch

Part# 103-3191-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $16.47

321-6

22

Screw, Hh 1/4-20 X 1

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.40

3256-55

23

Washer, Flat 1/4

Part# 3256-55

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-633545

24

Spacer, Gommet

Part# 1-633545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

323-53

25

Bolt, Tap 3/8-16 X 1 3/4

Part# 323-53

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.68

3290-357

26

Nut, Hhf 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

3296-42

27

Nut, Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

103-2365

28

Link, Hinge

Part# 103-2365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

103-4272-03

29

Wld, Upright

Part# 103-4272-03

OEM Warranty Repair Part for Exmark

Currently unavailable

103-3202

30

Cap, Tube 1 X 1

Part# 103-3202

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

103-3201

31

Cap, Tube 1 X 2

Part# 103-3201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.23

322-3

32

Screw, Hh 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

32128-20

33

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

103-2414-03

34

Wld, Rear Crossmember

Part# 103-2414-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $38.84

103-2404-03

35

Sheet, Wall

Part# 103-2404-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $121.26

103-2419

36

Panel, Bagger Lh

Part# 103-2419 (Superseded to 103-7826)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $123.61

103-2418

37

Panel, Bagger Rh

Part# 103-2418 (Superseded to 103-7827)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $123.61

321-3

38

Screw, Hh 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

103-2710

39

Asm, Rear Crossmember

Part# 103-2710

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $117.40

103-2360

40

Seal, Door Hinge

Part# 103-2360

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $97.99

103-3010-03

41

Strap, Hold Down

Part# 103-3010-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.09

103-2383

42

Asm, Bag & Bottom Panel

Part# 103-2383

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $244.89

103-2737

43

Asm, Door Frame

Part# 103-2737

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $492.15

3256-2

44

Washer, Flat .312 X .750

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

32128-33

45

Nut, Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

323-6

46

Screw, Hh 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.90

103-2377

47

Bushing

Part# 103-2377

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

103-2361

48

Pin, Hinge Pivot

Part# 103-2361

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

3256-23

49

Washer, Flat .344 X .688

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

322-9

50

Screw, Hh 5/16-18 X 1 3/4

Part# 322-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.38

103-3332-03

51

Arm, Hinge Lh

Part# 103-3332-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.05

103-3331-03

Arm, Hinge Rh

Part# 103-3331-03

Note: (Not Shown)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.05

3256-24

52

Washer, Flat .281 X .625

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.50

321-4

53

Screw, Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

103-2412-03

54

Wld, Intermediate Link

Part# 103-2412-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $191.42

114439

55

Rivet, Pop 3/16 X 1/2

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-808285

56

Pin, Clevis

Part# 1-808285

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-806003

57

Pin, Hair

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22
