Ultra Vac - Exmark Ultra Vac QDS Bagger for Mower (SN: 370000 - 439999) (2003) Hitch And Handle Assembly Parts Diagram

Ultra Vac QDS Bagger for Mower

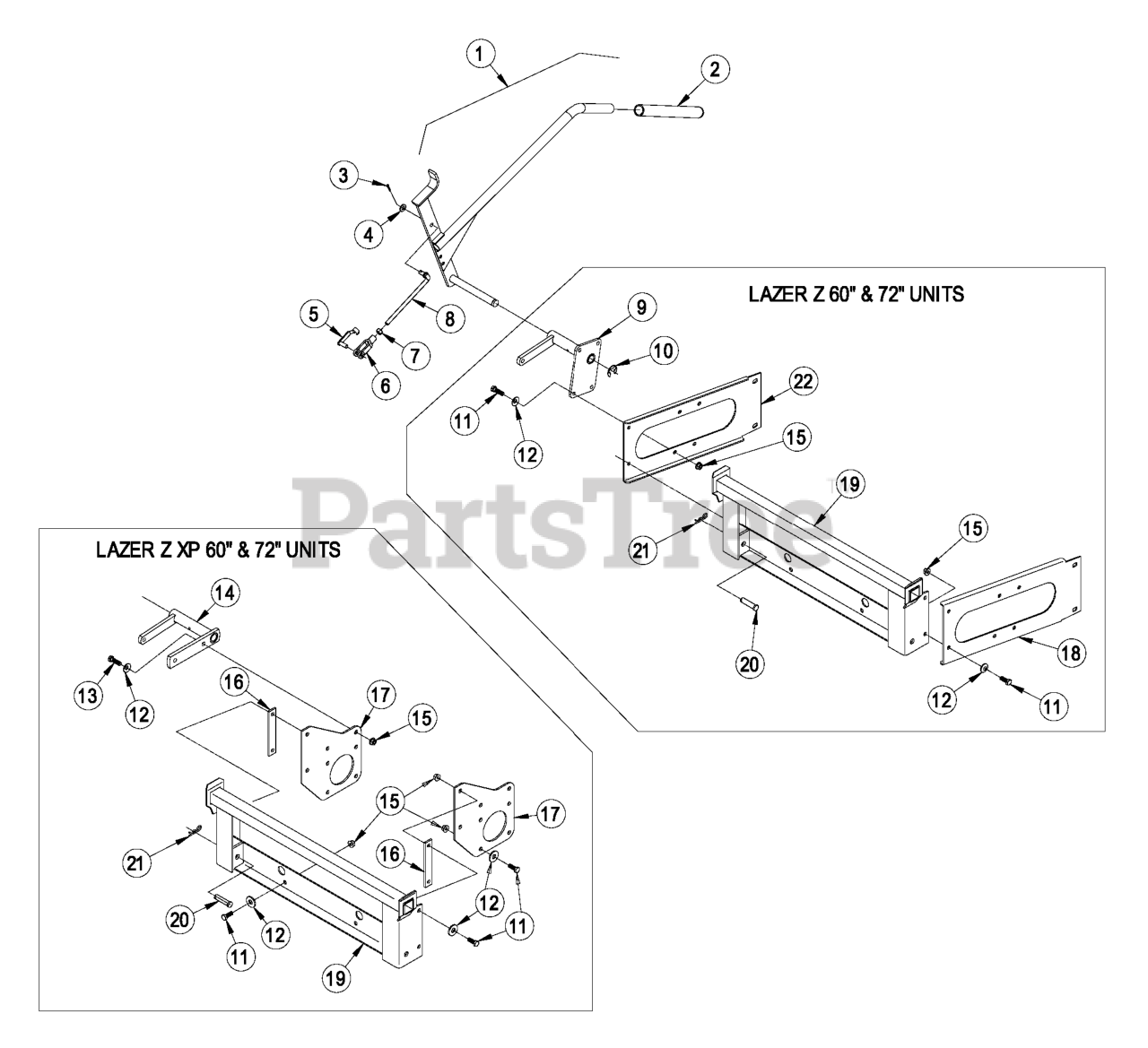

Hitch And Handle Assembly Parts Diagram

  • Title

1

Exmark 103-2738

ASM, HANDLE & GRIP - SERV

$

$

Not available

2

Exmark 103-3005

GRIP-HANDLE

$17.99

$

Usually ships in 3-6 days

0

3

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 20+

0

6

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, only 1 left!

0

7

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

8

Exmark 103-2413

LINK-HANDLE

$13.99

$

In Stock, only 3 left!

0

9

Exmark 103-2373-03

DISCONTINUED

$

$

Not available

10

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 20+

0

11

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Exmark 103-2980-03

WLD, HANDLE MOUNT - XP

$148.99

$

Usually ships in 3-6 days

0

15

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Exmark 103-1155-03

SPACER

$8.99

$

Usually ships in 3-6 days

0

17

Exmark 103-1154-03

Plate,Bagger Mount (Xp)

$

$

Currently unavailable

18

Exmark 103-0399-03

BRACKET-FRAME, RH

$119.99

$

Usually ships in 3-6 days

0

19

Exmark 103-0429-03

MOUNT-BAGGER

$509.99

$

Usually ships in 3-6 days

0

20

Exmark 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 4 left!

0

21

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

22

Exmark 103-2972-03

103-5612-03
(Superseded to 103-5612-03)

$96.99

$

Usually ships in 3-6 days

0
