UltraBelt GD (5900027) - Ferris UltraBelt GD Series 36" Walk-Behind Mower, 15hp Kawasaki 36" Mower Deck - Pulleys, Belt & Idler Arn Parts Diagram

UltraBelt GD Series 36" Walk-Behind Mower, 15hp Kawasaki

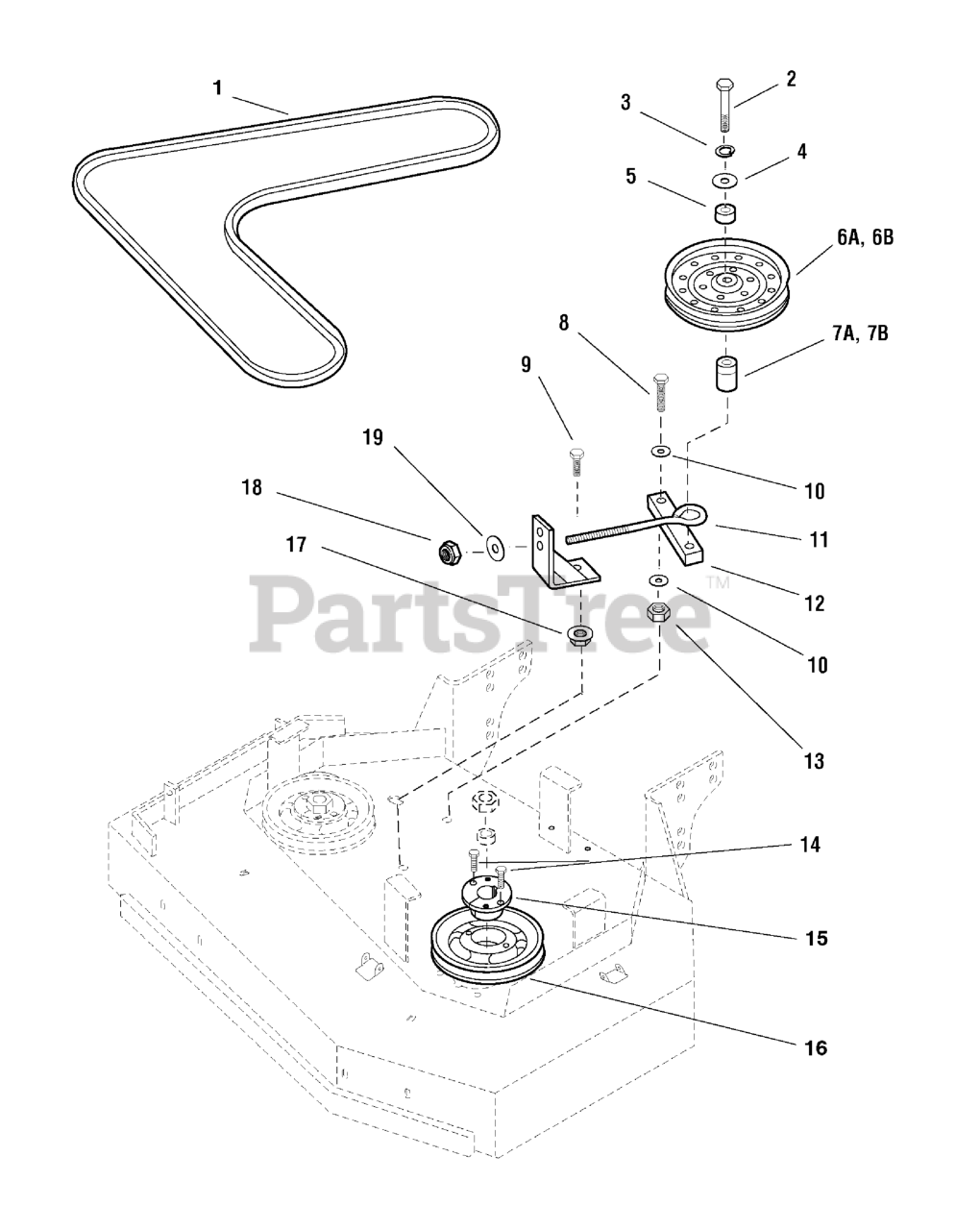

36" Mower Deck - Pulleys, Belt & Idler Arn Parts Diagram

  • Title

1

Ferris 5021847

BELT, Deck Drive

$88.99

$

In Stock, only 1 left!

0

2

Ferris 5025018X32

BOLT, 1/2-20 X 4" GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025173

WASHER, 1/2" SPLIT LOCK
(Superseded to 5025331SM)

Note: (S/N: 1659 & above)

$3.49

$

In Stock, Qty 20+

0

4

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

5

Ferris 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

Note: (S/N: 1659 & above)

$7.49

$

In Stock, only 2 left!

0

6A

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

Note: (S/N: 1658 & below)

$109.99

$

Usually ships in 2-12 days

0

6B

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: (Refer to Note: *)

$

$

Not available

7A

Ferris 5044673

SPACER, .52 X 1.00 X .88, PM, CZ
(Superseded to 5044673SM)

Note: (S/N: 1658 & below)

$8.99

$

Usually ships in 2-12 days

0

7B

Ferris 5045204

SPACER, .52 x 1.00 x 1.63

Note: (S/N: 1659 & above)

$10.99

$

Usually ships in 2-12 days

0

8

Ferris 5025016X14

BOLT, 7/16-20 X 1-3/4" GD.5
(Superseded to 5025016X14YP)

$5.99

$

Usually ships in 2-12 days

0

9

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

10

Ferris 5025157

WASHER, 7/16" SAE
(Superseded to 5025157FS)

$2.99

$

Usually ships in 2-12 days

0

11

Ferris 5021811

EYE BOLT, 3/8-16 X 8, 3THRD, 1EYE, CZ
(Superseded to 5021811SM)

$8.49

$

In Stock, only 1 left!

0

12

Ferris 5044610B

ARM, Idler

$41.99

$

Usually ships in 2-12 days

0

13

Ferris 5025094

NUT, 7/16-20 Hex Nylon Lock
(Superseded to 5025094YP)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025010X10

BOLT, 1/4-20 X 1-1/4 GD5 CZ
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 9

0

15

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 1 left!

0

16

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

17

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

18

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 8

0

19

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0
