UltraBelt GD (5900030) - Ferris UltraBelt GD Series 48" Walk-Behind Mower, 15hp Kawasaki 48" & 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

UltraBelt GD Series 48" Walk-Behind Mower, 15hp Kawasaki

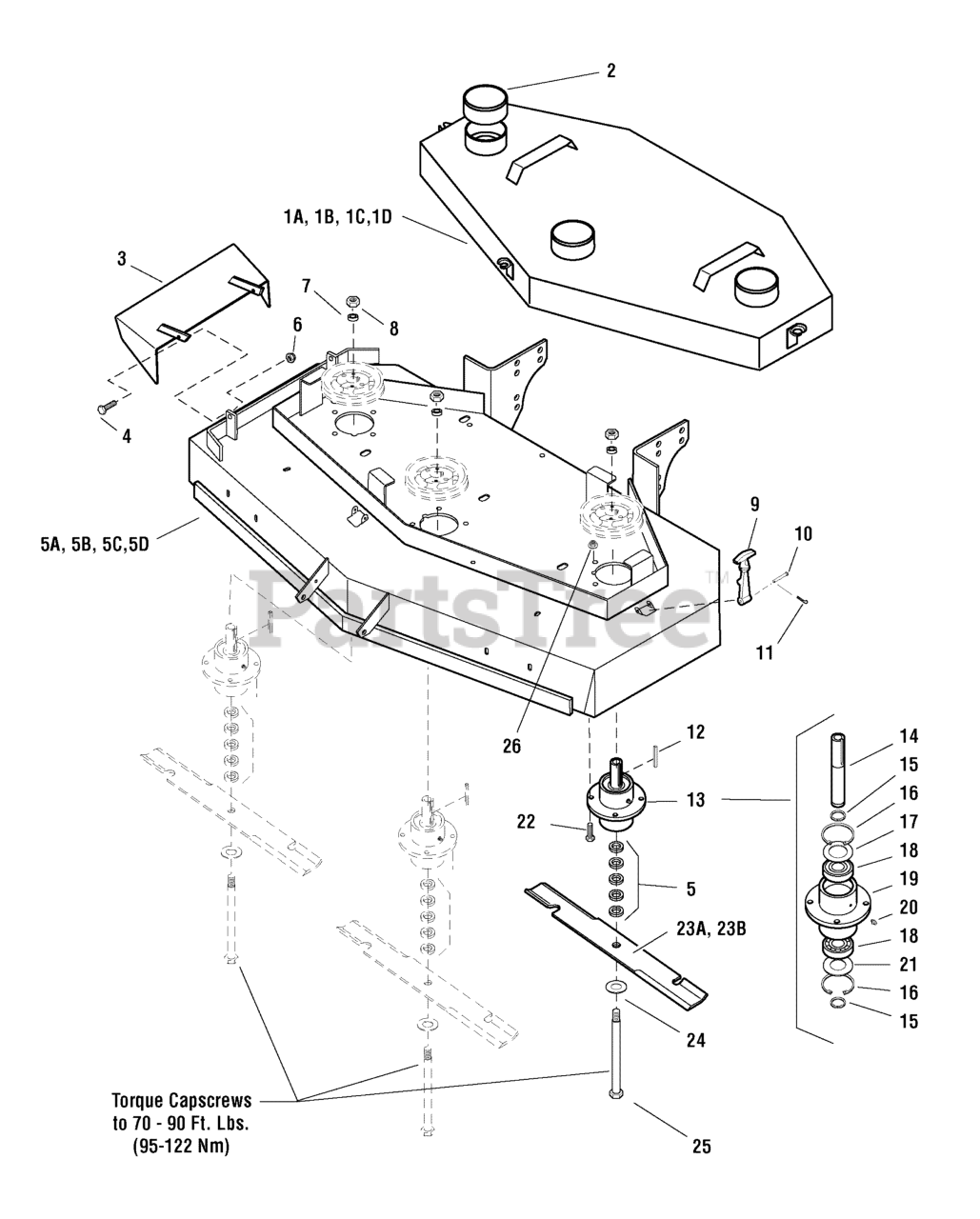

48" & 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1A

Ferris 5031020B

48" DECK GUARD

Note: (S/N: 1658 & below)

$

$

Currently unavailable

1B

Ferris 5031106B

48" DECK GUARD

Note: (S/N: 1659 & above)

$512.99

$

Usually ships in 2-12 days

0

1C

Ferris 5031022B

52" DECK GUARD

Note: (S/N: 1658 & below)

$

$

Currently unavailable

1D

Ferris 5031108B

52" DECK GUARD

Note: (S/N: 1659 & above)

$

$

Currently unavailable

2

Ferris 5021674

VINYL CAP
(Superseded to 5021674FS)

$7.49

$

Usually ships in 2-12 days

0

3

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

4

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

5A

Ferris 5031004B

48" MOWER HOUSING

Note: (S/N: 1658 & below)

$

$

Currently unavailable

5B

Ferris 5600244

48" MOWER HOUSING ASSEMBLY

Note: (Includes safety decals, S/N: 1659 & above)

$

$

Currently unavailable

5C

Ferris 5031007B

52" MOWER HOUSING

Note: (S/N: 1658 & below)

$

$

Currently unavailable

5D

Ferris 6631112

52" MOWER HOUSING ASSEMBLY

Note: (Includes safety decals, S/N: 1659 & above)

$

$

Currently unavailable

6

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

8

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

In Stock, only 1 left!

0

10

Ferris 5020841X4

CLEVIS PIN
(Superseded to 5020841X4FS)

$2.99

$

Usually ships in 2-12 days

0

11

Ferris 5020841X5

COTTER PIN
(Superseded to 5020841X5FS)

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

13

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

14

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

15

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

17

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

18

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

19

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

20

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

22

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, only 4 left!

0

23A

Ferris 5021227

MOWER BLADE, 18"
(Superseded to 5021227ASM)

$25.99

$

In Stock, Qty 6

0

23B

Ferris 5020843

MOWER BLADE, 16-1/4"
(Superseded to 5020843ASM)

$24.99

$

In Stock, only 1 left!

0

24

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

25

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

26

Ferris 5025392

NUT, 5/16-18 Hex Nylon Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
