UltraBelt GD (5900030) - Ferris UltraBelt GD Series 48" Walk-Behind Mower, 15hp Kawasaki Fuel Tank & Mount Group Parts Diagram

UltraBelt GD Series 48" Walk-Behind Mower, 15hp Kawasaki

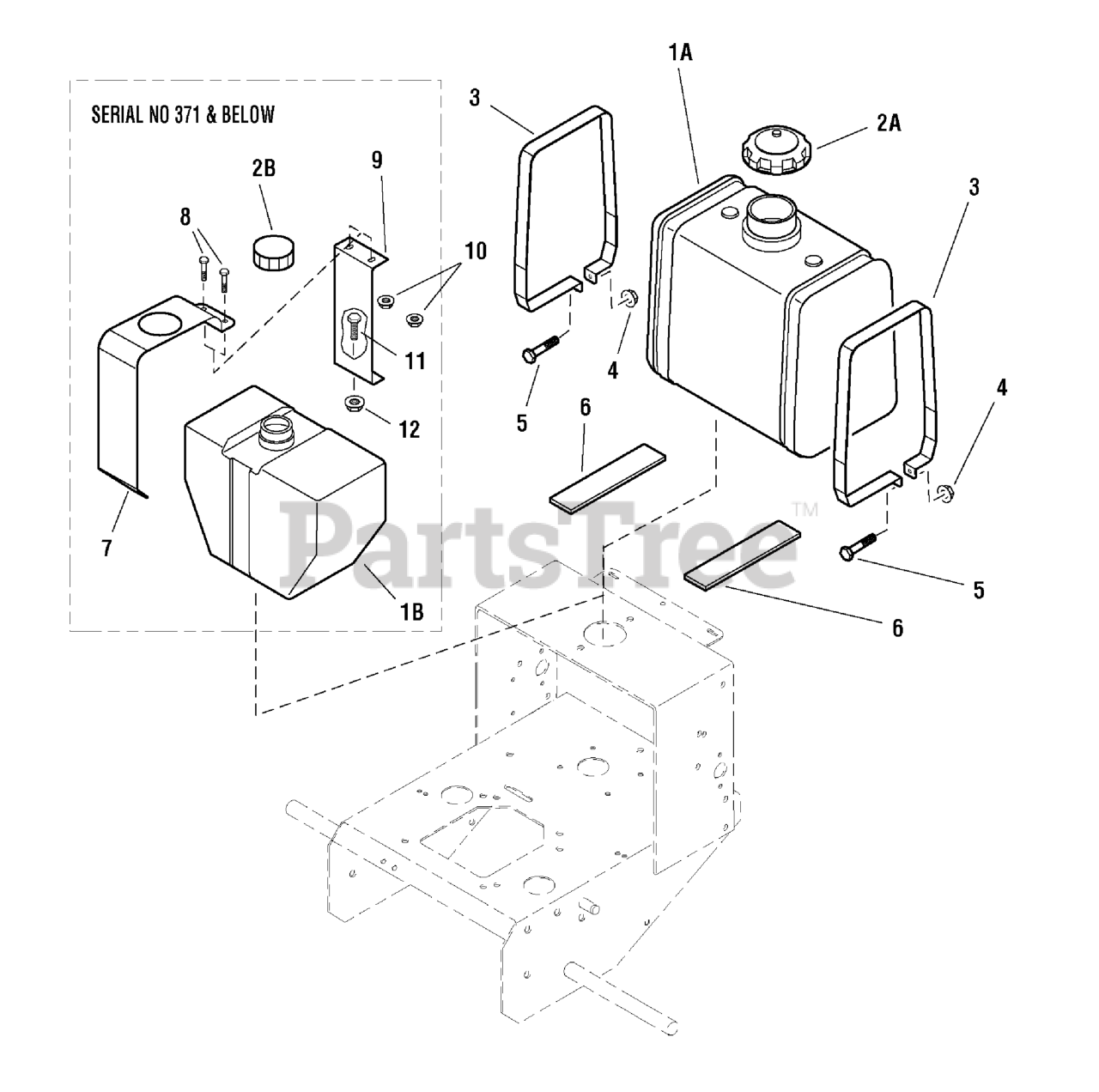

Fuel Tank & Mount Group Parts Diagram

  • Title

1A

Ferris 5410708

TANK, FUEL, PLASTIC, 5 GALLON W/ FUEL LINE

$240.99

$

Usually ships in 2-12 days

0

1B

Ferris 5021437

FUEL TANK, 4 Gallon

$160.99

$

Usually ships in 2-12 days

0

2A

Ferris 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

$30.99

$

In Stock, only 2 left!

0

2B

Ferris 5021468

CAP, Fuel Tank

$

$

Not available

3

Ferris 5044694B

FUEL TANK STRAP

$31.99

$

Usually ships in 2-12 days

0

4

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$2.99

$

Usually ships in 2-12 days

0

6

Ferris 5021877

RUBBER PAD
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

7

Ferris 5043312

FUEL TANK STRAP

$

$

Currently unavailable

8

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5044671

FUEL TANK HOLD DOWN

$

$

Currently unavailable

10

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

12

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0
