UltraBelt GD (BD36B) - Ferris UltraBelt GD Series 36" Walk-Behind Mower, 14hp Briggs & Stratton (SN: 0101 & Above) 36" Mower Deck - Complete Parts Diagram

UltraBelt GD Series 36" Walk-Behind Mower, 14hp Briggs & Stratton

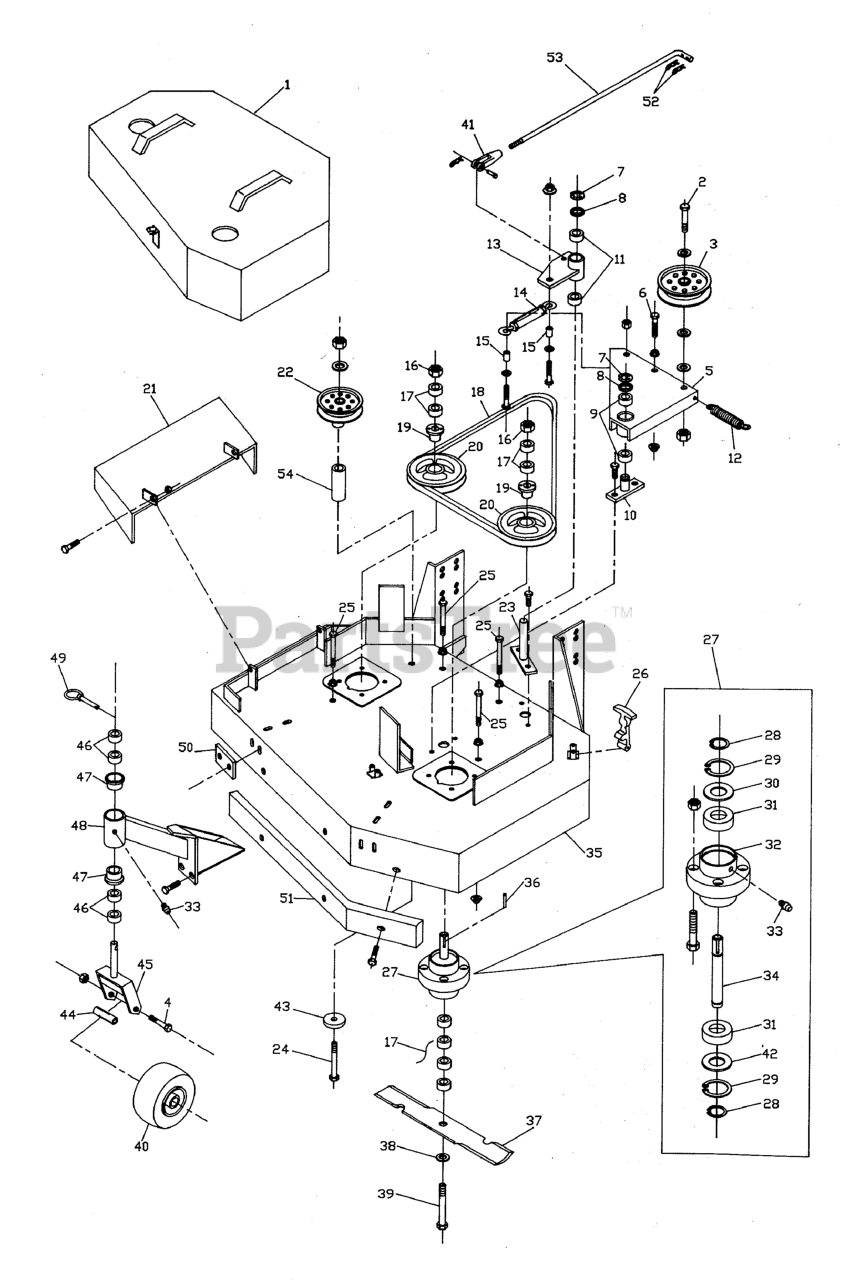

36" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 5043371

36 " DECK GUARD

$

$

Currently unavailable

2

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

3

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

$109.99

$

Usually ships in 2-12 days

0

4

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

5

Ferris 5042563B

CLUTCH PIVOT PLATE

$

$

Currently unavailable

6

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 1 left!

0

7

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5020874

BUSHING
(Superseded to 5020874FS)

$9.49

$

Usually ships in 2-12 days

0

10

Ferris 5041629B

IDLER MOUNT

$26.99

$

Usually ships in 2-12 days

0

11

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

13

Ferris 5043369

Pivot

$

$

Currently unavailable

14

Ferris 5041852

TURNBUCKLE ASSY

$40.99

$

Usually ships in 2-12 days

0

15

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

16

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

18

Ferris 5021063

BELT, Deck Drive

$61.99

$

Usually ships in 2-12 days

0

19

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

20

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

21

Ferris 5042565B

DISCHARGE CHUTE

$131.99

$

Usually ships in 2-12 days

0

22

Ferris 5021369

IDLER PULLEY
(Superseded to 5021369SM)

$73.99

$

Usually ships in 2-12 days

0

23

Ferris 5043372

Idler Pivot

$

$

Currently unavailable

24

Ferris 5025017X38

BOLT, 1/2-13 x 4-3/4

$

$

Currently unavailable

25

Ferris 5025013X40

BOLT, 3/8-16 x 5
(Superseded to 5025013X40SM)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

27

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

28

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

30

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

31

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

32

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

33

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 1 left!

0

34

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

35

Ferris 5043367

36" MOWER HOUSING

$

$

Currently unavailable

36

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

Usually ships in 2-12 days

0

37

Ferris 5021227

MOWER BLADE, 18"
(Superseded to 5021227ASM)

$25.99

$

In Stock, only 3 left!

0

37

Ferris 5021268

MOWER BLADE, 18" (High Lift)

$

$

Currently unavailable

38

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

39

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

40

Ferris 5021467

TIRE ASSM, Solid Rubber, 9 X 3.5

$

$

Currently unavailable

41

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

42

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

43

Ferris 5043373

WASHER

$

$

Currently unavailable

44

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

45

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

46

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

47

Ferris 5020822

BUSHING, Flange
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 15

0

48

Ferris 5041661B

Caster Support

$

$

Currently unavailable

49

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 3 left!

0

50

Ferris 5041703B

Caster Mount Spacer

$19.99

$

Usually ships in 2-12 days

0

51

Ferris 5042582

Bumper

$

$

Currently unavailable

52

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

53

Ferris 5043377B

Blade Engagement Rod

$

$

Currently unavailable

54

Ferris 5043366

SPACER, .50 x 1.00 x 2.25

$13.99

$

Usually ships in 2-12 days

0
