UltraBelt GD (BD48KA) - Ferris UltraBelt GD Series 48" Walk-Behind Mower, 13hp Kawasaki (SN: 0101 & Above) 48" Mower Deck Assembly Parts Diagram

UltraBelt GD Series 48" Walk-Behind Mower, 13hp Kawasaki

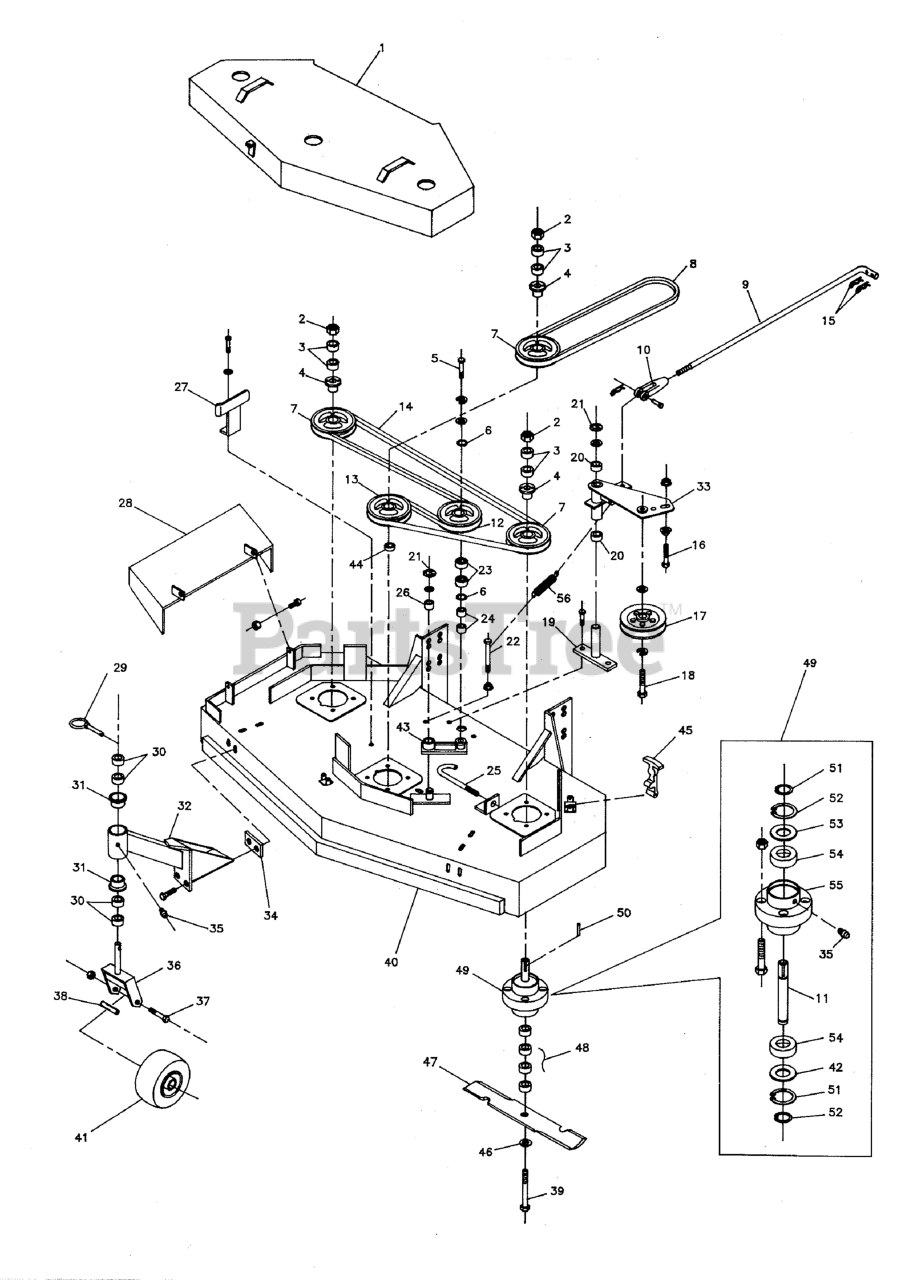

48" Mower Deck Assembly Parts Diagram

  • Title

1

Ferris 5043216

48" Guard

$

$

Currently unavailable

2

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

4

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 1 left!

0

5

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

6

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

8

Ferris 5021414

Belt

$51.99

$

Usually ships in 2-12 days

0

9

Ferris 5043225

Blade Engagement Rod

$14.99

$

Usually ships in 2-12 days

0

10

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

11

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

12

Ferris 5041481

PULLEY, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

13

Ferris 5041478

SPINDLE PULLEY

$106.99

$

Usually ships in 2-12 days

0

14

Ferris 5020873

BELT, Blade Spindle

$87.99

$

Usually ships in 2-12 days

0

15

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5043226

Idler Pulley

$46.99

$

Usually ships in 2-12 days

0

18

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

19

Ferris 5043223

Idler Mount

$

$

Currently unavailable

20

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025011X24

BOLT, 5/16-18 x 3
(Superseded to 5025011X24SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

24

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, only 3 left!

0

25

Ferris 5041729

J-BOLT

$

$

Currently unavailable

26

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

Usually ships in 2-12 days

0

27

Ferris 5042657B

Belt Guide

$15.99

$

Usually ships in 2-12 days

0

28

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

29

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 4 left!

0

30

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

Usually ships in 2-12 days

0

31

Ferris 5020822

BUSHING, Flange
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 13

0

32

Ferris 5041661B

Caster Support

$

$

Currently unavailable

33

Ferris 5043217

Blade Engagement Pivot

$

$

Currently unavailable

34

Ferris 5041703B

Caster Mount Spacer

$19.99

$

Usually ships in 2-12 days

0

35

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

37

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

38

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

39

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

40

Ferris 5030682B

48" MOWER HOUSING

$

$

Currently unavailable

41

Ferris 5021467

TIRE ASSM, Solid Rubber, 9 X 3.5

$

$

Currently unavailable

42

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

43

Ferris 5041622

IDLER ARM

$

$

Not available

44

Ferris 5041484

SPACER, 1.00 X 1.25 X .25
(Superseded to 5041484FS)

$8.99

$

Usually ships in 2-12 days

0

45

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

In Stock, only 1 left!

0

46

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

47

Ferris 5020843

MOWER BLADE, 16-1/4"
(Superseded to 5020843ASM)

$24.99

$

In Stock, only 1 left!

0

48

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

In Stock, only 4 left!

0

49

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

50

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

51

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

52

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

53

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

54

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

55

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

56

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0
