UltraBelt GD Series 48" Walk-Behind Mower, 13hp Kawasaki

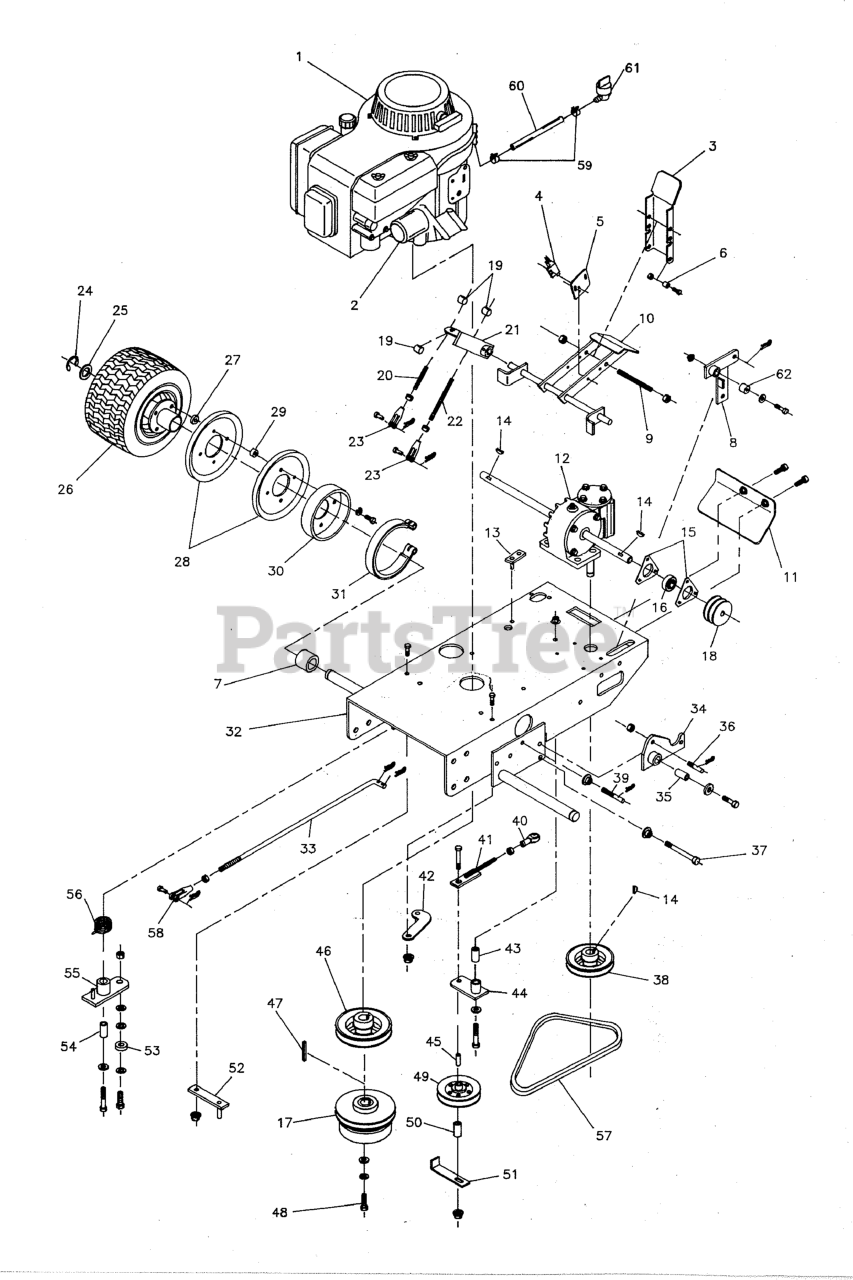

Engine & PTO Group Parts Diagram

  • Title

1

ENGINE, 13HP Kawasaki (Model FC401V)

$

$

Not available

1

ENGINE, 14HP Briggs & Stratton (Model 261772)

$

$

Not available

2

Ferris 5021334X1

OIL FILTER (49065-2078)
(Superseded to 5213341SM)

$

$

Not available

2

Ferris 5021386X1

OIL FILTER (Briggs & Stratton)

$

$

Currently unavailable

3

Ferris 5043260

Toe Plate

$78.99

$

Usually ships in 2-12 days

0

4

Ferris 5021451

SWITCH, Plunger, NO
(Superseded to 5021451SM)

$11.99

$

In Stock, only 2 left!

0

5

Ferris 5043298

Switch Plate

$

$

Currently unavailable

6

Ferris 5041752

SPACER, .26 X .38 X .50

$4.99

$

Usually ships in 2-12 days

0

7

Ferris 5043293

SPACER, 1.00 x 1.50 x .94

$

$

Currently unavailable

8

Ferris 5043257

Blade Clutch Pivot

$

$

Currently unavailable

9

Ferris 5025011X32

BOLT, 5/16-18 x 4

$

$

Currently unavailable

10

Ferris 5043256

Parking Brake Pedal

$

$

Currently unavailable

11

Ferris 5043244

Skid Plate

$

$

Currently unavailable

12

Ferris 5021436

Gear Box

$815.99

$

Usually ships in 2-12 days

0

13

Ferris 5043231

Detent Tensioner

$

$

Currently unavailable

14

Ferris 5021084

KEY, #61 Woodruff

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5021450

Bearing Flange

$

$

Currently unavailable

16

Ferris 5021449

5/8" Bearing

$

$

Currently unavailable

17

Ferris 5021446

Variable Speed Pulley

$

$

Currently unavailable

18

Ferris 5021445

PULLEY, Double-A Section

$109.99

$

Usually ships in 2-12 days

0

19

Ferris 5043308

Barrel Nut

$4.99

$

Usually ships in 2-12 days

0

20

Ferris 5043309

Clutch Adjustment rod

$

$

Currently unavailable

21

Ferris 5043290

Pull Plate

Note: (Right Side Shown)

$62.99

$

Usually ships in 2-12 days

0

21

Ferris 5043288

Pull Plate

Note: (Left Side)

$

$

Currently unavailable

22

Ferris 5043310

Brake Adjustment Rod

$7.49

$

Usually ships in 2-12 days

0

23

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

24

Ferris 5021053

C-CLIP

$

$

Currently unavailable

25

Ferris 5025162

WASHER, 1" SAE
(Superseded to 5025162SM)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5021443

Wheel/Tire Assembly

$202.99

$

Usually ships in 2-12 days

0

27

Ferris 5043285

SPACER, .33 x .88 x .25

$4.49

$

Usually ships in 2-12 days

0

28

Ferris 5021439

PULLEY, Ground Drive

$39.99

$

In Stock, only 2 left!

0

29

Ferris 5021440

SPACER, Pulley
(Superseded to 5102581YP)

$11.99

$

Usually ships in 2-12 days

0

30

Ferris 5021441

BRAKE DRUM

$32.99

$

Usually ships in 2-12 days

0

31

Ferris 5021438

BRAKE BAND REPLACEMENT ASS'Y

$74.99

$

Usually ships in 2-12 days

0

32

Ferris 5043264B

Engine Deck Weldment

$

$

Currently unavailable

33

Ferris 5043377B

Blade Engagement Rod

$

$

Currently unavailable

33

Ferris 5043225

Blade Engagement Rod

$14.99

$

Usually ships in 2-12 days

0

34

Ferris 5043249

Brake Lever Weldment

$

$

Currently unavailable

35

Ferris 5043295

BUSHING, Brass

$4.49

$

Usually ships in 2-12 days

0

36

Ferris 5043232

Threaded Pin

$8.99

$

Usually ships in 2-12 days

0

37

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, only 1 left!

0

38

Ferris 5021444

Gear Box Pulley

$

$

Currently unavailable

39

Ferris 5043233

Brake Bank Pin

$9.49

$

Usually ships in 2-12 days

0

40

Ferris 5104495

BALL JOINT 5/16-24 LH FEMALE W/STUD, BR
(Superseded to 5104495YP)

$22.99

$

Usually ships in 2-12 days

0

41

Ferris 5043267

Connecting Rod

$

$

Currently unavailable

42

Ferris 5043379

Belt Guide

$

$

Currently unavailable

43

Ferris 5043296

BUSHING, Brass
(Superseded to 5043296FS)

$11.99

$

Usually ships in 2-12 days

0

44

Ferris 5043247

Drive Idler Arm

$

$

Currently unavailable

45

Ferris 5041730

Actuator Spacer

$

$

Currently unavailable

46

Ferris 5020817

ENGINE PULLEY

$80.99

$

Usually ships in 2-12 days

0

47

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

48

Ferris 5025244X80

BOLT, M10 x 80MM

$

$

Currently unavailable

49

Ferris 5021097

PULLEY, V-Idler
(Superseded to 5021097SM)

$40.99

$

Usually ships in 2-12 days

0

50

Ferris 5020880

INSERT, Bearing
(Superseded to 5020880SM)

$12.99

$

Usually ships in 2-12 days

0

51

Ferris 5043243

Belt Holder

$

$

Currently unavailable

52

Ferris 5043383B

Belt Guide

$

$

Currently unavailable

53

Ferris 5021454

Bearing
(Superseded to 5021454FS)

$17.99

$

Usually ships in 2-12 days

0

54

Ferris 5043296

BUSHING, Brass
(Superseded to 5043296FS)

$11.99

$

Usually ships in 2-12 days

0

55

Ferris 5043245

Roller Cam

$

$

Currently unavailable

56

Ferris 5043091

Torsion Spring

$

$

Currently unavailable

57

Ferris 5021456

Belt

$34.99

$

Usually ships in 2-12 days

0

58

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

59

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, only 2 left!

0

60

Ferris 5043330

4" Long Fuel Line

$

$

Currently unavailable

61

Ferris 5021235

VALVE, Fuel Shut-Off

$

$

Currently unavailable

62

Ferris 5043282

Bushing

$8.99

$

Usually ships in 2-12 days

0
