UM 15H42 D - Electrolux/AYP Lawn Tractor CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

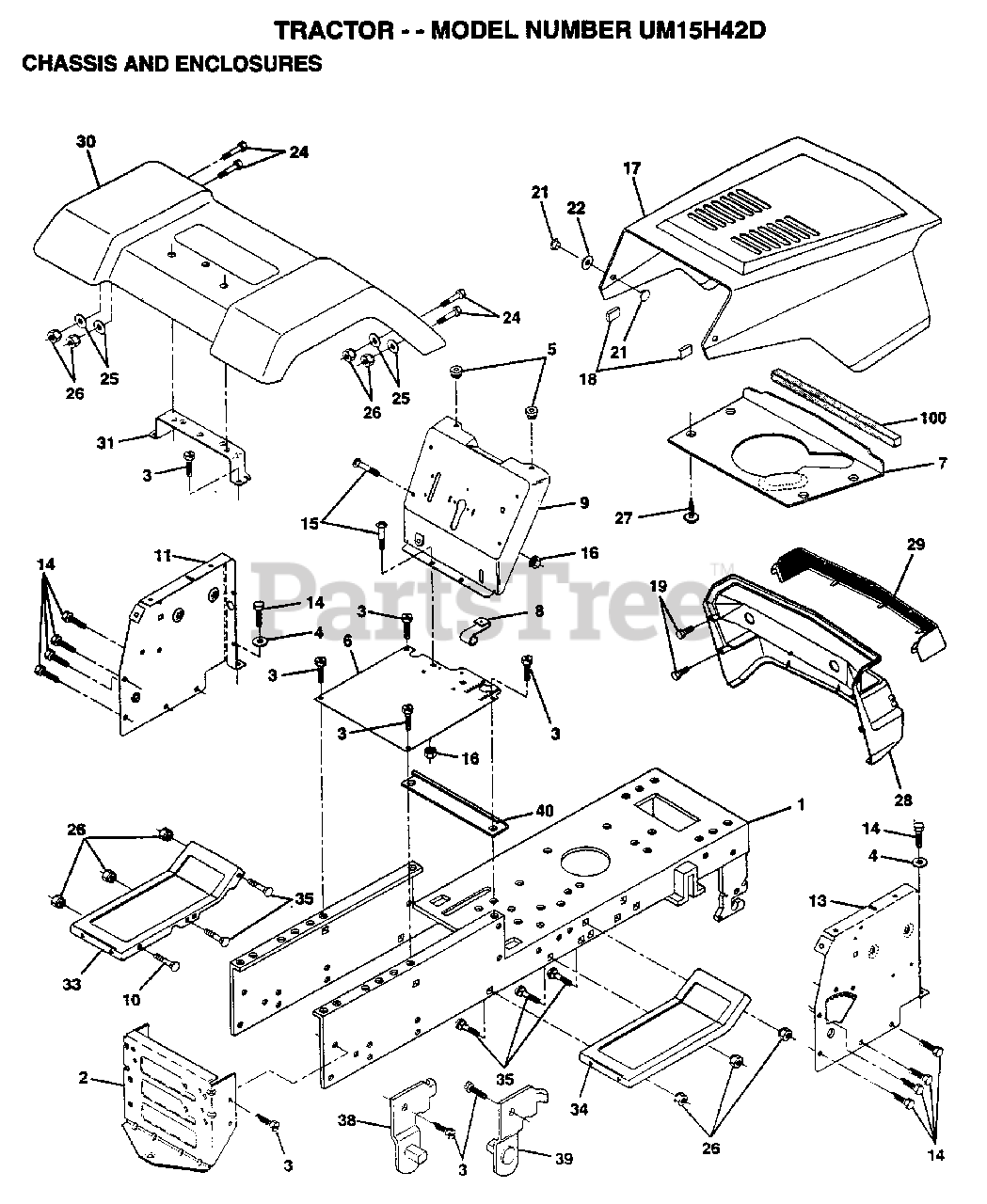

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 145501

CHASSIS.WLD.11GA
(Superseded to 532135034)

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 10

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

5

Electrolux/AYP 146077

SUB= 155272
(Superseded to 532155272)

$7.49

$

In Stock, Qty 5

0

6

Electrolux/AYP 145206

SUB= 145206X431

$

$

Not available

7

Electrolux/AYP 126842X

"SHIELD,HEAT HOOD"

$

$

Not available

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 146757X011

DASH.SLKSC.LT.1PC

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 135464

DASH PANEL LH
(Superseded to 146956)

$10.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 124031X012

SUB= 155934X010

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 134369X505

HOOD

$

$

Not available

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

19

Electrolux/AYP 17411310

SUB= 17521312

$

$

Not available

21

Electrolux/AYP 122933X

"RIVET,PLASTIC"
(Superseded to 532122933)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 124479X

SUB= 532124479

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

28

Electrolux/AYP 140137

SUB= 142034

$

$

Not available

29

Electrolux/AYP 124029X

SUB= 124029X599

$

$

Not available

30

Electrolux/AYP 140001X505

FENDER PNT LT

$104.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$10.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X505

FOOTREST.LH.LT/GT
(Superseded to 532181164)

$27.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X505

FOOTREST.RH.LT/GT
(Superseded to 532181193)

$27.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$8.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

41

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available

60

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

61

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 13

0

100

Electrolux/AYP 105037X

FOAM-STRIP LT
(Superseded to 532104915)

$

$

Not available

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$4.99

$

Usually ships in 3-10 days

0
