UMC435 A LAAT (HAHT) - Honda Brush Cutter, Made in Thailand (SN: HAHT-1000001 - HAHT-1999999) FRAME PIPE@JOINT CASE Parts Diagram

Brush Cutter, Made in Thailand

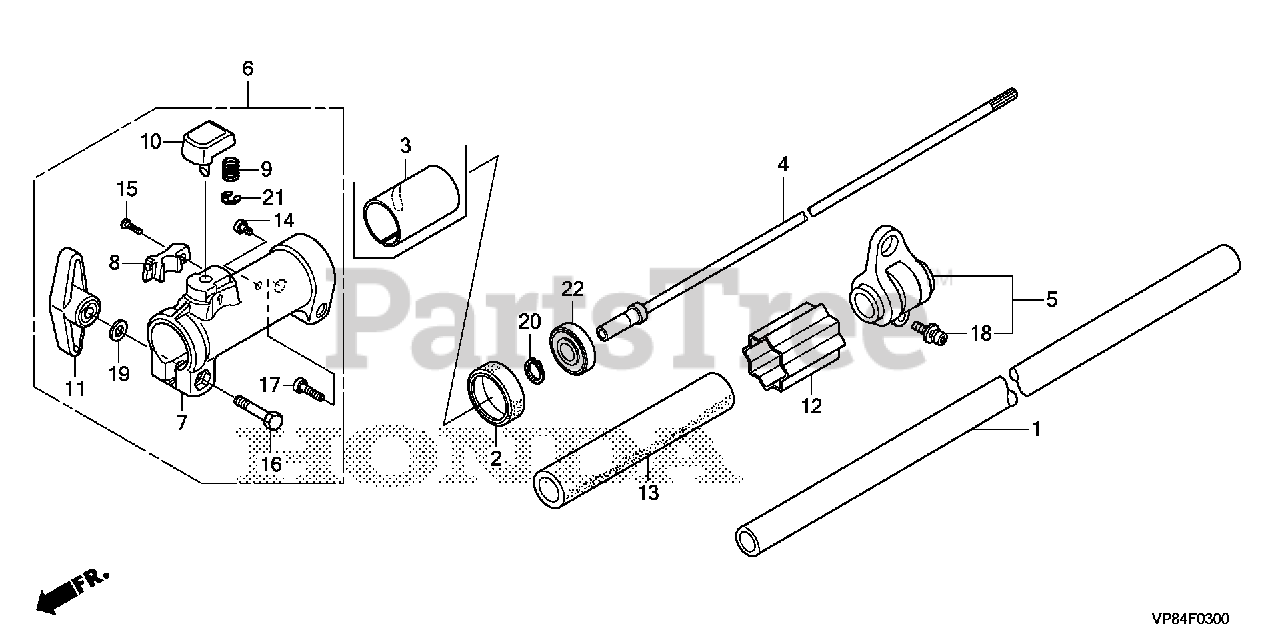

FRAME PIPE@JOINT CASE Parts Diagram

  • Title

1

Honda 40230-VP8-H01

SEE PART DETAILS - PRI; PIPE ASSY., FRAME

$65.99

$

Usually ships in 3-6 days

0

2

Honda 40232-VP8-003

COVER, BEARING

$10.99

$

Usually ships in 3-6 days

0

4

Honda 41411-VP8-003

SHAFT, DRIVE

$30.99

$

Usually ships in 3-6 days

0

5

Honda 50370-VL6-H31

HANGER ASSY.

$23.99

$

Usually ships in 3-6 days

0

6

Honda 51710-VP8-003

CASE ASSY., JOINT

$169.99

$

Usually ships in 3-6 days

0

7

Honda 51711-VP8-003

CASE, JOINT

$934.99

$

Usually ships in 3-6 days

0

8

Honda 51712-VP8-003

COVER, BUTTON

$

$

Not available

9

Honda 51713-VP8-003

SPRING

$

$

Not available

10

Honda 51714-VP8-003

BUTTON

$7.49

$

Usually ships in 3-6 days

0

11

Honda 51715-VP8-003

KNOB, JOINT CASE

$10.99

$

Usually ships in 3-6 days

0

12

Honda 53124-VL6-J41

COLLAR, HANDLE STOPPER

$3.99

$

Usually ships in 3-6 days

0

13

Honda 53125-VP8-H01

GRIP, HANDLE STOPPER

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90101-VL6-P31

BOLT, TORX (5X10)

$28.99

$

Usually ships in 3-6 days

0

15

Honda 90101-VP8-003

SCREW, PAN (3X10)

$

$

Not available

16

Honda 90102-VP8-003

BOLT, HEX. (6X35)

$63.99

$

Usually ships in 3-6 days

0

17

Honda 90103-VP8-003

BOLT, TORX (6X23)

$92.99

$

Usually ships in 3-6 days

0

18

Honda 90105-VL6-P31

BOLT-WASHER, TORX (5X22)

$4.49

$

In Stock, only 3 left!

0

19

Honda 90501-VP8-003

WASHER

$36.99

$

In Stock, only 1 left!

0

20

Honda 90651-VF9-A01

CIRCLIP (OUTER) (9MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 90651-VP8-003

E-RING

$994.99

$

Usually ships in 3-6 days

0

22

Honda 91051-VP8-003

BEARING, RADIAL BALL (609LL)

$9.99

$

Usually ships in 3-6 days

0
