UT-05041 - Homelite Dolly Kit Dolly Kit Parts Diagram

Dolly Kit

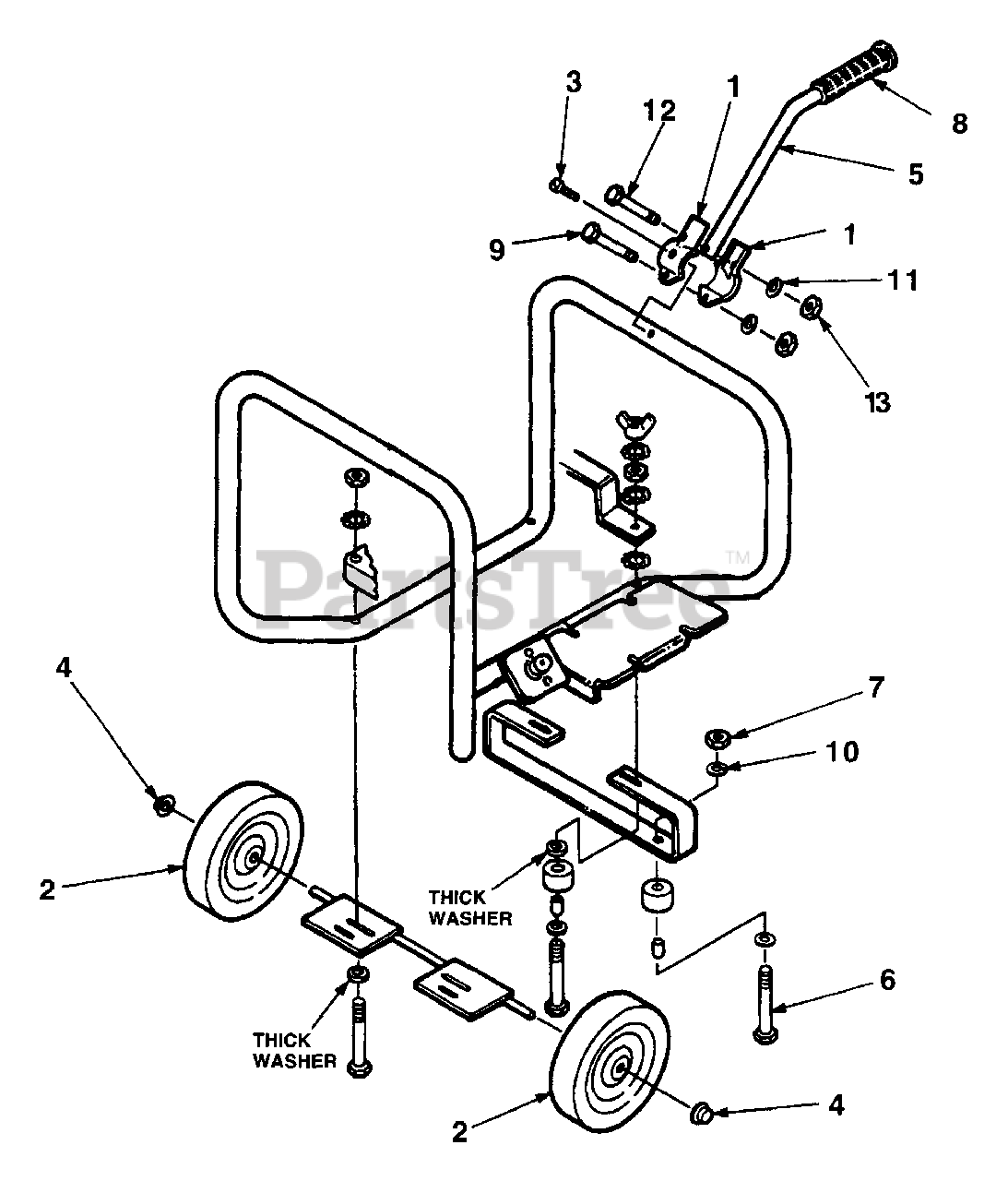

Dolly Kit Parts Diagram

  • Title

1

Homelite 004222

Clamp, Handle

$

$

Currently unavailable

2

Homelite JA124080

Wheel & Tire

$

$

Currently unavailable

3

Homelite JA375508

Screw. Thd. Form. (#10 x 3/4")

$

$

Currently unavailable

4

Homelite JA375509

Push Nut

$

$

Not available

5

Homelite A97709A

Handle

$

$

Not available

6

Homelite 80088

Screw, Hex Hd. (5/16-18 x 1 1/4")

$

$

Not available

7

Homelite 81162

Nut, Hex (5/16-18)

$

$

Not available

8

Homelite 94474A

Grip
(Superseded to 94474B)

$

$

Not available

9

Homelite 88078

SCREW- Hex Hd. (1/4-20 x 1")

$

$

Not available

10

Homelite 83002

Washer, Lock (5/16")
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 83061

Washer, Lock (1/4")

$

$

Not available

12

Homelite 88071

Screw, Hex Hd. (1/4-20 x 1 1/2")

$

$

Not available

13

Homelite 81267

Nut, Hex (1/4-20)

$

$

Not available
