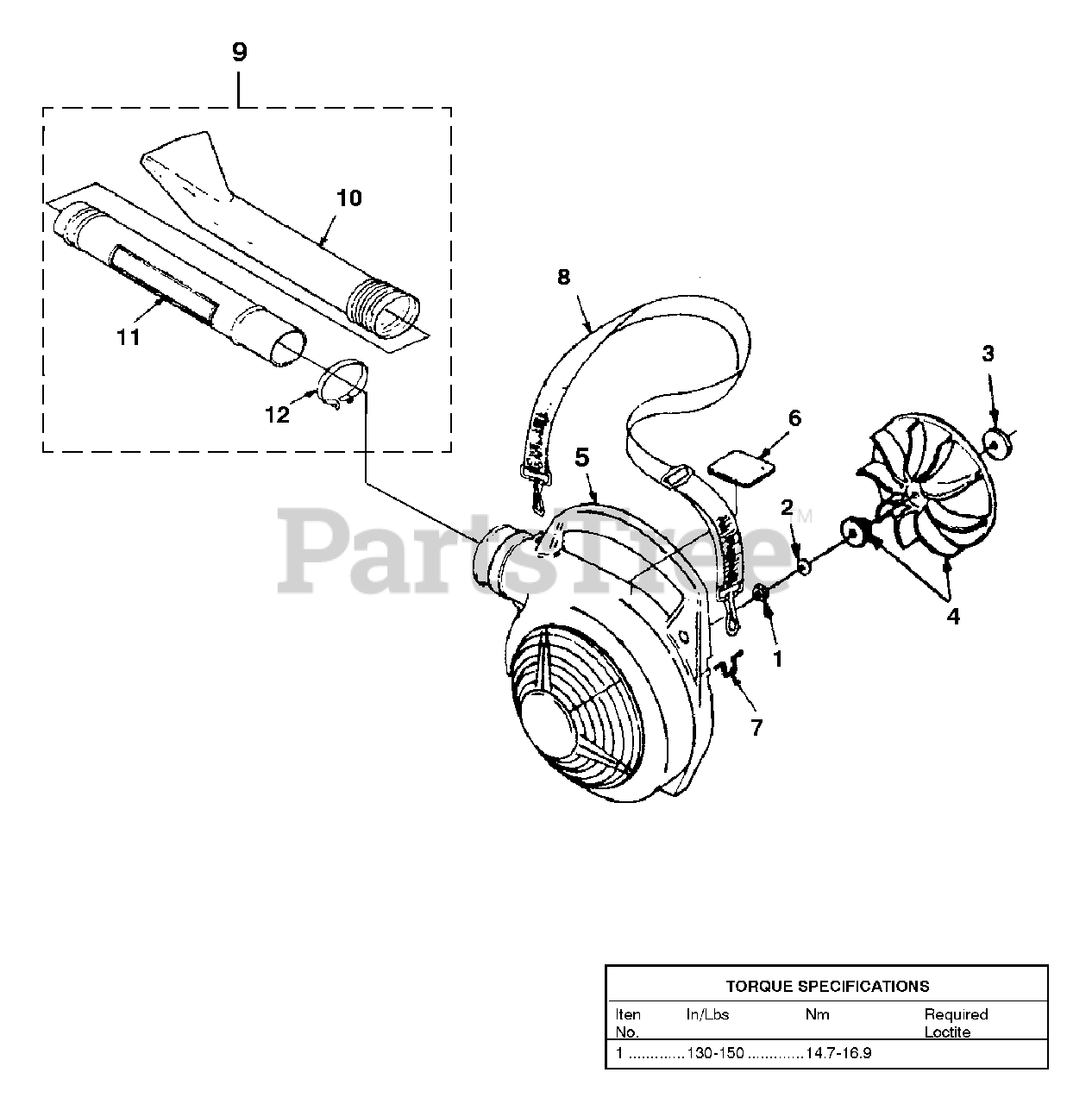

UT-08102 - Homelite Bandit 2000 Blower Volute, Fan & Tubes Parts Diagram

Bandit 2000 Blower

Volute, Fan & Tubes Parts Diagram

  • Title

1

Homelite 81124A

NUT-Hex (3/8-24)

$

$

Not available

2

Homelite 03163

WASHER-Bellville (3/8")

$

$

Not available

3

Homelite 03165

WASHER-Flat
(Superseded to 650016001)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite UP06826A

BLOWER FAN KIT
(Superseded to 000998274)

$

$

Not available

5

Homelite UP00757A

VOLUTE HOUSING (Outer)

Note: Includes item 6

$

$

Not available

6

Homelite 08483

DECAL-Warning

$

$

Not available

7

Homelite 00398

LOOP-Wire

$

$

Not available

8

Homelite 96337C

SHOULDER STRAP

$

$

Not available

9

Homelite UP06741A

BLOWER TUBE KIT

Note: Includes items 10-12

$

$

Not available

10

Homelite 00373A

NOZZLE-Sweeper
(Superseded to 580556001)

$

$

Not available

11

Homelite 00372B

TUBE

$

$

Not available

12

Homelite 00433B

CLAMP w/Fasteners
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0
