UT-08114 - Homelite Yard Sweeper Vac Blower, Eco Power Muffler And Air Cleaner Parts Diagram

Yard Sweeper Vac Blower, Eco Power

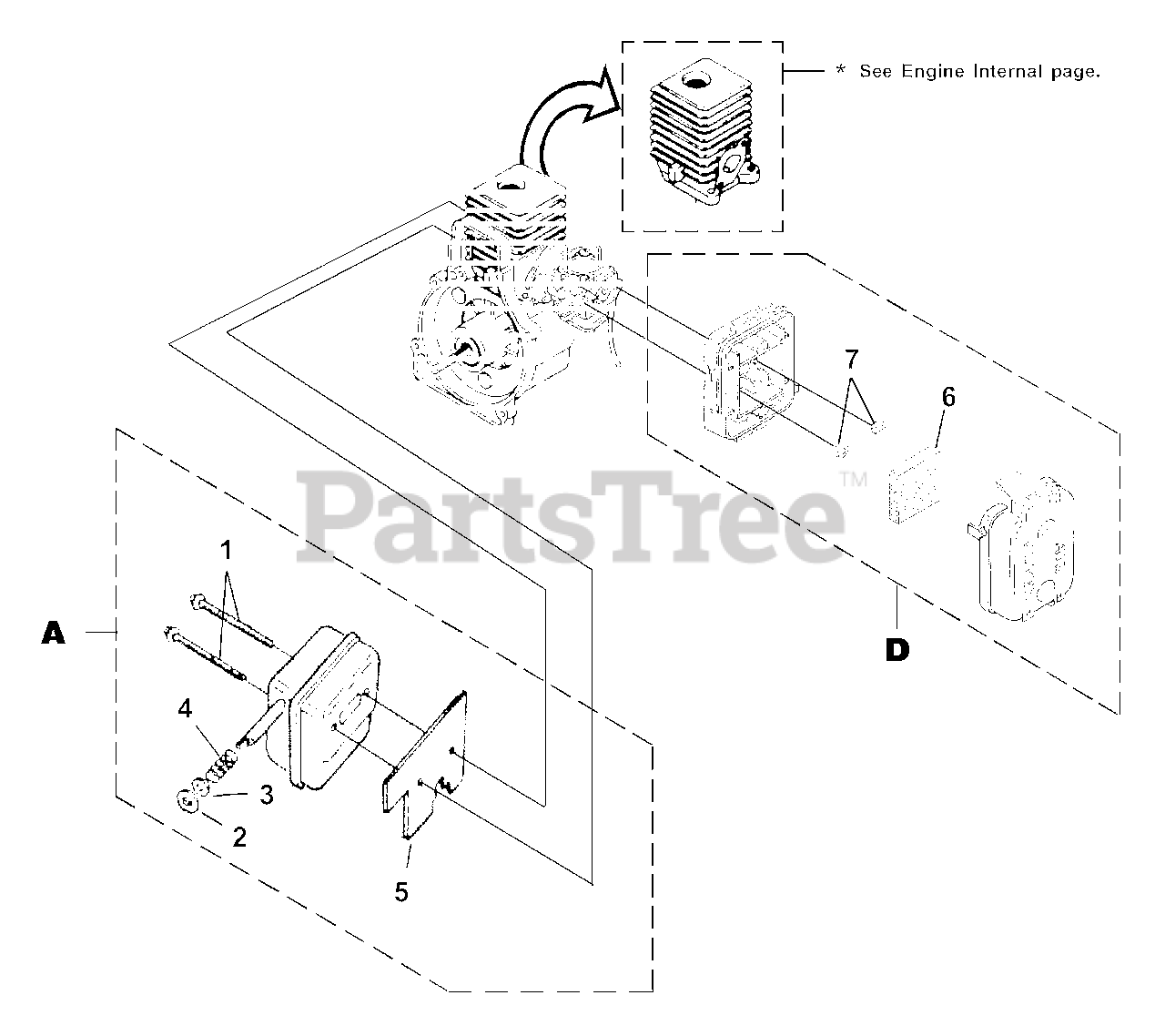

Muffler And Air Cleaner Parts Diagram

  • Title

A

Homelite UP06711

MUFFLER-Complete
(Superseded to PA01181)

Note: Includes items 1-5

$

$

Not available

1

Homelite UP03902

SCREW-Sems Hex Hd. (10-24 x 2 1/2")
(Superseded to 88060)

Note: Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm.

$1.49

$

Usually ships in 3-7 days

0

2

Homelite UP03813

WASHER-Insulating
(Superseded to 00381)

$

$

Not available

3

Homelite UP03901

WASHER-Flat
(Superseded to 84117)

$

$

Not available

4

Homelite UP03814

SPRING-Compression
(Superseded to 00387)

$

$

Not available

5

Homelite UP03817

GASKET-Muffler
(Superseded to 00394B)

Note: Also included with Short block & Cylinder Kits.

$

$

Not available

D

Homelite UP06715

AIR FILTER KIT

Note: Includes items 6-7

$

$

Currently unavailable

6

Homelite UP00012

AIR FILTER

$

$

Not available

7

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$

$

Not available
