UT-08120-D - Homelite Blower Internal Engine Parts Diagram

Blower

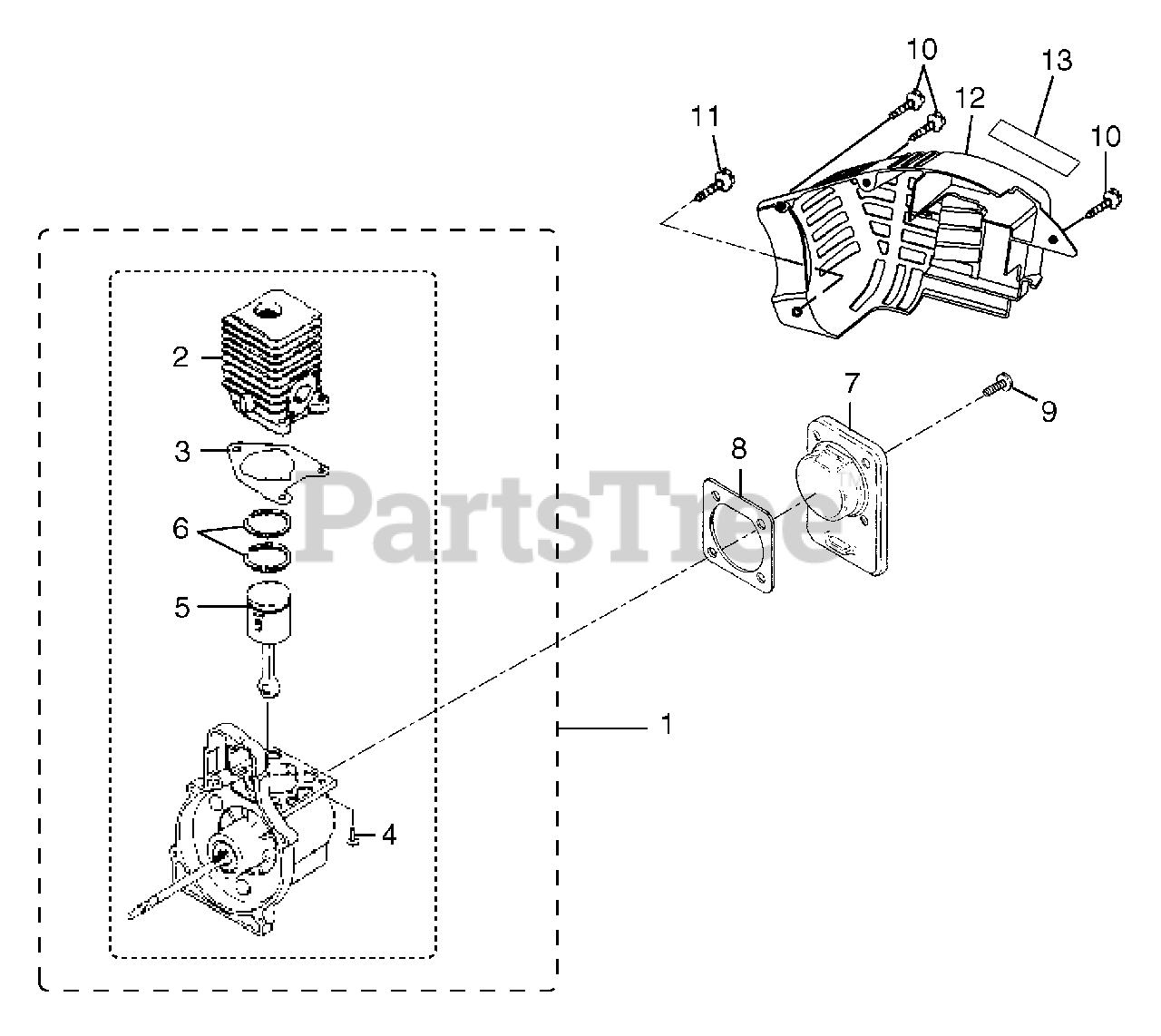

Internal Engine Parts Diagram

  • Title

1

Homelite 983928001

SHORT BLOCK (30cc)

Note: INCLUDES 2-6

$

$

Not available

2

Homelite 985524002

30cc CYLINDER
(Superseded to 640841008)

$

$

Not available

3

Homelite 985259001

CYLINDER GASKET
(Superseded to 900953001)

$

$

Not available

4

Homelite PS02807

SCREW (12-24 x 3/4 in. TOR x pan Hd.)

Note: PURCHASE LOCALLY

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 986119001

30cc PISTON ASSEMBLY

$26.99

$

Usually ships in 3-7 days

0

6

Homelite 03179

PISTON RING
(Superseded to 690161005)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite PS02130

CRANKCASE COVER

$

$

Not available

8

Homelite 06443A

CRan KCASE GASKET
(Superseded to 900954001)

$

$

Not available

9

Homelite PS01565

SCREW (10-24 x 9/16 in. pan Hd.)

Note: PURCHASE LOCALLY

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 82376

SCREW (#8 x 1/2 in. pan Hd.)
(Superseded to 660669001)

Note: PURCHASE LOCALLY

$1.49

$

In Stock, Qty 5

0

11

Homelite 82563

SCREW (#10 x 3/4 in. TORx TRUSS Hd.)

Note: PURCHASE LOCALLY

$1.49

$

In Stock, Qty 6

0

12

Homelite PS06314

SHROUD

$

$

Not available

13

Homelite 983924001

ZIP START DECAL

$

$

Not available
