UT-08121 - Homelite The BackPacker Blower Engine Internal Parts Diagram

The BackPacker Blower

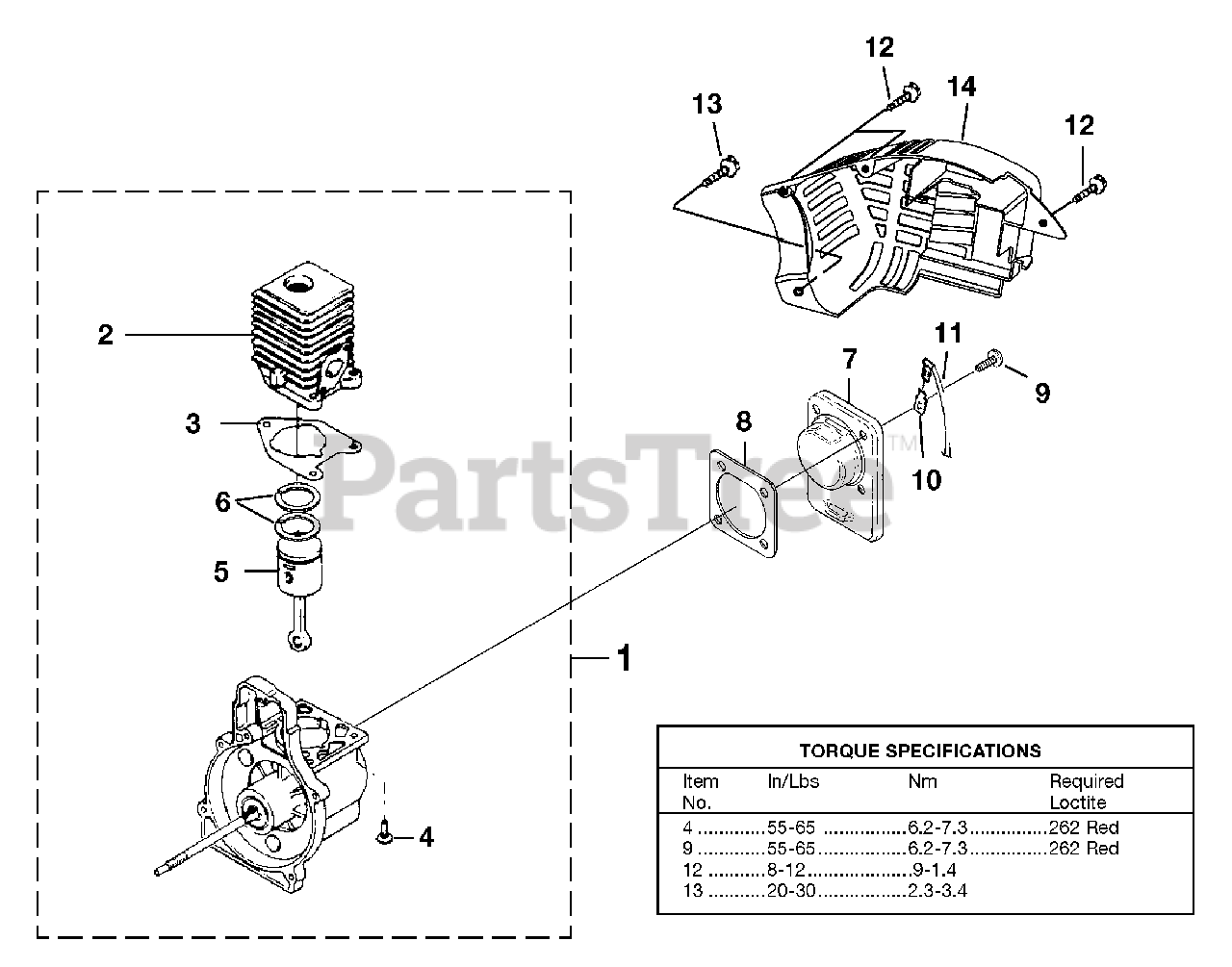

Engine Internal Parts Diagram

  • Title

1

Homelite 983928001

SHORT BLOCK (30cc)

Note: INCLUDES 1-6

$

$

Not available

2

Homelite 985524002

30 CC CYLINDER
(Superseded to 640841008)

$

$

Not available

3

Homelite 985259001

GASKET-Cylinder
(Superseded to 900953001)

$

$

Not available

4

Homelite PS02807

SCREW, SEMS (12-24 x 3/4)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 984543001

30 CC PISTON & ROD
(Superseded to UP06937A)

$26.99

$

Usually ships in 3-7 days

0

6

Homelite 985607001

RING-Piston

$9.99

$

In Stock, only 3 left!

0

7

Homelite PS02130

CRANKCASE COVER

$

$

Not available

8

Homelite 06443A

GASKET-Crankcase
(Superseded to 900954001)

$

$

Not available

9

Homelite PS01565

SCREW, SEMS (10-24 x .56)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 02851

TAB-Male

$

$

Not available

11

Homelite A07238

Lead-Ground to Handle
(Superseded to 290218001)

$

$

Not available

12

Homelite 82376

SCREW-Thread Form. (#8 X 1/2)
(Superseded to 660669001)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 82563

SCREW-Thread Form. (#10 X 3/4)

$2.49

$

In Stock, Qty 5

0

14

Homelite PS06314

Shroud

$

$

Not available
