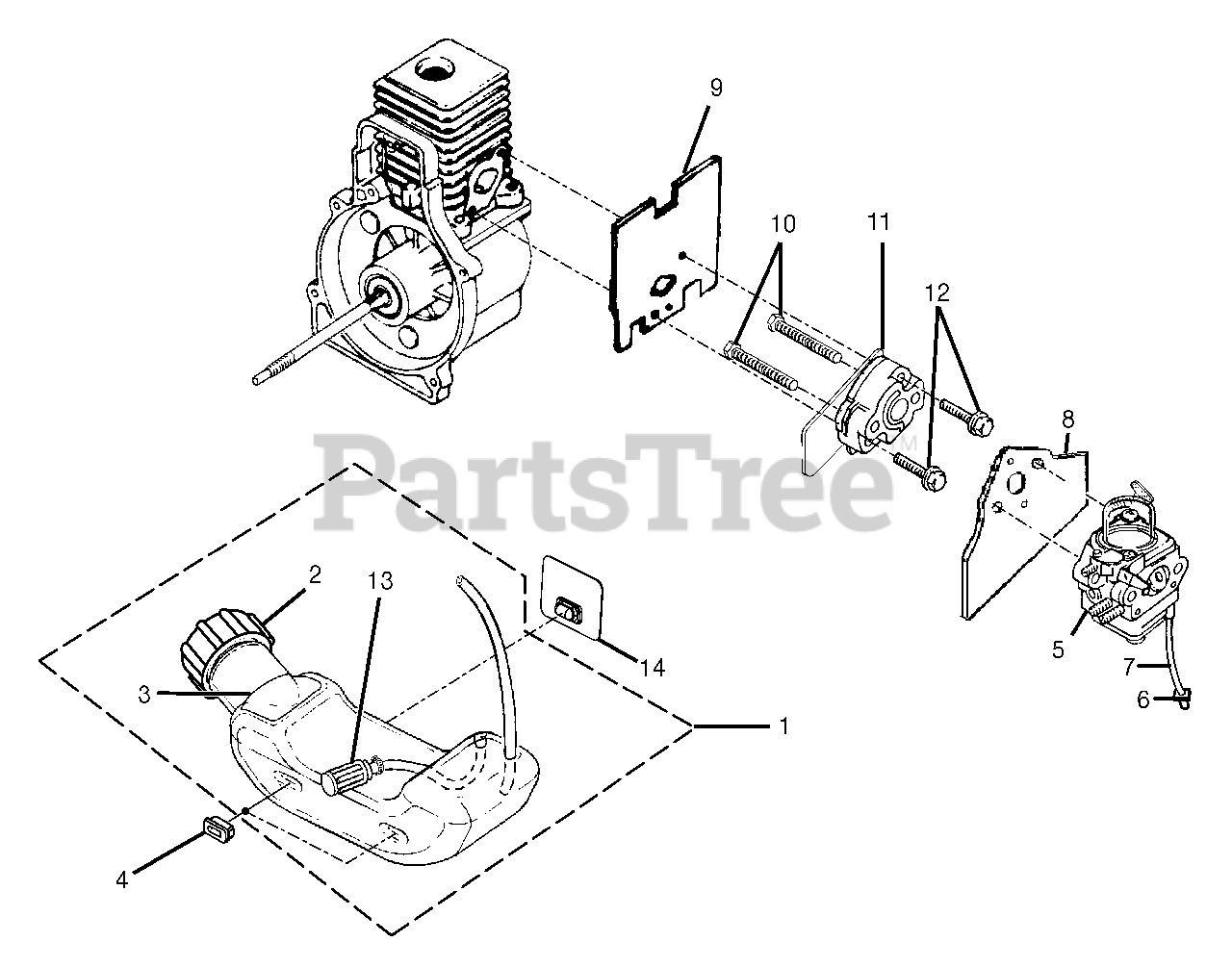

Yard Broom II Blower

Carburetor And Fuel tank Parts Diagram

  • Title

1

Homelite 308123004

FUEL TANK KIT

Note: INCLUDES 1-3

$

$

Not available

2

Homelite 300758006

FUEL TANK CAP

$

$

Not available

3

Homelite 900955001

HEAT SHIELD

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 570256001

RUBBER BUMPER
(Superseded to 98792)

$1.49

$

In Stock, only 3 left!

0

5

Homelite 308117002

CARBURETOR
(Superseded to 985609001)

$

$

Not available

6

Homelite 518086001

INLINE FUEL FITTING
(Superseded to 985304001)

$1.49

$

In Stock, Qty 17

0

7

Homelite 570259003

RUBBER TUBBING (3 in)

$

$

Not available

8

Homelite 900951001

CARBURETOR GASKET

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 900950001

HEAT DAM GASKET

$1.49

$

In Stock, only 3 left!

0

10

Homelite 660661001

SCREW (10-24 x 1 in HEX HD )
(Superseded to 04474)

Note: PURCHASE LOCALLY

$

$

Not available

11

Homelite 518070001

HEAT DAM

$

$

Not available

12

Homelite 660662001

SCREW (10-24 x 1110 in PAN HD)
(Superseded to 093221)

Note: PURCHASE LOCALLY

$

$

Not available

13

Homelite 308283001

FUEL FILTER KIT
(Superseded to 985077001)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 570549001

RUBBER BUMPER (LARGE)

$1.49

$

In Stock, only 1 left!

0
