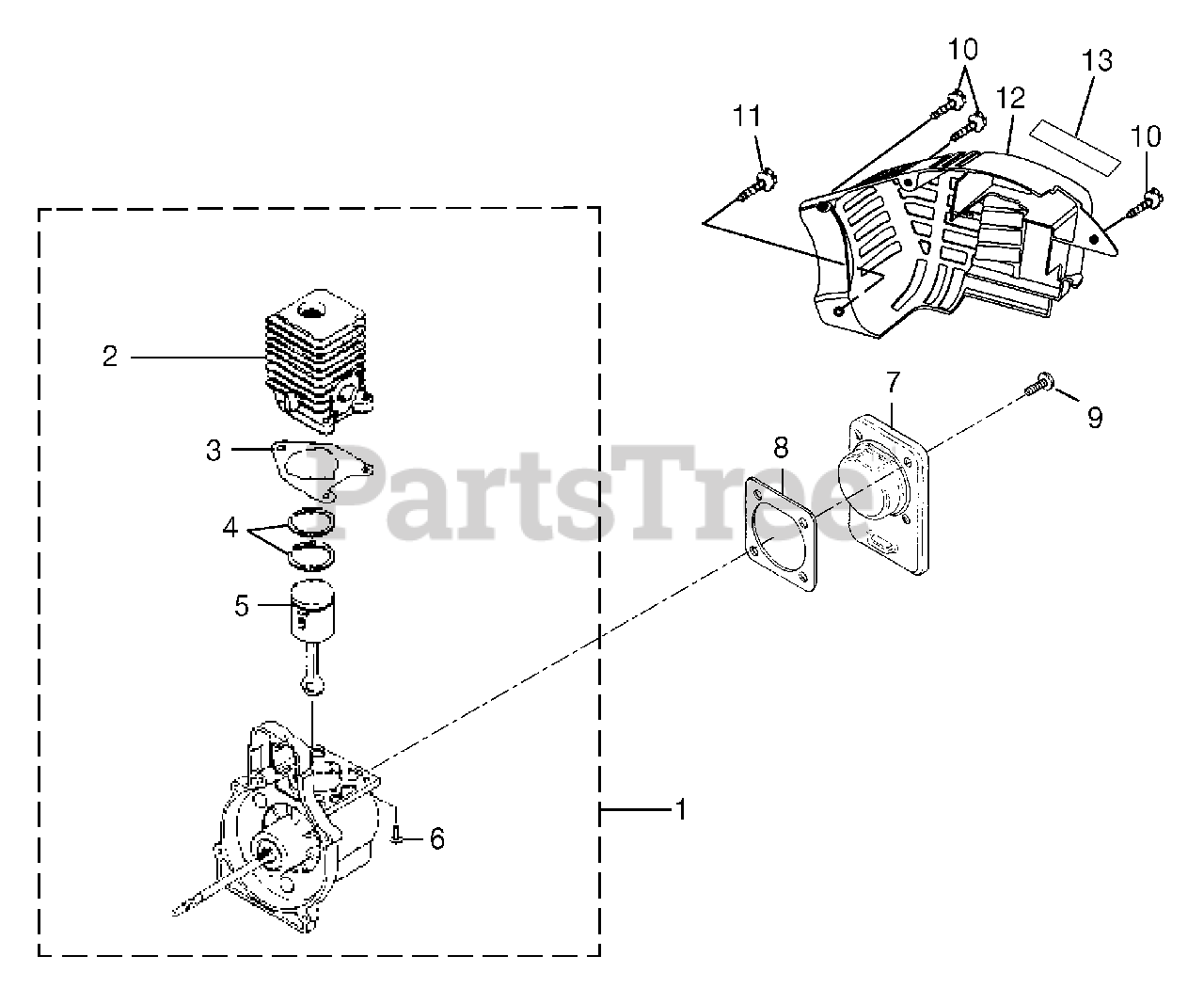

UT-08511 - Homelite Yard Broom II Blower Internal Engine Parts Diagram

Yard Broom II Blower

Internal Engine Parts Diagram

  • Title

1

Homelite 308099003

SHORT BLOCK (30cc)

Note: INCLUDES 1-6

$

$

Not available

2

Homelite 640841008

30cc CYLINDER
(Superseded to 985524002)

$

$

Not available

3

Homelite 900953001

CYLINDER GASKET

$

$

Not available

4

Homelite 678001001

PISTON RING (30CC)
(Superseded to 985607001)

$9.99

$

In Stock, only 3 left!

0

5

Homelite 308282001

30cc PISTON AND ROD
(Superseded to 308119002)

$15.99

$

Usually ships in 3-7 days

0

6

Homelite 660663001

SCREW (12-24 x 660 in TORX PAN HD)
(Superseded to PS02807)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 638031001

CRANKCASE COVER
(Superseded to PS02130)

$

$

Not available

8

Homelite 900954001

CRANKCASE GASKET

$

$

Not available

9

Homelite 660664001

SCREW (10-24 x 9/16 in PAN HD)
(Superseded to PS01565)

Note: PURCHASE LOCALLY

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 660669001

SCREW (#8 x 1/2 in PAN HD)

Note: PURCHASE LOCALLY

$2.49

$

In Stock, only 3 left!

0

11

Homelite 660629001

SCREW (#10 x 3/4 in TORX TRUSS HD)
(Superseded to 82563)

Note: PURCHASE LOCALLY

$2.49

$

In Stock, Qty 6

0

12

Homelite 518079001

SHROUD

$

$

Not available

13

Homelite 940299488

ZIP START DECAL
(Superseded to 983924001)

$

$

Not available
