UT-08542 - Homelite Vac Attack II Blower Figure A Parts Diagram

Vac Attack II Blower

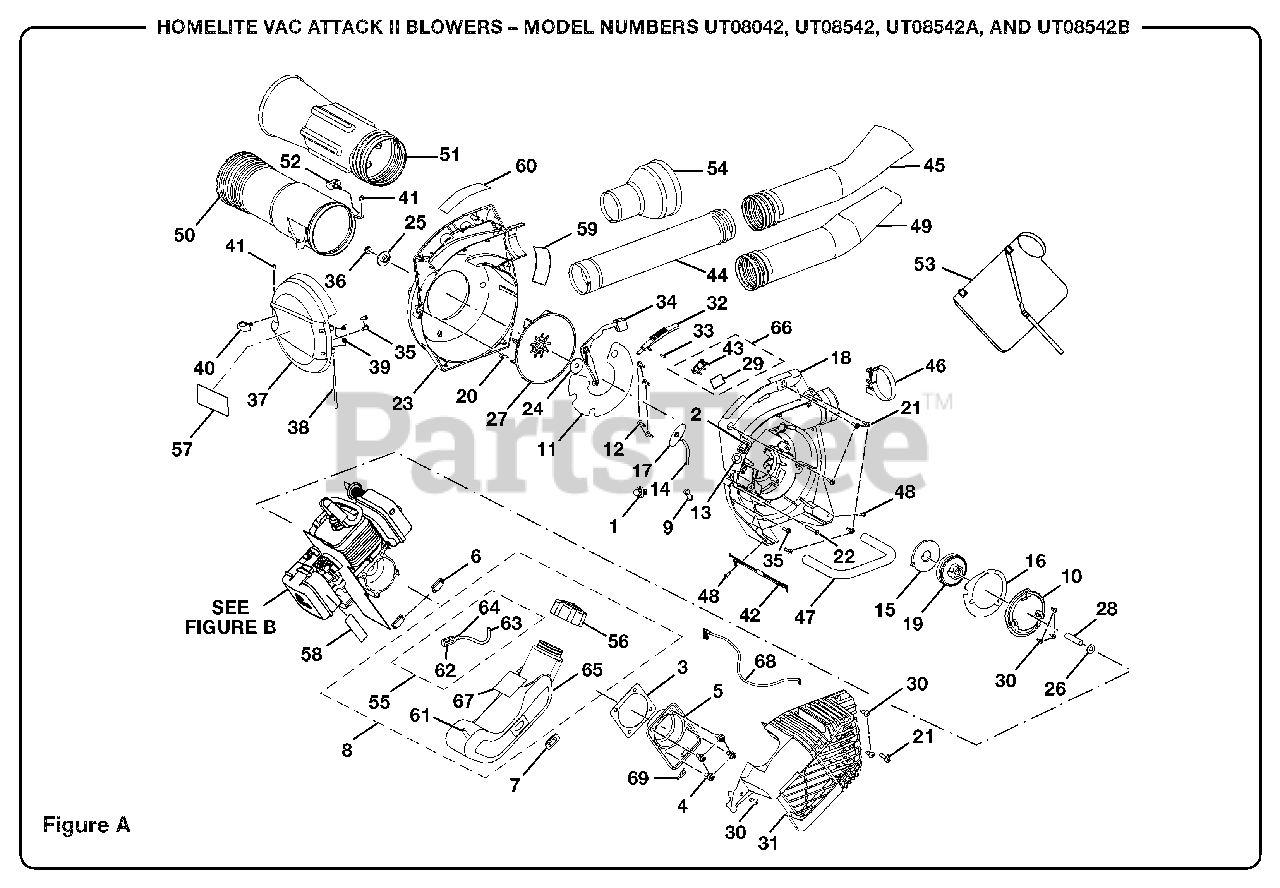

Figure A Parts Diagram

  • Title

1

Homelite 308088001

PRIMER BULB
(Superseded to 01183)

$

$

Not available

2

Homelite 760363002

SWITCH
(Superseded to PS02764)

$

$

Not available

3

Homelite 900954001

CRANKCASE GASKET

$

$

Not available

4

Homelite 660664001

SCREW (10-24 x 9/16 in. PAN HD.)
(Superseded to PS01565)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 638031001

CRANKCASE COVER
(Superseded to PS02130)

$

$

Not available

6

Homelite 570256001

RUBBER BUMPER
(Superseded to 98792)

$1.49

$

In Stock, only 3 left!

0

7

Homelite 570549001

BIG BUMPER

$1.49

$

In Stock, only 1 left!

0

8

Homelite 308123004

FUEL TANK ASSEMBLY

Note: (INC. KEY NOS. 55-56, 61 AND 65)

$

$

Not available

9

Homelite 650013001

BUSHING-STARTER ROPE

$

$

Not available

10

Homelite 638032001

BAFFLE PLATE
(Superseded to PS00326)

$1.49

$

In Stock, only 1 left!

0

11

Homelite 650023001

INNER VOLUTE SEAL

$

$

Not available

12

Homelite 660630002

SCREW (10-24 x 3/4 in. TRUSS HD.)
(Superseded to 82538)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 650014001

BUSHING STARTER
(Superseded to 969811A)

$

$

Not available

14

Homelite 900849004

STARTER ROPE
(Superseded to 900849001)

$1.49

$

In Stock, only 4 left!

0

15

Homelite 638033001

SPRING & CONTAINER

$3.49

$

In Stock, only 3 left!

0

16

Homelite 900957001

BAFFLE GASKET
(Superseded to 985261001)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 518073001

STARTER GRIP
(Superseded to PS01200)

$1.49

$

In Stock, only 3 left!

0

18

Homelite 518249001

INNER VOLUTE HOUSING

$

$

Not available

19

Homelite 308134001

PULLEY ASSEMBLY
(Superseded to 308386001)

$

$

Not available

20

Homelite 638074001

WIRE LOOP
(Superseded to 00398)

$

$

Not available

21

Homelite 660629001

SCREW (10-14 x 3/4 in. TORX TRUSS HD.)
(Superseded to 82563)

Note: Purchase locally

$1.49

$

In Stock, Qty 6

0

22

Homelite 660667001

SCREW (10 x 1-5/8 in. HEX HD.)
(Superseded to JA416903)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 518250001

OUTER VOLUTE

$

$

Not available

24

Homelite 650016001

FLAT WASHER

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 640858001

FAN ADAPTOR

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 650017001

FLAT WASHER
(Superseded to PS05268)

$1.49

$

In Stock, only 1 left!

0

27

Homelite 518077001

FAN
(Superseded to PS02931)

$

$

Not available

28

Homelite 650018001

FAN SPACER

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 570581004

SCREEN

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 660669001

SCREW (#8 x 1/2 in. PAN HD.)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

31

Homelite 518251001

BLOWER SHROUD

$

$

Not available

32

Homelite 518211001

SLIDE

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 348007001

SLIDE PIN

$

$

Not available

34

Homelite 518247001

TRIGGER

$

$

Not available

35

Homelite 660618001

SCREW (10-24 x 3/4 in. TORX TRUSS HD.)
(Superseded to 82541)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

36

Homelite 660730001

LOCK NUT (3/8-24)

Note: Purchase locally

$1.49

$

In Stock, only 1 left!

0

37

Homelite 518078002

DOOR

$

$

Not available

38

Homelite 650026001

DOOR HINGE SHAFT
(Superseded to 983862001)

$

$

Not available

39

Homelite 638064001

DOOR HINGE SPRING

$

$

Not available

40

Homelite 518066002

BLOWER KNOB

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 650027001

E-RING

$1.49

$

In Stock, Qty 5

0

42

Homelite 290195004

WIRING HARNESS

$2.99

$

Usually ships in 3-7 days

0

43

Homelite 518229001

SCREEN COVER

$

$

Not available

44

Homelite 580555001

UPPER TUBE
(Superseded to 983916001)

$

$

Not available

45

Homelite 580556001

LOWER NOZZLE

$

$

Not available

46

Homelite 348005003

CLAMP

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 650024001

LOWER HANDLE
(Superseded to 983918001)

$

$

Not available

48

Homelite 660676001

SCREW
(Superseded to UT15519D-18)

Note: (TAP PAN HD.)

$1.49

$

Usually ships in 3-7 days

0

49

Homelite 580559001

SWEEPER NOZZLE
(Superseded to 983913001)

$

$

Not available

50

Homelite 580560001

UPPER VACUUM TUBE

$

$

Not available

51

Homelite 580561001

LOWER VACUUM TUBE
(Superseded to 08202)

$

$

Not available

52

Homelite 518066001

BLOWER KNOB
(Superseded to 983898001)

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 900960001

LEAF BAG

$13.99

$

Usually ships in 3-7 days

0

54

Homelite 580562001

VACUUM BAG TUBE

$

$

Not available

55

Homelite 308283001

FUEL FILTER KIT
(Superseded to 985077001)

Note: (INC. KEY NOS. 62-64)

$5.49

$

In Stock, only 1 left!

0

56

Homelite 300758006

FUEL CAP ASSEMBLY

$

$

Not available

57

Homelite 940299495

DOOR LABEL

Note: (VAC ATTACK)

$

$

Not available

58

Homelite 940647001

CHOKE LABEL

$1.49

$

Usually ships in 3-7 days

0

59

Homelite 940299493

FAN INTAKE WARNING LABEL
(Superseded to 983912001)

$

$

Not available

60

Homelite 940642005

WARNING/STARTING LABEL

$

$

Not available

61

Homelite 570259005

RUBBER TUBING (196.85 mm)

$1.49

$

In Stock, only 4 left!

0

62

Homelite 300759003

FUEL FILTER

$

$

Not available

63

Homelite 570258003

RUBBER TUBING (114.3 mm)

$2.99

$

In Stock, only 4 left!

0

64

Homelite 690765001

WIRE CLAMP

$1.49

$

In Stock, Qty 6

0

65

Homelite 580553002

FUEL TANK

$4.99

$

In Stock, only 2 left!

0

66

Homelite 900961003

SCREEN COVER & NETTING ASSEMBLY

Note: (INC. KEY NOS. 29 & 43)

$1.49

$

Usually ships in 3-7 days

0

67

Homelite 900955001

HEAT SHIELD

$1.49

$

Usually ships in 3-7 days

0

68

Homelite 290218001

LEAD W/TERMINALS

$

$

Not available

69

Homelite 638081001

MALE TAB

$1.49

$

Usually ships in 3-7 days

0

Homelite 983000594

OPERATOR'S MANUAL

Note: (UT08042 & UT08542)

$

$

Not available

Homelite 983000781

OPERATOR'S MANUAL

Note: (UT08542A)

$

$

Not available

Homelite 983000950

OPERATOR'S MANUAL

Note: (UT08542B)

$

$

Not available

Homelite 983000594R

REPAIR SHEET

Note: (REV:05)

$

$

Currently unavailable
