UT-08550 - Homelite Mightylite Blower Vac, 26cc Figure A Parts Diagram

Mightylite Blower Vac, 26cc

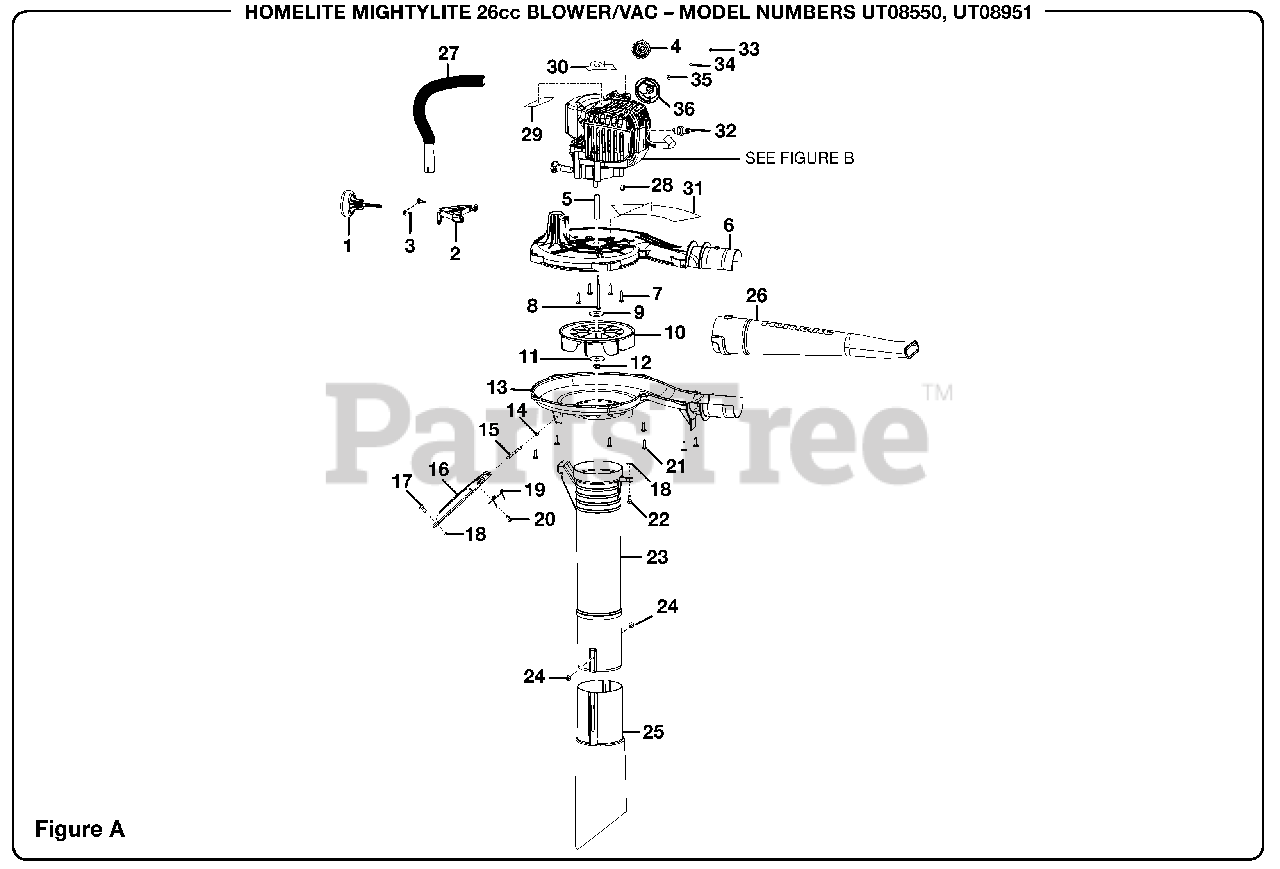

Figure A Parts Diagram

  • Title

1

Homelite 518593001

Handle Knob

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 518592001

Handle Adaptor

$

$

Not available

3

Homelite 660970002

Screw (M4, special)

$1.49

$

In Stock, only 1 left!

0

4

Homelite 308680001

Fuel Cap Assembly

$2.49

$

In Stock, only 1 left!

0

5

Homelite 638091006

Spacer (55 mm)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 518582001

Upper Volute

$

$

Not available

7

Homelite 660674001

Screw (10-14 x 7/8 in.)
(Superseded to 82537)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 660970004

Screw (M4, special)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 678126005

Washer

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 518581001

Fan

$6.49

$

Usually ships in 3-7 days

0

11

Homelite 650016001

Flat Washer

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 660730001

Hex Nut (3/8-24)

Note: Purchase locally

$1.49

$

In Stock, only 1 left!

0

13

Homelite 518571001

Lower Volute

$22.99

$

Usually ships in 3-7 days

0

14

Homelite 678353001

E-Ring (4 mm)
(Superseded to 986165001)

$1.49

$

In Stock, only 3 left!

0

15

Homelite 678514001

Pin

$

$

Not available

16

Homelite 518570001

Vacuum Door

$

$

Not available

17

Homelite 660880002

Screw (1/4-20, special)

$

$

Not available

18

Homelite 650027001

E-Ring

$1.49

$

In Stock, Qty 5

0

19

Homelite 678513001

Torsion Spring

$

$

Not available

20

Homelite 660618001

Screw (10-14 x 1/2 in.)
(Superseded to 82541)

Note: Purchase locally

$1.49

$

In Stock, only 3 left!

0

21

Homelite 660629001

Screw (10-14 x 3/4 in., Torx T.F.)
(Superseded to 82563)

Note: Purchase locally

$1.49

$

In Stock, Qty 6

0

22

Homelite 660880001

Screw (1/4-20, special)

$1.99

$

In Stock, only 3 left!

0

23

Homelite 580807001

Upper Vacuum Tube

$

$

Not available

24

Homelite 660621001

Screw (10-24 x 1/2 in.,Truss Head Slotted Torx)
(Superseded to 82632)

Note: Purchase locally

$1.49

$

In Stock, Qty 12

0

25

Homelite 580808001

Lower Vacuum Tube

$

$

Not available

26

Homelite 580843001

Blower Tube

$

$

Not available

27

Homelite 901204001

Foam Grip and Handle Assembly

$10.99

$

Usually ships in 3-7 days

0

28

Homelite 678190002

Hex Nut (1/4-20)

Note: Purchase locally

$1.49

$

In Stock, only 1 left!

0

29

Homelite 940755003

Logo Label

$

$

Not available

30

Homelite 940647012

Choke Label

$

$

Not available

31

Homelite 940734015

Starting Label

$

$

Not available

32

Homelite 870174001

Spark Plug

Note: (Champion RCJ6Y); Purchase locally

$4.99

$

In Stock, Qty 20+

0

33

Homelite 678435001

Lock Nut (M4)

Note: Purchase locally

$

$

Not available

34

Homelite 678434002

Wavy Washer (M4)

Note: Purchase locally

$1.49

$

In Stock, only 2 left!

0

35

Homelite 678434001

Washer (M4)

Note: Purchase locally

$

$

Not available

36

Homelite 518496001

Choke Dial Cover

$2.49

$

Usually ships in 3-7 days

0

Homelite 987000050

Operator's Manual (960704001)

$

$

Not available
