UT-08934-D - Homelite Blower Internal Engine Parts Diagram

Blower

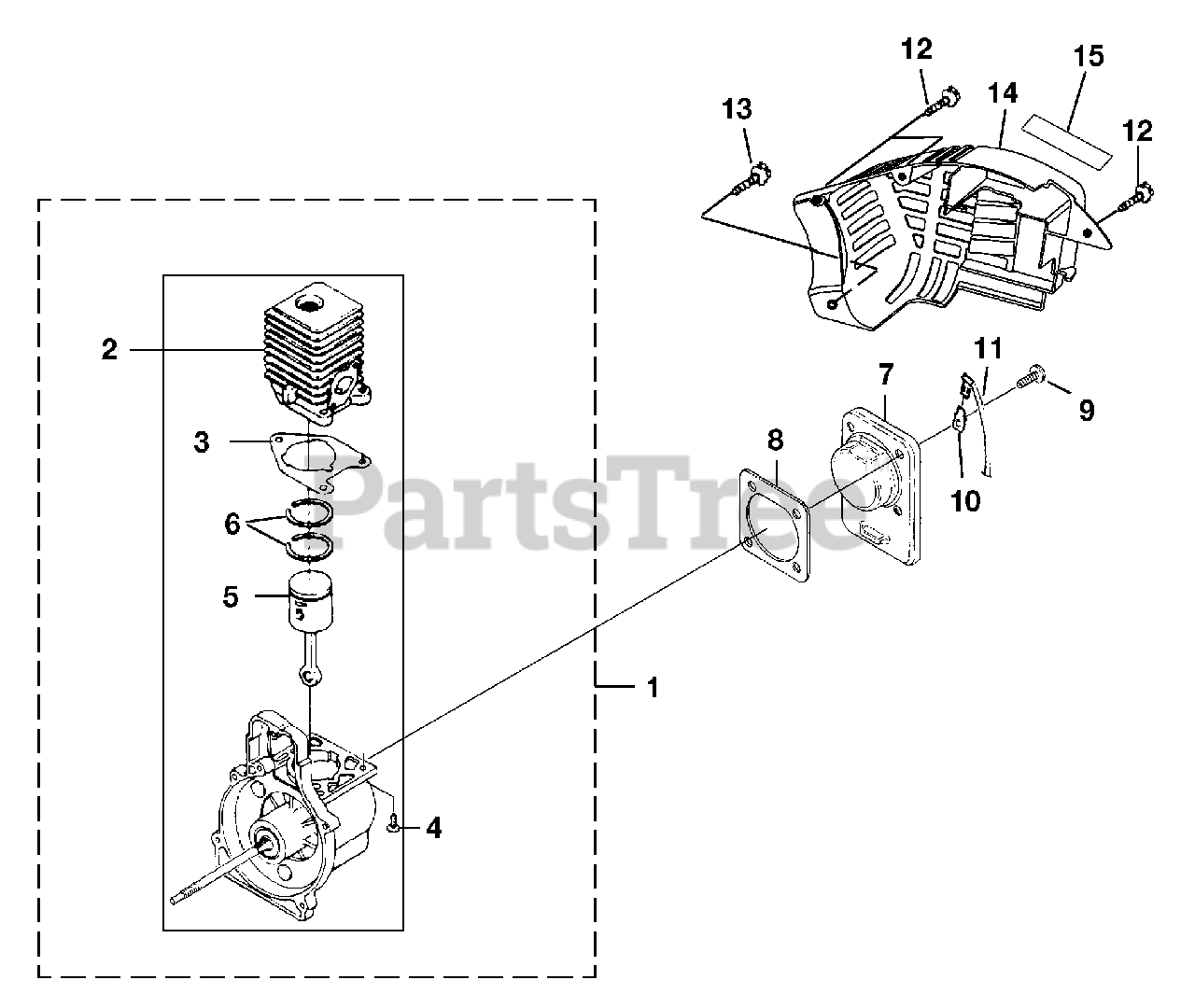

Internal Engine Parts Diagram

  • Title

1

Homelite 983928001

SHORT BLOCK (30cc)

Note: INCLUDES 1-6

$

$

Not available

2

Homelite 985524002

30cc CYLINDER
(Superseded to 640841008)

$

$

Not available

3

Homelite 985259001

CYLINDER GASKET
(Superseded to 900953001)

$

$

Not available

4

Homelite PS02807

SCREW (12-24 x 3/4 in. TOR x PAN HD.)

Note: PURCHASE LOCALLY

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 986119001

30cc PISTON ASSEMBLY

$52.99

$

Usually ships in 3-7 days

0

6

Homelite 03179

PISTON RING
(Superseded to 690161005)

$

$

Not available

7

Homelite PS02130

CRANKCASE COVER

$

$

Not available

8

Homelite 06443A

CRANKCASE GASKET
(Superseded to 900954001)

$

$

Not available

9

Homelite PS01565

SCREW (10-24 x 9/16 in. PAN HD .)

Note: PURCHASE LOCALLY

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 02851

MALE TAB

$

$

Not available

11

Homelite A07238

LEAD-GROUND TO HANDLE
(Superseded to 290218001)

$

$

Not available

12

Homelite 82376

SCREW (#8 x 1/2 in. PAN HD.)
(Superseded to 660669001)

Note: PURCHASE LOCALLY

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 82563

PURCHASE LOCALLY

Note: SCREW (#10 x 3/4 in. TORx TRUSS HD.)

$2.49

$

In Stock, Qty 5

0

14

Homelite PS06314

SHROUD

$

$

Not available

15

Homelite 983924001

ZIP START DECAL

$

$

Not available
