UT-10518 - Green Machine Chainsaw Figure A Parts Diagram

Chainsaw

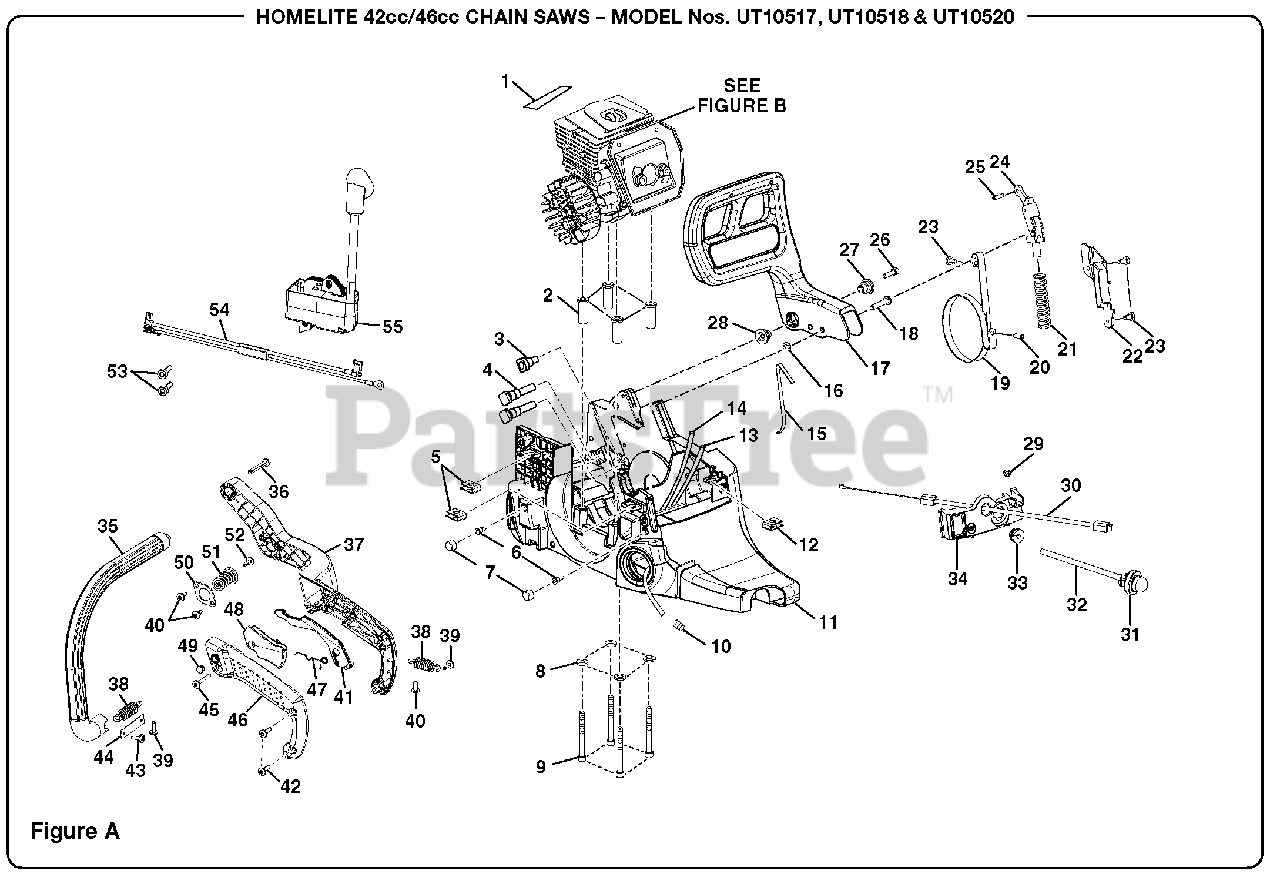

Figure A Parts Diagram

  • Title

1

Homelite 700106001

Fuel Pump

$

$

Not available

2

Homelite 671087001

Rubber Tubing

$

$

Not available

3

Homelite 570226001

Split Grommet

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 660628001

Control Panel, Black
(Superseded to PS04881)

$

$

Not available

5

Homelite 671077001

Control Panel, Gray
(Superseded to 07598)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 560955001

Front Handle, Black

$1.99

$

In Stock, Qty 10

0

7

Homelite 671088001

Front Handle, Gray

$

$

Not available

8

Homelite 671080001

Screw (12-14 x 1 1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 660622001

Rear Handle, Black

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 690765001

Rear Handle, Gray

$1.49

$

In Stock, Qty 6

0

11

Homelite 300951004

Extension Spring

Note: (UT10517)

$

$

Not available

Homelite 300951014

Screw (10-14 x 5/8 in.)

Note: (UT10518/UT10520)

$35.99

$

Usually ships in 3-7 days

0

12

Homelite 671077002

Screw (10-14 x 1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 570247002

Lockout Throttle, Yellow
(Superseded to 0745422)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 570247003

Lockout Throttle, Black
(Superseded to 0745434)

$

$

Not available

15

Homelite 638024001

Screw (10-14 x 3/4 in.)

$1.49

$

In Stock, only 4 left!

0

16

Homelite 671075001

Screw (10-14 Thread Twin Helix)
(Superseded to 69599)

$

$

Not available

17

Homelite 511723101

Spring Retainer
(Superseded to 07386B)

Note: (UT10517)

$6.49

$

In Stock, only 1 left!

0

Homelite 511723111

Screw (10-14 x 1 3/8 in.)
(Superseded to 07386B)

Note: (UT10518/UT10520)

$6.49

$

In Stock, only 1 left!

0

18

Homelite 620282001

Handle Cover, Black

$1.49

$

In Stock, Qty 20+

0

19

Homelite 631063002

Handle Cover, Gray
(Superseded to 985030001)

$

$

Not available

20

Homelite 671095001

Torsion Ring

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 678113001

Trigger, Yellow
(Superseded to 984679001)

$

$

Not available

22

Homelite 511720002

Trigger, Black
(Superseded to 985021001)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 660634001

Plug, Black

$1.49

$

In Stock, Qty 20+

0

24

Homelite 300954001

Plug, Gray
(Superseded to A07612A)

$

$

Not available

25

Homelite 671099001

Isolator Plate

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 660635001

Isolator Spring

$1.49

$

In Stock, only 3 left!

0

27

Homelite 671096001

Screw (10-24 x 5/8 in.)

$1.49

$

In Stock, only 1 left!

0

28

Homelite 671097001

Screw (8-32 x 5/8 in.)

$1.49

$

In Stock, only 1 left!

0

29

Homelite 631034002

Ignition Switch Harness

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 900885001

Ignition Kit

$2.49

$

In Stock, Qty 6

0

31

Homelite 308088001

Fuel Pump
(Superseded to 01183)

$

$

Not available

32

Homelite 570247004

Rubber Tubing
(Superseded to 0745410)

$

$

Not available

33

Homelite 570227001

Split Grommet

$1.49

$

In Stock, only 2 left!

0

34

Homelite 518044002

Control Panel, Black

Note: (UT10517)

$

$

Not available

Homelite 518044012

Control Panel, Gray

Note: (UT10518/UT10520)

$2.99

$

Usually ships in 3-7 days

0

35

Homelite 511724001

Front Handle, Black
(Superseded to 511724011)

Note: (UT10517)

$

$

Not available

Homelite 511724011

Front Handle, Gray

Note: (UT10518/UT10520)

$

$

Not available

36

Homelite 660631001

Screw (12-14 x 1 1/2 in.)
(Superseded to 82615)

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 511721004

Rear Handle, Black

Note: (UT10517)

$6.99

$

Usually ships in 3-7 days

0

Homelite 511721014

Rear Handle, Gray

Note: (UT10518/UT10520)

$6.99

$

Usually ships in 3-7 days

0

38

Homelite 671101001

Extension Spring

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 660632001

Screw (10-14 x 5/8 in.)
(Superseded to 82621)

$

$

Not available

40

Homelite 660618001

Screw (10-14 x 1/2 in.)
(Superseded to 82541)

$1.49

$

In Stock, Qty 5

0

41

Homelite 518051003

Lockout Throttle, Yellow

Note: (UT10517)

$

$

Not available

Homelite 518051013

Lockout Throttle, Black

Note: (UT10518/UT10520)

$

$

Not available

42

Homelite 660629001

Screw (10-14 x 3/4 in.)
(Superseded to 82563)

$1.49

$

In Stock, Qty 6

0

43

Homelite 660719001

Screw (10-14 Thread Twin Helix)

$1.49

$

In Stock, only 4 left!

0

44

Homelite 631050001

Spring Retainer

$

$

Not available

45

Homelite 660633001

Screw (10-14 x 1 3/8 in.)
(Superseded to 82622)

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 511722003

Handle Cover, Black

Note: (UT10517)

$1.99

$

Usually ships in 3-7 days

0

Homelite 511722013

Handle Cover, Gray

Note: (UT10518/UT10520)

$

$

Not available

47

Homelite 678037001

Torsion Ring
(Superseded to PS04914)

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 518052001

Trigger, Yellow

Note: (UT10517)

$1.49

$

Usually ships in 3-7 days

0

Homelite 518052011

Trigger, Black

Note: (UT10518/UT10520)

$1.49

$

Usually ships in 3-7 days

0

49

Homelite 518050001

Plug, Black
(Superseded to PS04932)

Note: (UT10517)

$

$

Not available

Homelite 518050011

Plug, Gray

Note: (UT10518/UT10520)

$

$

Not available

50

Homelite 631051001

Isolator Plate

$

$

Not available

51

Homelite T671980001

Isolator Spring
(Superseded to PS05199)

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 660630001

Screw (10-24 x 5/8 in.)

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 660639001

Screw (8-32 x 5/8 in.)

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 290195003

Ignition Switch Harness

$3.99

$

Usually ships in 3-7 days

0

55

Homelite 300953001

Ignition Kit
(Superseded to PS03634)

$

$

Not available
