UT-10518 - Green Machine Chainsaw General Assembly Parts Diagram

Chainsaw

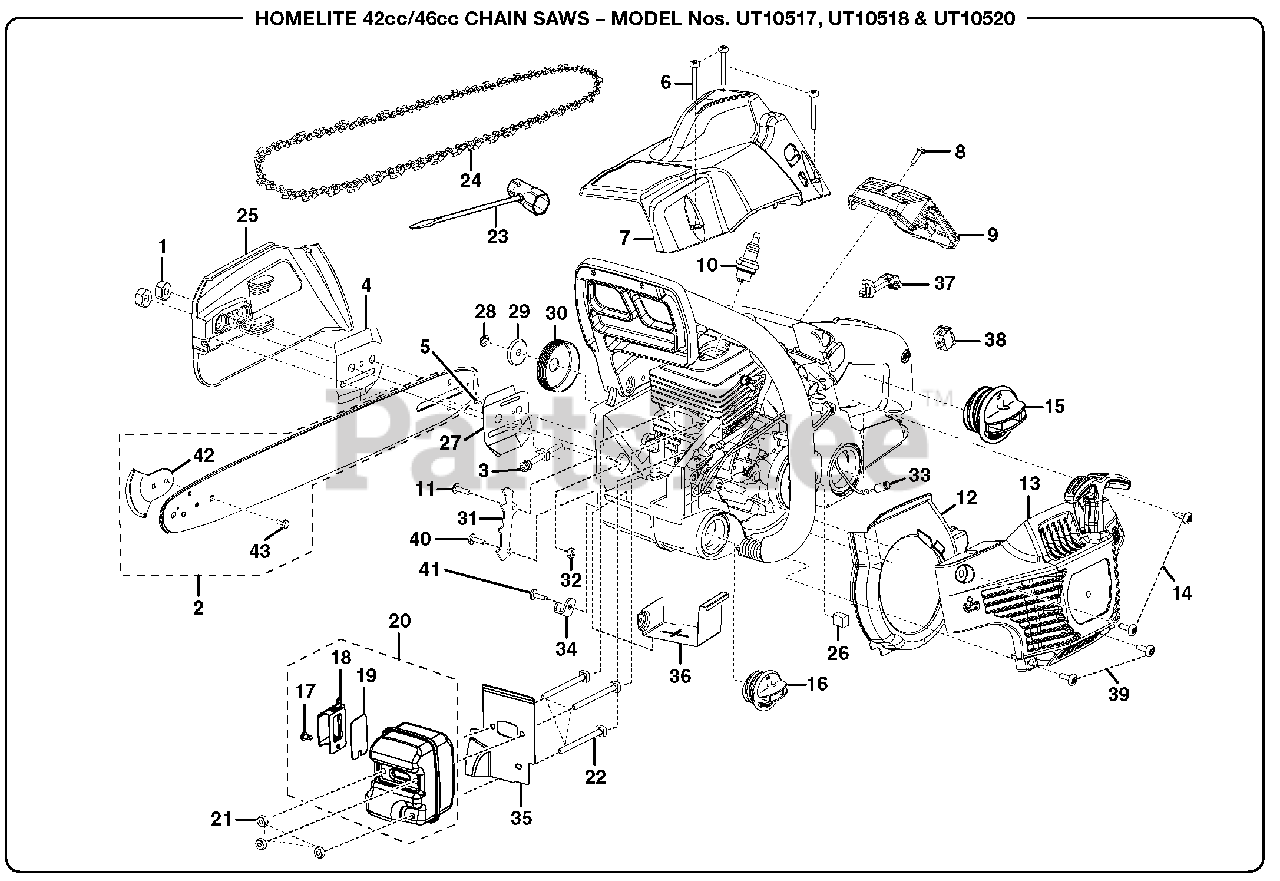

General Assembly Parts Diagram

  • Title

1

Homelite 671076001

Guide Bar Nut (5/16-18)

$1.49

$

In Stock, Qty 5

0

2

Homelite 310627001

Guide Bar (18 in. with SAFE-T-TIP) (Includes Key Nos. 42, 43)
(Superseded to 311028003)

Note: (UT10517)

$37.99

$

Usually ships in 3-7 days

0

Homelite 310628001

Guide Bar (18 in. with SAFE-T-TIP) (Includes Key Nos. 42, 43)
(Superseded to PS06131)

Note: (UT10518)

$

$

Not available

Homelite 310629001

Guide Bar (20 in. with SAFE-T-TIP) (Includes Key Nos. 42, 43)
(Superseded to 120950056)

Note: (UT10520)

$

$

Not available

3

Homelite 308116001

Guide Bar Adjustment Screw

$1.49

$

In Stock, Qty 11

0

4

Homelite 631038001

Outer Guide Plate

$1.49

$

In Stock, only 3 left!

0

5

Homelite T660619001

Screw (6-19 x 1/2 in. T.F.)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 660636001

Screw (10-16 x 1-1/2 in. Special)

$

$

Not available

7

Homelite 518042021

Top Cover, Black

Note: (UT10517)

$

$

Not available

Homelite 518042010

Top Cover, Red

Note: (UT10518/UT10520)

$

$

Not available

8

Homelite 660617001

Screw (8-16 x 16 mm Torx T.F.)
(Superseded to 82617)

$1.49

$

In Stock, only 2 left!

0

9

Homelite 518049002

Air Filter Cover

$

$

Not available

10

Homelite 870174001

Spark Plug (Champion RCJ6Y)

$4.99

$

In Stock, Qty 20+

0

11

Homelite 660625001

Screw (10-24 x 5/8 in. Torx Pan Hd.)

$

$

Currently unavailable

12

Homelite 518055002

Fan Housing Baffle
(Superseded to 518055001)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 308067004

Starter Cover Assembly

$

$

Not available

14

Homelite 660632001

Screw (10-14 x 5/8 in., Truss Hd.)
(Superseded to 82621)

$

$

Not available

15

Homelite 300948002

Fuel Cap Assembly
(Superseded to 300948005)

$

$

Not available

16

Homelite 300949002

Oil Cap Assembly
(Superseded to A07591)

$1.49

$

In Stock, only 4 left!

0

17

Homelite 660624001

Screw (8-32 x 5/16 in.)

$

$

Not available

18

Homelite 638467002

Outlet

$

$

Not available

19

Homelite 638673001

Spark Screen

$

$

Not available

20

Homelite 309310001

Muffler Assembly (Includes Key Nos. 17-19)

$

$

Not available

21

Homelite 671079001

Lock Nut (10-32)

$1.49

$

In Stock, Qty 20+

0

22

Homelite 660626002

Muffler Bolt (Square Hd.)

$1.49

$

In Stock, Qty 20+

0

23

Homelite 631055001

Combination Wrench
(Superseded to 09207)

$7.49

$

Usually ships in 3-7 days

0

24

Homelite 671258001

Chain (.375 x 62 link, 18 in.)

Note: (UT10517)

$25.99

$

Usually ships in 3-7 days

0

Homelite 901430001

Chain (.325 x 72 link, 18 in.)

Note: (UT10518)

$44.99

$

Usually ships in 3-7 days

0

Homelite 900920027

Chain (.325 x 58 link, 20 in.)

Note: (UT10520)

$37.99

$

Usually ships in 3-7 days

0

25

Homelite 300957015

Chain Cover Assembly

$

$

Not available

26

Homelite 900844001

Pre-Filter
(Superseded to PS05070)

$

$

Not available

27

Homelite 631036001

Inner Guide Plate

$

$

Not available

28

Homelite 671103001

E-Ring
(Superseded to 08981)

$2.99

$

In Stock, only 1 left!

0

29

Homelite 631060001

Cupped Washer

$

$

Not available

30

Homelite 300958001

Sprocket Drum and Bearing Assembly (.375 chain)

Note: (UT10517)

$

$

Not available

Homelite 300958002

Sprocket Drum and Bearing Assembly (.325 chain)

Note: (UT10518/UT10520)

$

$

Not available

31

Homelite 631039001

Spike Bar
(Superseded to PS06077)

$

$

Not available

32

Homelite 678027002

Lock Nut (10-24)
(Superseded to 678027001)

$

$

Not available

33

Homelite 300759005

Fuel Filter

$5.99

$

In Stock, only 1 left!

0

34

Homelite 631035001

Chain Catcher
(Superseded to 631035002)

$2.99

$

Usually ships in 3-7 days

0

35

Homelite 900894001

Muffler Gasket

$

$

Not available

36

Homelite 638455001

Heat Shield

$4.49

$

Usually ships in 3-7 days

0

37

Homelite 511709002

Choke Lever, Yellow
(Superseded to PA01644)

Note: (UT10517)

$

$

Not available

Homelite 511709012

Choke Lever, Black

Note: (UT10518/UT10520)

$

$

Not available

38

Homelite 760338001

Ignition Switch
(Superseded to PS02369)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 660637001

Screw (10-14 x 7/8 in., Truss Hd.)
(Superseded to 82620)

$1.49

$

In Stock, Qty 5

0

40

Homelite 660621001

Screw (10-24 x 1/2 in.)
(Superseded to 82632)

$1.49

$

In Stock, Qty 12

0

41

Homelite 660618001

Screw (10-14 x 1/2 in.)
(Superseded to 82541)

$1.49

$

In Stock, Qty 5

0

42

Homelite 308949001

Safety Tip
(Superseded to 308949004)

Note: (UT10517)

$

$

Not available

Homelite 308944001

Safety Tip

Note: (UT10518/UT10520)

$

$

Not available

43

Homelite 660640001

Screw (Hex Head)

$1.49

$

In Stock, only 1 left!

0

44

Homelite 518061001

Scabbard

Note: (UT10520, Not Shown)

$5.99

$

Usually ships in 3-7 days

0

Homelite 518061002

Scabbard

Note: (UT10517/UT10518, Not Shown)

$

$

Not available

Homelite 987000210

Operator's Manual (960970011)

$

$

Not available
