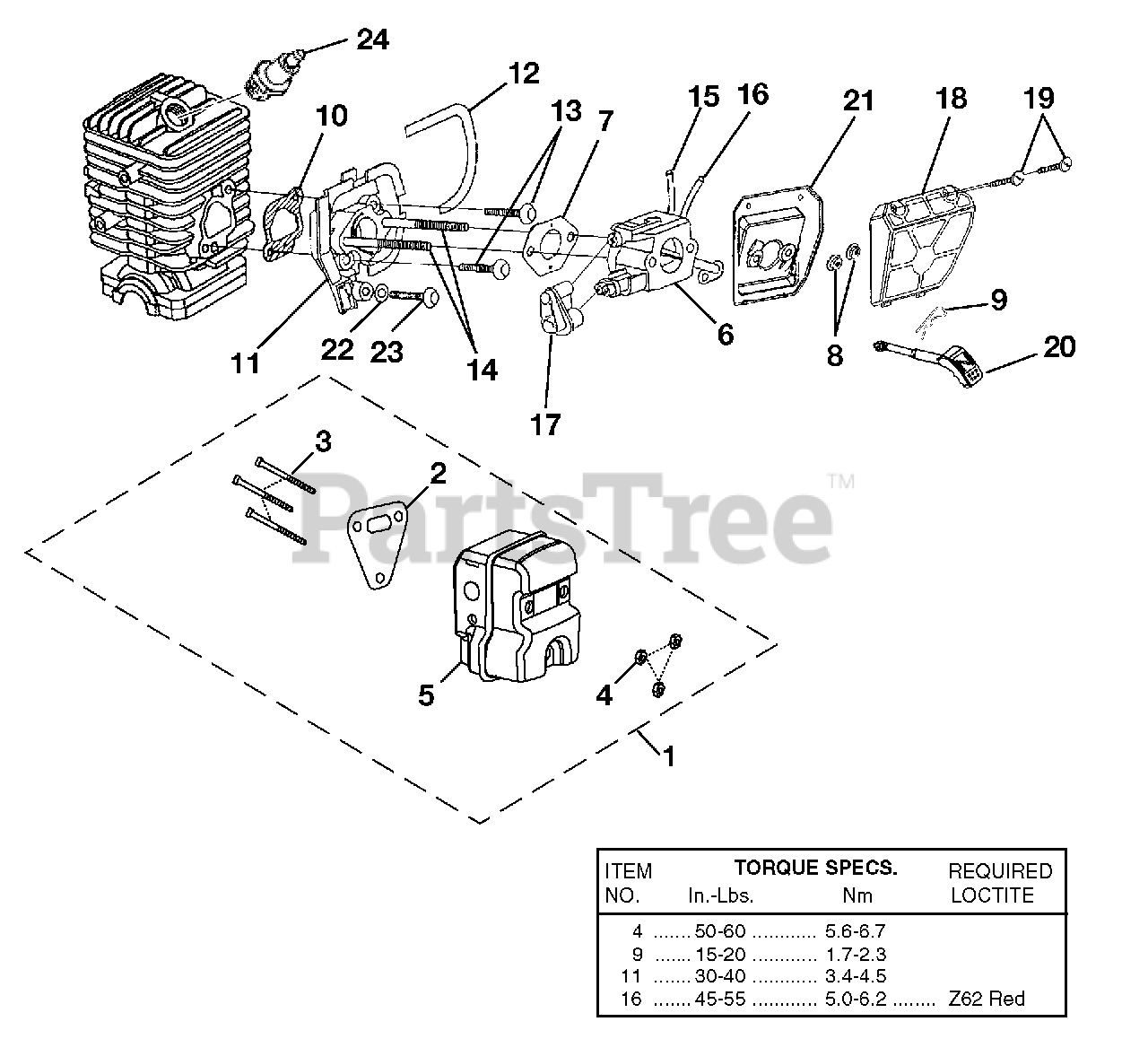

UT-10530-A - Homelite 16" Chainsaw, 33cc Carburetor - Muffler - Air Filter Parts Diagram

16" Chainsaw, 33cc

Carburetor - Muffler - Air Filter Parts Diagram

  • Title

1

Homelite 300993006

Exhaust Assembly

$

$

Not available

2

Homelite 900848002

Muffler Gasket

$

$

Not available

3

Homelite 660626001

Screw-Square Hd.

$

$

Not available

4

Homelite 671079001

Nut-Locking Hex (10-32)

$1.49

$

In Stock, Qty 16

0

5

Homelite 308071001

Muffler
(Superseded to PA01635)

$

$

Not available

6

Homelite 300939004

Carburetor Assembly

$

$

Not available

7

Homelite 900843001

Carburetor Gasket

$

$

Not available

8

Homelite 678033001

Flange Nut (10-24)
(Superseded to 07589)

$1.49

$

In Stock, only 1 left!

0

9

Homelite 631034001

Spring Clip (Choke Rod)
(Superseded to 08939)

$

$

Not available

10

Homelite 900842001

Gasket, Heat Dam
(Superseded to 06840A)

$

$

Not available

11

Homelite 511706001

Carburetor Spacer
(Superseded to 04916)

$

$

Not available

12

Homelite 900850001

Seal, Heat Dam
(Superseded to 06873)

$

$

Not available

13

Homelite 660616002

Screw, Truss Hd.Taptite (10-24 x 7/8")

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660638001

Screw, Carburetor
(Superseded to 06852)

$2.99

$

In Stock, only 1 left!

0

15

Homelite 570247003

Fuel Line (Tankto Carburetor 81/2")
(Superseded to 0745434)

$

$

Not available

16

Homelite 570247001

Fuel Line (Carburetorto Purge Bulb 4")

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 511705001

Carburetor Grommet
(Superseded to 04907)

$

$

Not available

18

Homelite 511708001

Air Filter Cover
(Superseded to 04938)

$

$

Not available

19

Homelite 660617001

Screw-Slotted Pan Hd. (8-16 x 5/8")
(Superseded to 82617)

$1.49

$

In Stock, only 2 left!

0

20

Homelite 511709001

Rod, Choke
(Superseded to PS06280)

$

$

Not available

21

Homelite 511707001

Air Filter Plate
(Superseded to 04937)

$

$

Not available

22

Homelite 671072001

Flat Washer
(Superseded to 12789)

$

$

Not available

23

Homelite 660618001

Screw(10-14x 1/2 in.)
(Superseded to 82541)

$1.49

$

In Stock, only 3 left!

0

24

Homelite 870170001

Spark Plug

$10.99

$

Usually ships in 3-7 days

0
