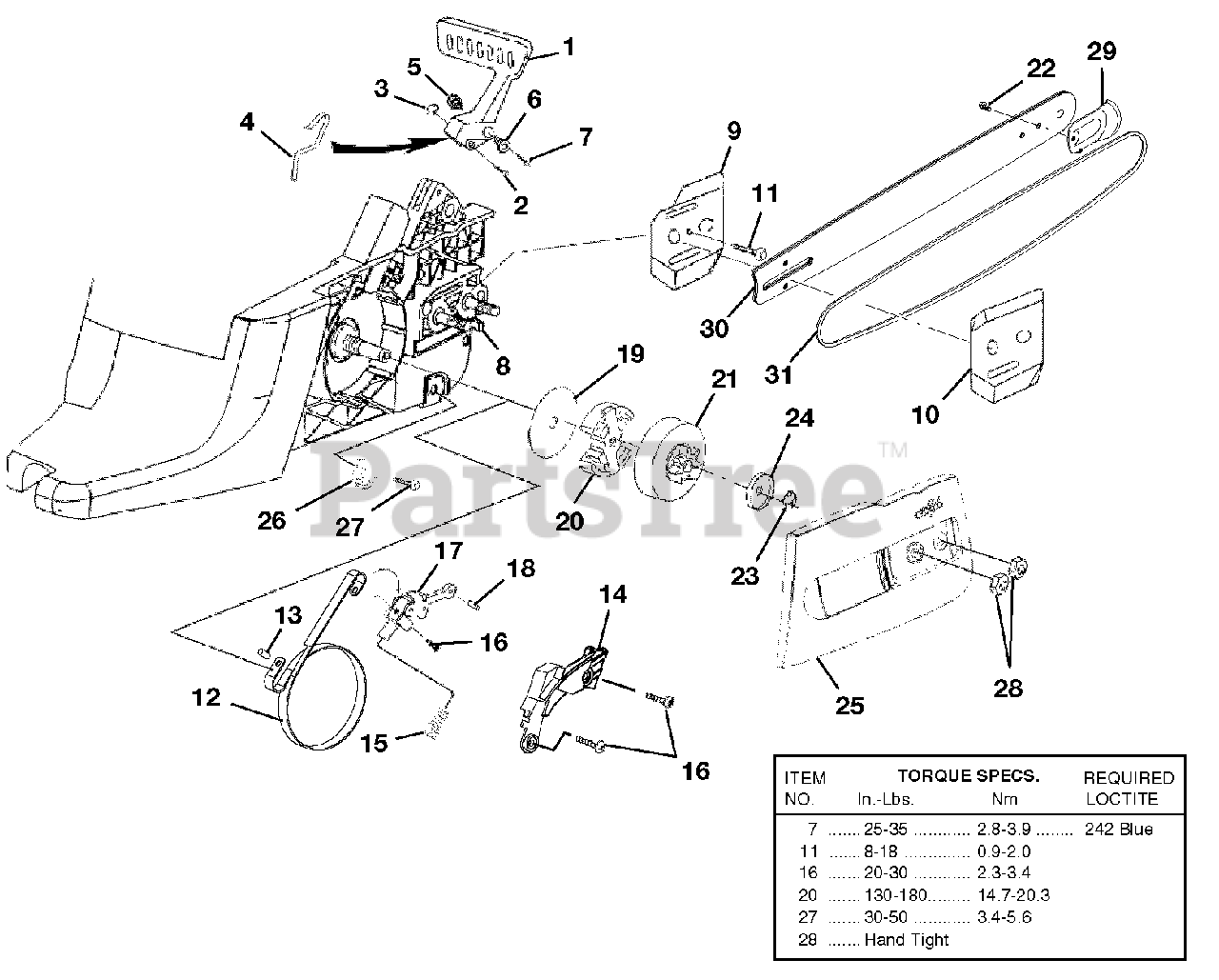

UT-10530-A - Homelite 16" Chainsaw, 33cc Clutch - Chain Brake - Drive Case Cover Parts Diagram

16" Chainsaw, 33cc

Clutch - Chain Brake - Drive Case Cover Parts Diagram

  • Title

1

Homelite 511723010

Hand Guard
(Superseded to 07386B)

$6.49

$

In Stock, only 1 left!

0

2

Homelite 620282001

Hand Guard Actuating Pin

$1.49

$

In Stock, Qty 20+

0

3

Homelite 671075001

Retaining Ring
(Superseded to 69599)

$

$

Not available

4

Homelite 631052001

Hand Guard Spring

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 671097001

Pivot, L.H.

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 671096001

Pivot, R.H.

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 660635001

Screw (8-32 x 5/8 in.)

$1.49

$

In Stock, only 2 left!

0

8

Homelite 308116001

Adjust Screw Assembly

$1.49

$

In Stock, Qty 11

0

9

Homelite 631036001

Guide Bar Plate

$1.49

$

In Stock, only 1 left!

0

10

Homelite 631038001

Guide Bar Plate

$1.49

$

In Stock, only 2 left!

0

11

Homelite T660619001

Screw (6-19 x 1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 631063001

Brake Band
(Superseded to 985030001)

$

$

Not available

13

Homelite 671095001

Roll Pin

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 511720001

Chain Brake Cover
(Superseded to 985021001)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 678107001

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 660634001

Screw (8-16x5/16 in.)

$1.49

$

In Stock, Qty 20+

0

17

Homelite 300954001

Chain Brake Link Assembly
(Superseded to A07612A)

$

$

Not available

18

Homelite 671099001

Roll Pin

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 631061001

Thrust Washer

$1.49

$

In Stock, only 3 left!

0

20

Homelite 300960001

Clutch & Handware
(Superseded to 300960003)

$

$

Not available

21

Homelite 300958001

Drum Sprocket and Bearing Assembly (.375 Pitch)

$

$

Not available

22

Homelite 660640001

Screw-Safety Tip (Hex Hd.)

$1.49

$

In Stock, only 1 left!

0

23

Homelite 671103001

Retaining Ring
(Superseded to 08981)

$2.99

$

In Stock, only 1 left!

0

24

Homelite 631060001

Cupped Washer

$

$

Not available

25

Homelite 300957001

Drive Case Cover Assembly

$

$

Not available

26

Homelite 631035001

Chain Catcher
(Superseded to 631035002)

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 660618001

Screw (10-24x 1/2 in.)
(Superseded to 82541)

$1.49

$

In Stock, only 3 left!

0

28

Homelite 671076001

Hex Nut

$1.49

$

In Stock, only 3 left!

0

29

Homelite 308006001

Safety Tip

$

$

Not available

30

Homelite 308109001

Guide Bar

$30.99

$

In Stock, only 1 left!

0

31

Homelite 900920001

Chain

$

$

Not available
