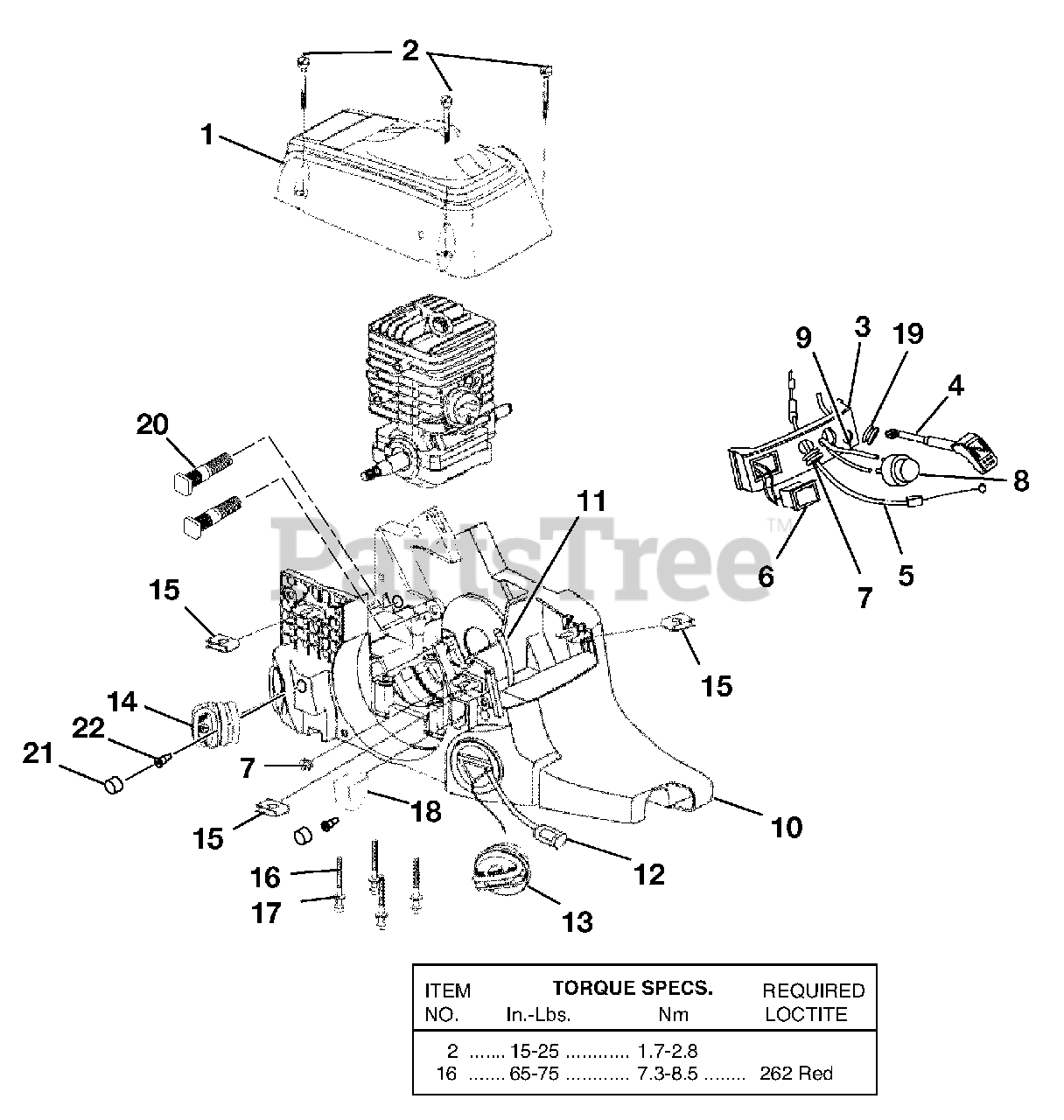

UT-10530-A - Homelite 16" Chainsaw, 33cc Engine Housing - Fuel Tank - Oil Tank Parts Diagram

16" Chainsaw, 33cc

Engine Housing - Fuel Tank - Oil Tank Parts Diagram

  • Title

1

Homelite 511726001

Cylinder Cover
(Superseded to 06875)

$

$

Not available

2

Homelite 660636001

Screw-slotted Pan Head

$

$

Not available

3

Homelite 511719001

Control Panel
(Superseded to PS03503)

$

$

Not available

4

Homelite 511709001

Choke Rod
(Superseded to PS06280)

$

$

Not available

5

Homelite 900845001

Throttle Cable

$

$

Not available

6

Homelite 760338001

Rocker Switch
(Superseded to PS02369)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 570227001

Split Grommet

$1.49

$

In Stock, only 1 left!

0

8

Homelite 300780001

Primer Bulb
(Superseded to 01183)

$

$

Not available

9

Homelite 570247002

Rubber Tubing (5-1/2 in.)
(Superseded to 0745422)

$5.49

$

Usually ships in 3-7 days

0

10

Homelite 300951001

Chassis Assembly

$

$

Not available

11

Homelite 570247003

Rubber Tubing (8-1/2 in.)
(Superseded to 0745434)

$

$

Not available

12

Homelite 300759003

Fuel Filter

$

$

Not available

13

Homelite 300948001

Fuel Cap, w/Retainer

$

$

Not available

14

Homelite 300949001

Oil Cap, w/Retainer
(Superseded to 090038001001)

$1.49

$

In Stock, only 3 left!

0

15

Homelite 671077001

Speed Nut (U-Type)
(Superseded to 07598)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 660622001

Screw, (10-24 x 2 in.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 671080001

Washer

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 900844001

Pre Filter
(Superseded to PS05070)

$

$

Not available

19

Homelite 570219001

Grommet

$

$

Not available

20

Homelite 660628001

Guide Bar Bolt
(Superseded to PS04881)

$

$

Not available

21

Homelite 671088001

Element

$

$

Not available

22

Homelite 560955001

Duck Bill Valve

$1.99

$

In Stock, Qty 9

0

Homelite 940299389

Chain Brake Decal

$1.49

$

Usually ships in 3-7 days

0

Homelite 940299425

Safety Decal

$

$

Not available

Homelite 940299379

D/C Cover Decal

$

$

Not available

Homelite 940299372

Starter Housing Decal

$

$

Not available

Homelite 940299374

Kick Back Decal

$

$

Not available

Homelite 940299387

Help / Start Decal

$

$

Not available
