UT-10530-A - Homelite 16" Chainsaw, 33cc Engine Internal - Oil Pump Parts Diagram

16" Chainsaw, 33cc

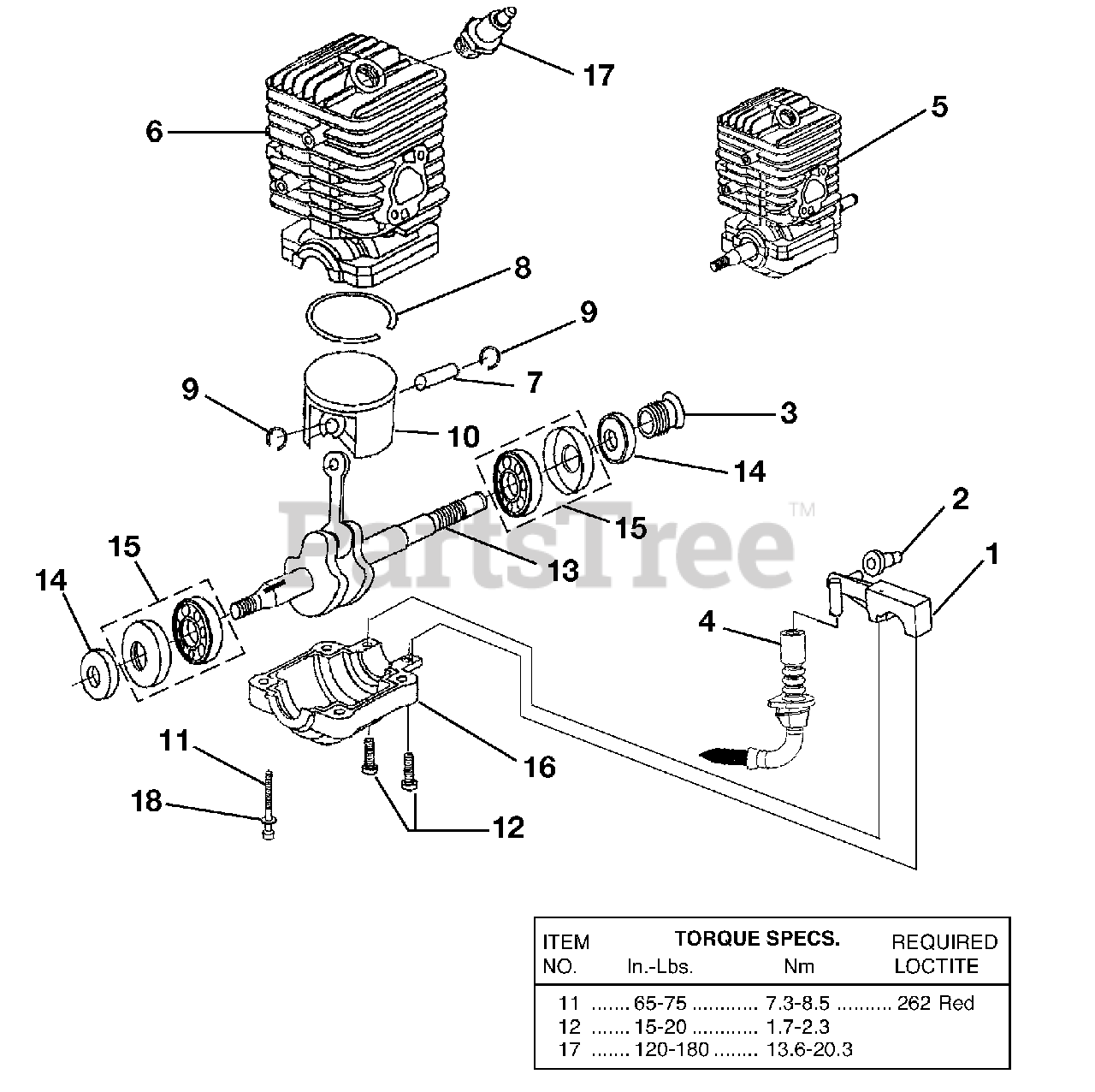

Engine Internal - Oil Pump Parts Diagram

  • Title

1

Homelite 300945002

Oil Pump Kit

$

$

Not available

2

Homelite 570226001

Grommet, Oil Outlet

$1.49

$

Usually ships in 3-7 days

0

3

Homelite T610389001

Left Hand Worm

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 300950001

Oil Intake Tube w/Filter
(Superseded to PA01037)

$

$

Not available

5

Homelite 300984002

Short Block, Complete
(Superseded to UP03119A)

Note: (33cc)

$

$

Not available

6

Homelite 640819015

Cylinder Kit

Note: (33cc)

$60.99

$

Usually ships in 3-7 days

0

Homelite 900848002

Gasket, Muffler

Note: (Not Shown)

$

$

Not available

Homelite 900842001

Gasket, Heat Dam
(Superseded to 06840A)

Note: (Not Shown)

$

$

Not available

Homelite 300939004

Gasket, Carburetor

Note: (Not Shown)

$

$

Not available

7

Homelite 620277001

Piston Pin

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 690161005

Piston Ring

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 671082001

Ring, Retaining
(Superseded to 64813)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 640995001

Piston

$

$

Not available

11

Homelite 660622001

Screw, Cap-Socket Hd. (10-24x2")

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 660627001

Screw, Pan Hd., (8-32x5/8")

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 300943003

Crankshaft & Rod Assembly

$

$

Not available

14

Homelite 570220001

Shaft Seal

$

$

Not available

15

Homelite 308007001

Bearing & Rubber Case

$

$

Not available

16

Homelite 640818001

Lower Crankcase
(Superseded to 04909)

$

$

Not available

17

Homelite 870170001

Spark Plug

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 671080001

Washer

$1.49

$

Usually ships in 3-7 days

0
