UT-10588 - Homelite 18" Chainsaw, 42cc Figure C Parts Diagram

18" Chainsaw, 42cc

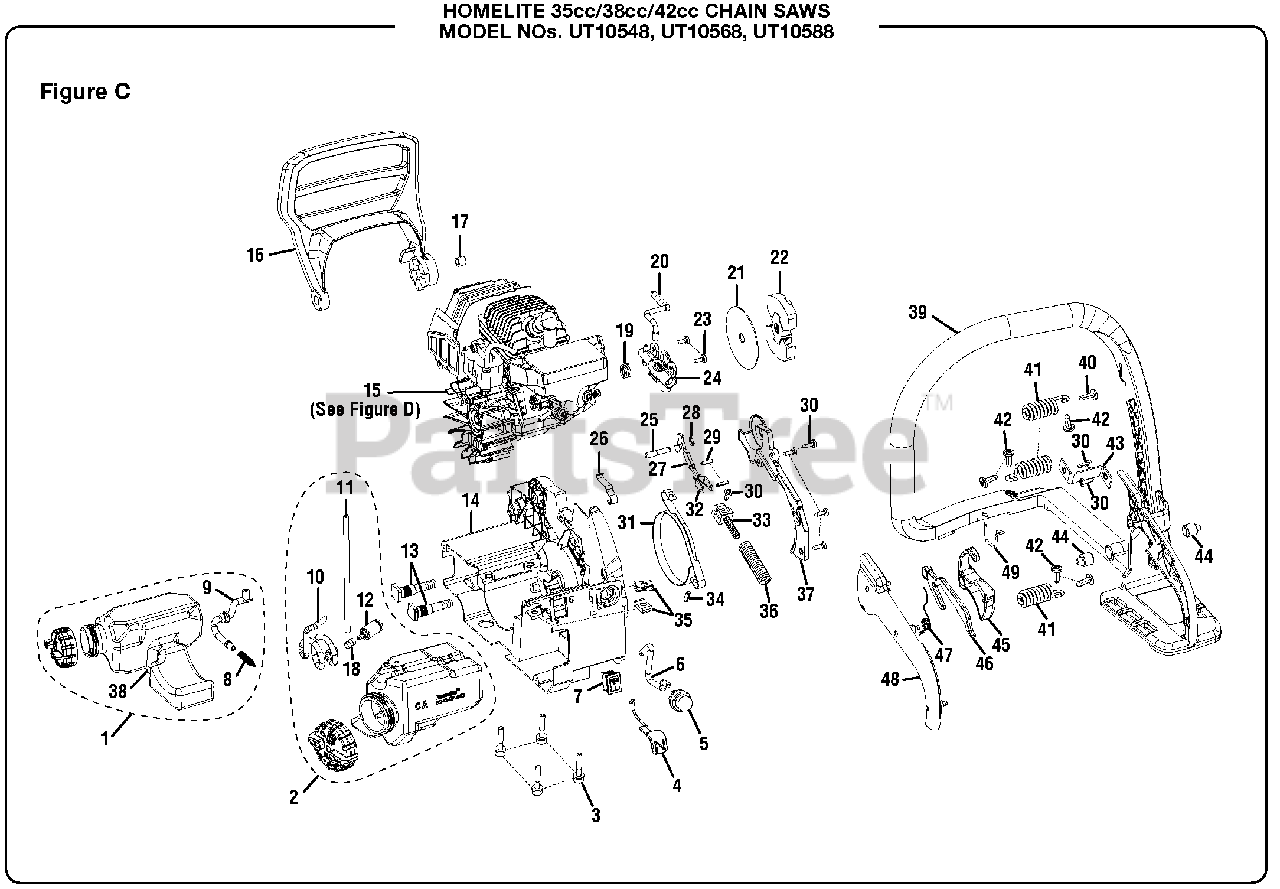

Figure C Parts Diagram

  • Title

1

Homelite 310550003

Oil Tank & Cap Assembly (Inc. Key Nos. 8-9 and 38)

$

$

Not available

2

Homelite 310551004

Fuel Tank & Cap Assembly (Inc. Key Nos. 10-12 and 18)
(Superseded to 310551001)

$

$

Not available

3

Homelite 660609001

Screw (M5 x 28 mm)

$

$

Not available

4

Homelite 518760001

Choke Lever

$

$

Not available

5

Homelite 300780003

Primer Bulb

$9.49

$

In Stock, only 3 left!

0

6

Homelite 570259048

Primer Bulb Inlet Tube (73 mm)

$1.49

$

In Stock, Qty 5

0

7

Homelite 760338002

Switch

$

$

Not available

8

Homelite 671090001

Cone Spring

$2.49

$

In Stock, only 4 left!

0

9

Homelite 570097001

Oil Pump Inlet Tube

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 570259040

Fuel Line Inlet (Helical)

$3.99

$

Usually ships in 3-7 days

0

11

Homelite 570259055

Fuel Line (205 mm)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 300759005

Fuel Filter

$11.99

$

In Stock, only 1 left!

0

13

Homelite 660503003

Guide Bar Bolt (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 310501004

Main Chassis

$11.99

$

Usually ships in 3-7 days

0

15

Homelite 309643007

Engine Assembly

$

$

Not available

16

Homelite 518756001

Front Hand Guard

$10.99

$

In Stock, only 1 left!

0

17

Homelite 678602001

Hand Guard Insert

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 690765001

Hose Clamp

$2.49

$

In Stock, Qty 5

0

19

Homelite 678063001

Oil Pump Gear Spring

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 570096001

Oil Pump Outlet Tube

$

$

Not available

21

Homelite 638504001

Thrust Washer

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 310510001

Clutch Assembly

$

$

Not available

23

Homelite 660610001

Screw (M4 x 9.5 mm)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 309514001

Oil Pump Assembly

$18.99

$

Usually ships in 3-7 days

0

25

Homelite 678054001

Chain Brake Pin

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 678061001

Spring

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 678060001

Chain Break Pivot

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 671075001

E-Ring
(Superseded to 69599)

$

$

Not available

29

Homelite 671099001

Spring Pin

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 660608001

Screw (M4 x 12 mm)

$2.49

$

In Stock, Qty 5

0

31

Homelite 638502001

Brake Band

$

$

Not available

32

Homelite 678058001

Chain Brake Linkage

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 518754001

Spring Guide

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 671095001

Spring Pin

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 671077003

Speed Nut ("U"-Type)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 678057001

Chain Brake Spring

$

$

Not available

37

Homelite 518819001

Chain Brake Cover

$

$

Not available

38

Homelite 580506001

Oil Tank

$

$

Not available

39

Homelite 518755003

Rear Handle

$

$

Not available

40

Homelite 660630001

Screw (10-24 x 5/8 in.)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 678069001

Isolator Spring

$

$

Not available

42

Homelite 660614001

Screw (10-14 x 16 mm)

$2.49

$

In Stock, only 4 left!

0

43

Homelite 901654001

Anti-Vibe Strap

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 570095001

Isolator

$

$

Not available

45

Homelite 518765002

Trigger

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 518764001

Lock-Out Lever

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 678068001

Trigger Return Spring

$

$

Not available

48

Homelite 518763001

Rear Handle Cover

$

$

Not available

49

Homelite 678603001

Throttle Rod

$2.49

$

In Stock, Qty 5

0
