UT-10901-B - Homelite 14" Chainsaw, 33cc Clutch- Handguard- Drive Casecover Parts Diagram

14" Chainsaw, 33cc

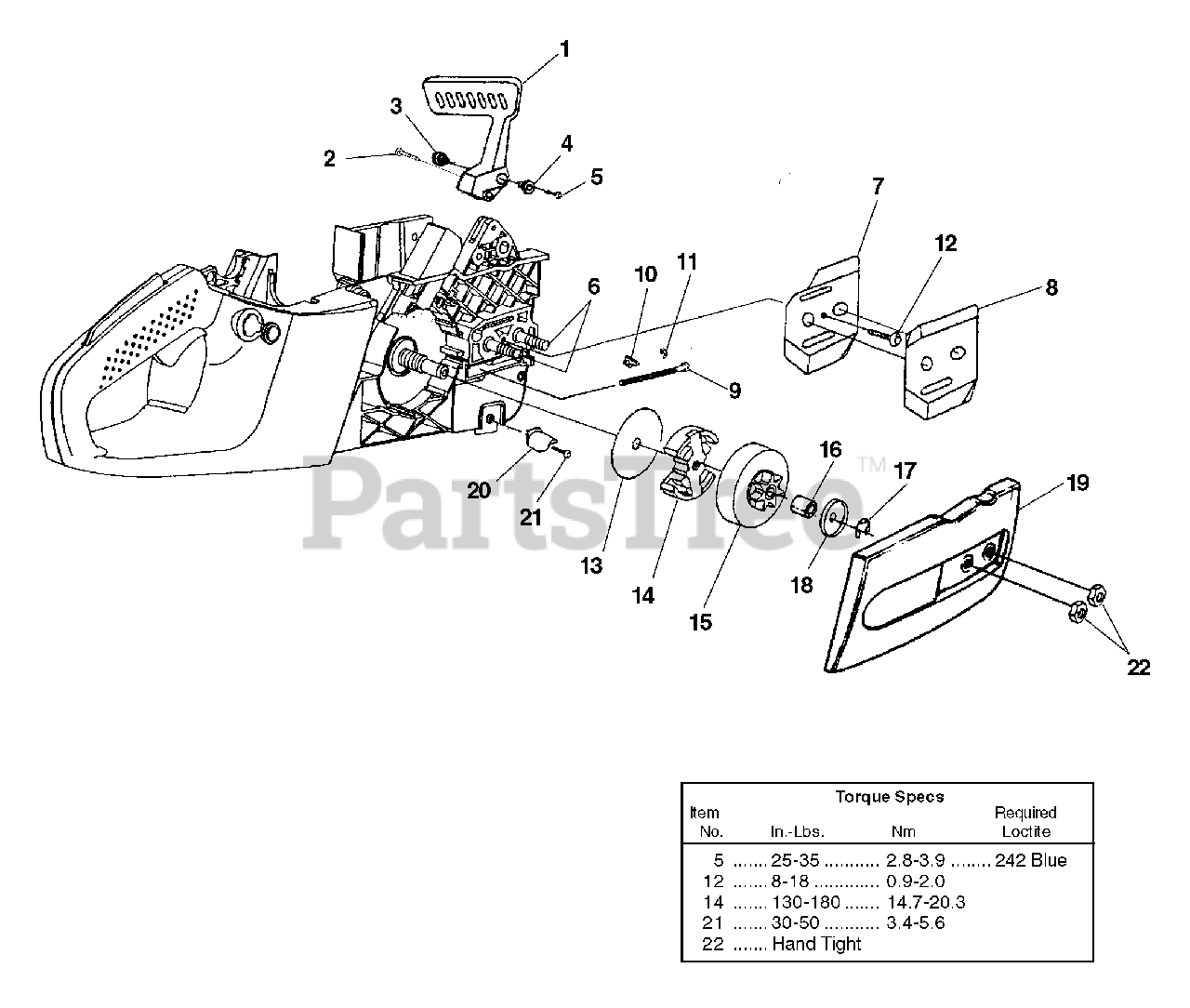

Clutch- Handguard- Drive Casecover Parts Diagram

  • Title

1

Homelite UP06568A

Hand Guard Kit
(Superseded to 000998152)

Note: Includes items 1 -2

$

$

Not available

2

Homelite 82546

Screw-Thd. form. (#8-14 x .625)
(Superseded to 660675001)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 07393

Pivot, L.H.
(Superseded to 671097001)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 07392

Pivot, R.H.
(Superseded to 671096001)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 82624

Screw, Hex Socket Hd.(8-32 x 5/8")
(Superseded to 660635001)

$1.49

$

In Stock, only 2 left!

0

6

Homelite PS04881

Guide Bar Bolt

$

$

Not available

Homelite UP06966A

Guide Bar Adjusting Kit

Note: Includes items 6-11

$

$

Not available

7

Homelite 07404A

Plate, Guide Bar
(Superseded to 631036001)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 07405A

Plate, Guide Bar
(Superseded to 631038001)

$1.49

$

In Stock, only 2 left!

0

9

Homelite 06844

Screw, Guide Bar Adjusting

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 06842

Pin, Guide Bar Adjusting
(Superseded to 631037001)

$1.49

$

In Stock, only 4 left!

0

11

Homelite 69599

Ring, Retaining

$

$

Not available

12

Homelite 82513

Screw, Thread Form., Plastite (6-19 x 1/2")

$1.49

$

In Stock, Qty 5

0

13

Homelite 04940

Thrust Washer
(Superseded to 631061001)

$1.49

$

In Stock, only 3 left!

0

14

Homelite UP06727A

Clutch & Hardware
(Superseded to 300960003)

$

$

Not available

15

Homelite UP06967A

Sprocket, Drum (3/8 Pitch)
(Superseded to 000998263)

Note: Includes items 15-17

$28.99

$

Usually ships in 3-7 days

0

16

Homelite PS04669

Bearing,Needle

$3.99

$

Usually ships in 3-7 days

0

17

Homelite 08981

Ring, Retaining

$2.99

$

In Stock, only 1 left!

0

18

Homelite 04939A

Washer, Cupped
(Superseded to 631060001)

$

$

Not available

19

Homelite UP06975A

Drive Case Cover

Note: Includes items 19-21

$

$

Not available

20

Homelite UP05634A

Stop,Chain
(Superseded to 631035002)

$2.99

$

Usually ships in 3-7 days

0

21

Homelite 82563

Screw, Thread Form., Plastite (10-14 x 3/4")

$1.49

$

In Stock, Qty 6

0

22

Homelite 81196

Nut, Hex
(Superseded to 671076001)

$1.49

$

In Stock, only 3 left!

0
