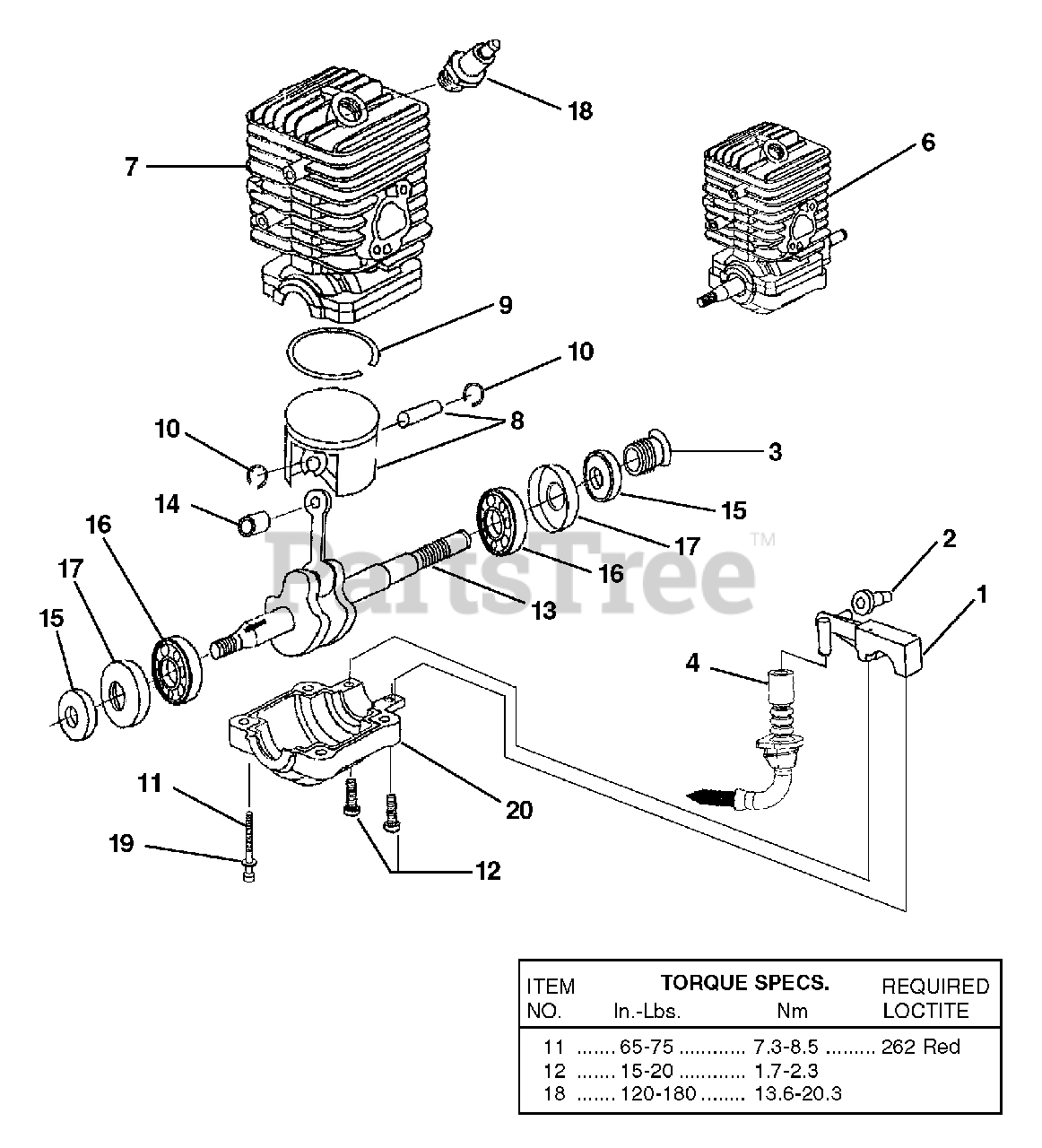

UT-10901-B - Homelite 14" Chainsaw, 33cc Engine Internal - Oil Pump Parts Diagram

14" Chainsaw, 33cc

Engine Internal - Oil Pump Parts Diagram

  • Title

1

Homelite UP06602

Oil Pump Kit

Note: Includes items 2-4

$

$

Not available

2

Homelite 06841

Grommet,Oil Outlet
(Superseded to 570226001)

$2.49

$

In Stock, only 4 left!

0

3

Homelite 06847

Left Hand Worm
(Superseded to T610389001)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite PA01037

Oil Intake Tube w/Filter

$

$

Not available

6

Homelite 300984003

Short Block,Complete (33cc)

Note: Includes item 7-17

$

$

Not available

7

Homelite 640941004

Cylinder Kit (33cc)

Note: Includes item 7

$45.99

$

Usually ships in 3-7 days

0

Homelite 900848001

Gasket, Muffler
(Superseded to 06839)

Note: (Not Shown)

$2.49

$

In Stock, only 4 left!

0

Homelite 06840A

Gasket, Heat Dam

Note: (Not Shown)

$

$

Not available

Homelite 98339

Gasket, Carburetor
(Superseded to 900843001)

Note: (Not Shown)

$

$

Not available

8

Homelite 640974002

Piston & Pin (33cc)

Note: Includes item 9-10

$

$

Not available

9

Homelite 03179

Piston Ring
(Superseded to 690161005)

$

$

Not available

10

Homelite 64813

Ring, Retaining

$5.99

$

Usually ships in 3-7 days

0

11

Homelite 82527

Screw, Cap-Socket Hd.(10-24x2")
(Superseded to 660622001)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite PS04989

Screw, Pan Hd.,(8-32x5/8")
(Superseded to 660627001)

Note: Includes items 13-17

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 300943003

Crankshaft & Rod Assembly

$

$

Not available

14

Homelite 678196001

Bearing, Needle

$

$

Currently unavailable

15

Homelite 04920

Shaft Seal
(Superseded to 570220001)

$

$

Not available

16

Homelite A04931A

Bearing & Rubber Case
(Superseded to UP04176A)

Note: Includes item 17

$

$

Not available

17

Homelite 04919

Rubber Case
(Superseded to 570221001)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite PS06216

Spark Plug
(Superseded to 870174002)

$21.99

$

Usually ships in 3-7 days

0

19

Homelite 84008

Washer
(Superseded to 671080001)

$2.49

$

In Stock, only 2 left!

0

20

Homelite 04909

Lower Crankcase
(Superseded to 640818001)

$

$

Not available
