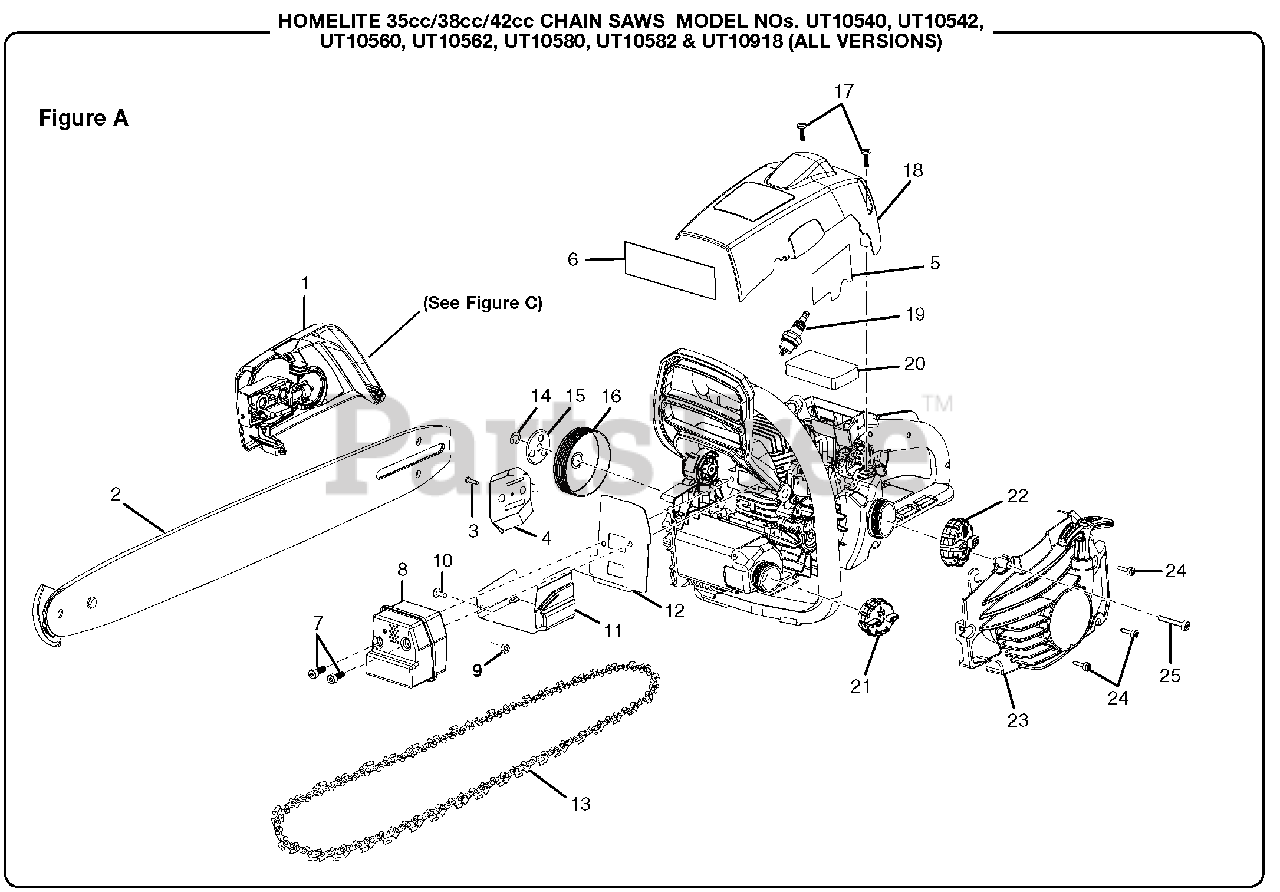

UT-10918 - Homelite 18" Chainsaw, 42cc Figure A Parts Diagram

18" Chainsaw, 42cc

Figure A Parts Diagram

  • Title

1

Homelite 310508001

Chain Cover Assembly

$

$

Not available

2

Homelite 310625001

Guide Bar (with SAFE-T-TIP)

Note: UT10540, UT10542 - 14 in

$

$

Not available

Homelite 310626001

Guide Bar (with SAFE-T-TIP)
(Superseded to 311027003)

Note: UT10560, UT10562 - 16 in

$

$

Not available

Homelite 310627001

Guide Bar (with SAFE-T-TIP)
(Superseded to 311028003)

Note: UT10580, UT10582, UT10918 - 18 in

$37.99

$

Usually ships in 3-7 days

0

3

Homelite T660619001

Screw (6-19 x 1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 638515001

Inner Guide Plate

$1.49

$

In Stock, only 1 left!

0

5

Homelite 700150004

Heat Shield

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 700150002

Heat Shield

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 660612001

Screw (1/4-20 x 5/8 in.)

$1.49

$

In Stock, only 3 left!

0

8

Homelite 309315001

Muffler Assembly

$

$

Not available

9

Homelite 678027002

Lock Nut (10-24)
(Superseded to 678027001)

$

$

Not available

10

Homelite 660754001

Screw (10-24 x 5/8 in.)

$

$

Not available

11

Homelite 638278001

Heat Shield

$5.49

$

Usually ships in 3-7 days

0

12

Homelite 901653001

Muffler Gasket

$

$

Not available

13

Homelite 901212001

Chain (3/8 in.): - 52 link

Note: UT10540, UT10542, 14 in

$22.99

$

In Stock, only 2 left!

0

Homelite 901212002

Chain (3/8 in.): - 56 link
(Superseded to 984296008)

Note: UT10560, UT10562, 16 in

$

$

Not available

Homelite 671258001

Chain (3/8 in.): - 62 link

Note: UT10580, UT10582, UT10918, 18 in

$25.99

$

Usually ships in 3-7 days

0

14

Homelite 671103001

E-Clip
(Superseded to 08981)

$2.99

$

In Stock, only 1 left!

0

15

Homelite 678620001

Clutch Washer

$

$

Not available

16

Homelite 309410001

Sprocket Drum and Bearing Assembly (.375 chain)

$10.99

$

Usually ships in 3-7 days

0

17

Homelite 660504001

Screw (10-16 x 16 mm)

$1.49

$

In Stock, only 3 left!

0

18

Homelite 518776001

Cylinder Cover

$

$

Not available

19

Homelite 870170001

Spark Plug (Champion RCJ4)

$10.99

$

Usually ships in 3-7 days

0

20

Homelite 901652001

Air Filter

$

$

Not available

21

Homelite 310560001

Oil Cap Assembly

$

$

Not available

22

Homelite 310561001

Fuel Cap Assembly

$

$

Not available

23

Homelite 310502001

Starter Cover Assembly

$

$

Not available

24

Homelite 660505001

Screw (M4 x 17 mm)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 660970007

Screw (M4 x 22.5 mm)

$1.49

$

Usually ships in 3-7 days

0

Homelite 580438003

Scabbard:

Note: 14 in, Not Shown

$

$

Not available

Homelite 518061003

Scabbard:

Note: 16 in, Not Shown

$

$

Not available

Homelite 518061002

Scabbard:

Note: 18 in, Not Shown

$

$

Not available

Homelite 940656013

Starter Cover Labels:

Note: 35 cc, Not Shown

$

$

Currently unavailable

Homelite 940635044

Starter Cover Labels:

Note: 38 cc, Not Shown

$

$

Not available

Homelite 940635045

Starter Cover Labels:

Note: 42 cc, Not Shown

$

$

Not available

Homelite 940777002

Warning Labels:

Note: 35 cc, Not Shown

$

$

Currently unavailable

Homelite 940777003

Warning Labels:

Note: 38 cc, Not Shown

$

$

Not available

Homelite 940777004

Warning Labels:

Note: 42 cc, Not Shown

$

$

Not available

Homelite 940734033

Starting Instruction Label

Note: Not Shown

$1.49

$

Usually ships in 3-7 days

0

Homelite 940793001

Chain Brake Label

Note: Not Shown

$

$

Not available

Homelite 631055001

Combination Wrench
(Superseded to 09207)

Note: Not Shown, (UT10542, UT10562, UT10582 only)

$7.49

$

Usually ships in 3-7 days

0

Homelite 987000339

Operator's Manual (960404001)

$

$

Not available
