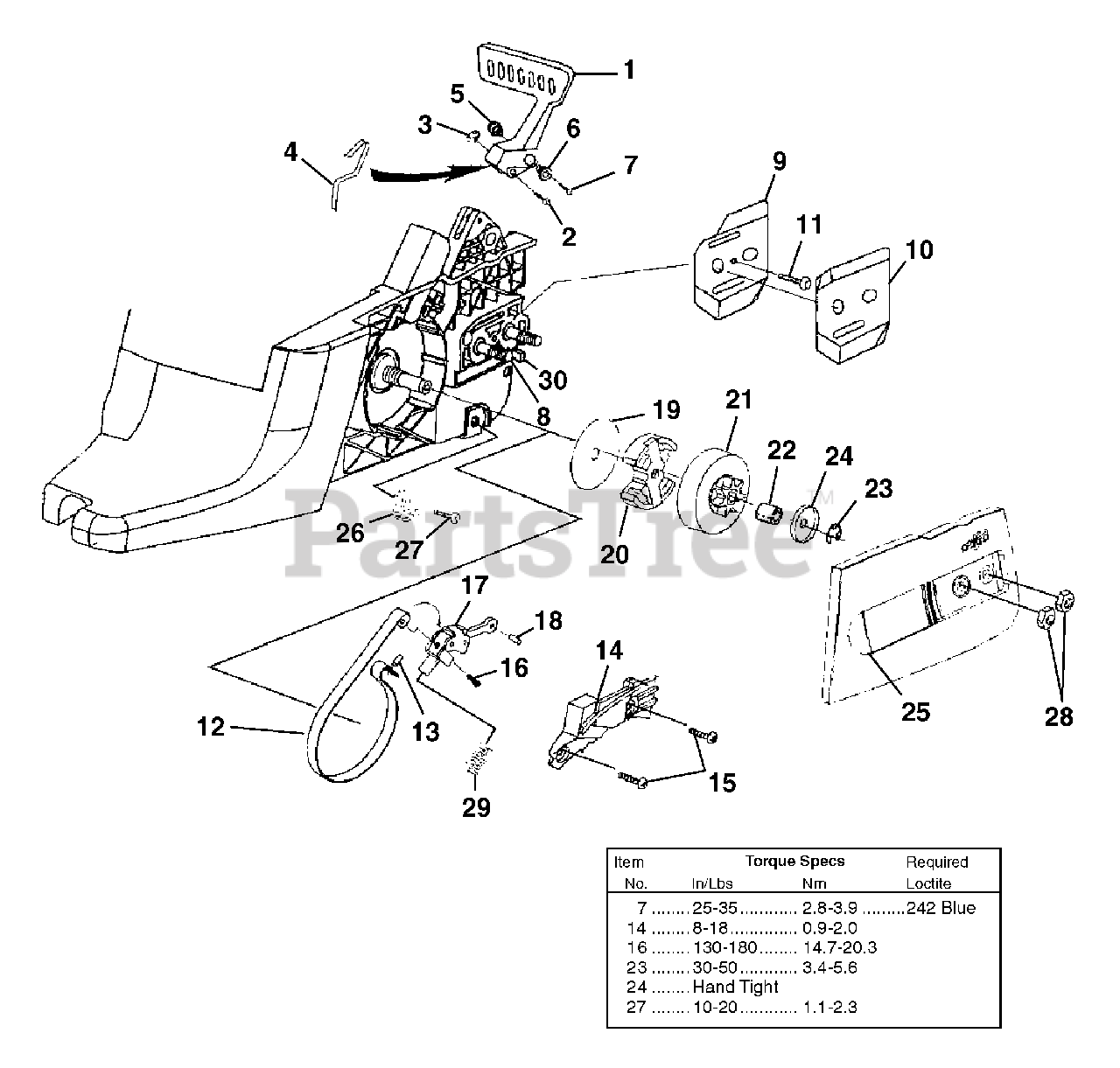

UT-10947-A - Homelite 16" Chainsaw, 33cc Clutch - Chain Brake - Drive Case Parts Diagram

16" Chainsaw, 33cc

Clutch - Chain Brake - Drive Case Parts Diagram

  • Title

1

Homelite UP06568A

Hand Guard Kit
(Superseded to 000998152)

Note: Include items 1-4

$

$

Not available

2

Homelite 07580

Hand Guard Actuating Pin
(Superseded to 620282001)

$1.49

$

In Stock, Qty 20+

0

3

Homelite 69599

Retaining Ring

$

$

Not available

4

Homelite 07613

Spring, Handguard
(Superseded to 631052001)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 07393

Pivot, L.H.
(Superseded to 671097001)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 07392

Pivot, R.H.
(Superseded to 671096001)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 82624

Screw, Hex Socket Hd. (8-32 x 5/8")
(Superseded to 660635001)

$1.49

$

In Stock, only 2 left!

0

8

Homelite PS04881

Guide Bar Bolt

$

$

Not available

9

Homelite 07404A

Plate, Guide Bar
(Superseded to 631036001)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 07405A

Plate, Guide Bar
(Superseded to 631038001)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 82513

Screw, Thread Form (6-19 x 1/2")

$1.49

$

In Stock, Qty 5

0

12

Homelite UP08097A

Chain Brake Band Kit
(Superseded to UP06373A)

Note: Include items 12-16

$

$

Not available

13

Homelite 06672

Pin, Roll
(Superseded to 671095001)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 06843A

Cover, Chain Brake
(Superseded to 985021001)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 82513

Screw, Pan Hd. (6-19 x 1/2")

$1.49

$

In Stock, Qty 5

0

16

Homelite 82623

Screw, Pan Hd. (8-16 x .320)
(Superseded to 660634001)

$1.49

$

In Stock, Qty 20+

0

17

Homelite 984897001

Chain Brake Link

$

$

Not available

18

Homelite 95395A

Pin, Roll
(Superseded to 671099001)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 04940

Thrust Washer
(Superseded to 631061001)

$1.49

$

In Stock, only 3 left!

0

20

Homelite UP06727A

Clutch & Hardware
(Superseded to 300960003)

$

$

Not available

21

Homelite UP08727

Sprocket, Drum (.325 Pitch)
(Superseded to 984350001)

Note: Include items 21-23

$

$

Not available

22

Homelite PS04669

Bearing, Needle

$3.99

$

Usually ships in 3-7 days

0

23

Homelite 08981

Ring, Retaining

$2.99

$

In Stock, only 1 left!

0

24

Homelite 04939A

Washer, Cupped
(Superseded to 631060001)

$

$

Not available

25

Homelite UP06975A

Drive Case Cover

$

$

Not available

26

Homelite UP05634A

Chain Catcher
(Superseded to 631035002)

Note: Include items 26-27

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 82541

Screw, Thread Form (10-24 x 1/2")

$1.49

$

In Stock, only 3 left!

0

28

Homelite 81196

Nut, Hex
(Superseded to 671076001)

$1.49

$

In Stock, only 3 left!

0

29

Homelite 984679-001

Spring, Compression

$

$

Not available

30

Homelite UP08000A

Adjusting Pin Assembly
(Superseded to 308116001)

$1.49

$

In Stock, Qty 11

0
