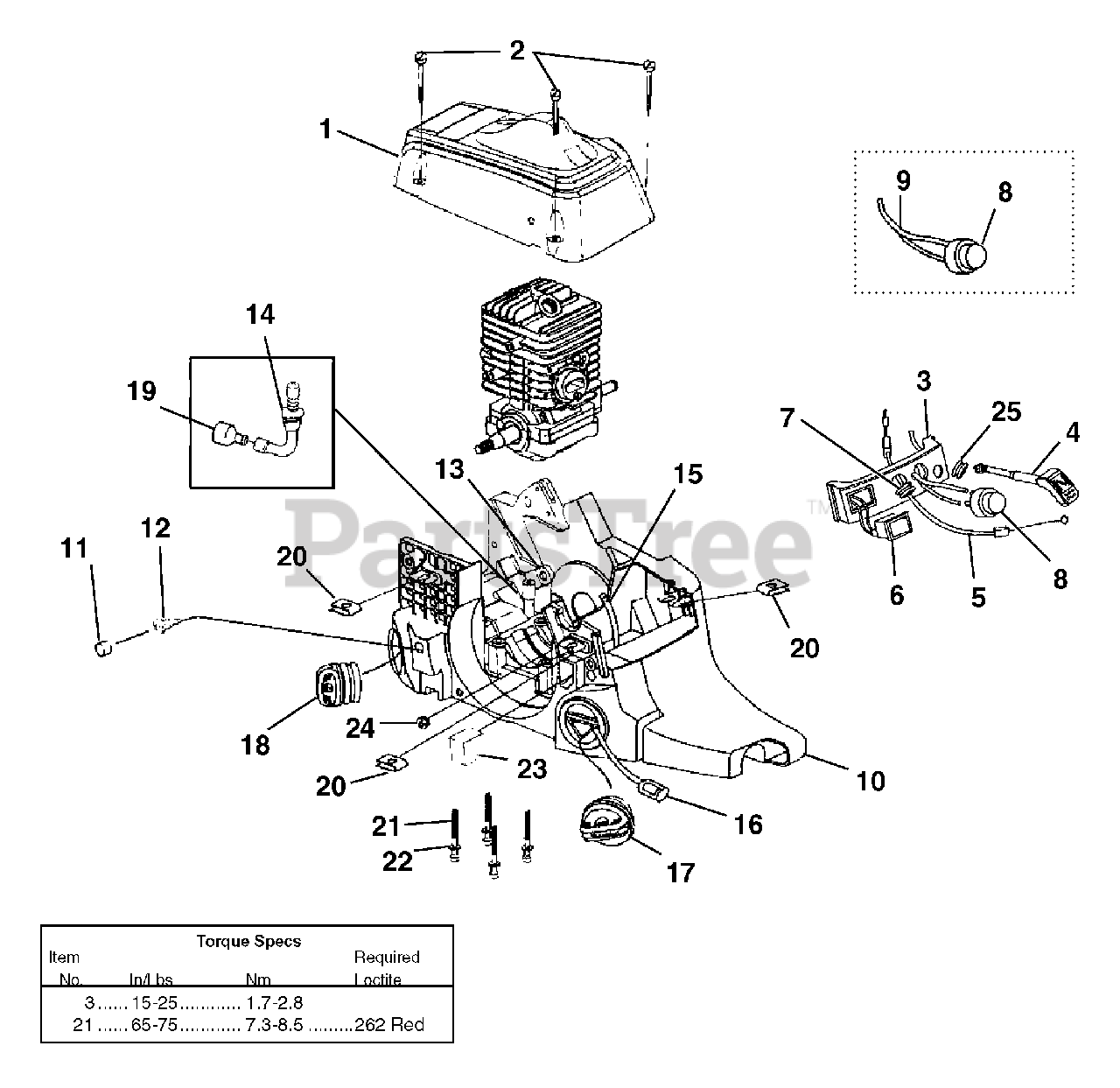

UT-10947-A - Homelite 16" Chainsaw, 33cc Engine Housing - Fuel Tank - Oil Parts Diagram

16" Chainsaw, 33cc

Engine Housing - Fuel Tank - Oil Parts Diagram

  • Title

1

Homelite UP08724

Cylinder Cover Kit

Note: Include items 1-2

$

$

Not available

2

Homelite 07597

Screw-Slotted Pan Hd.
(Superseded to 660636001)

$

$

Not available

Homelite PS06323

Kickback-Decal

$

$

Not available

Homelite PS06324

Safety Decal
(Superseded to 940299425)

$

$

Not available

3

Homelite PS03503

Control Panel

$

$

Not available

4

Homelite PS06280

Rod, Choke

$

$

Not available

5

Homelite A07596B

Throttle Cable
(Superseded to 900845001)

$

$

Not available

6

Homelite PS02369

Switch, Rocker

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 07587

Grommet - Split
(Superseded to 570227001)

$1.49

$

In Stock, only 1 left!

0

8

Homelite 01183

Primer Bulb
(Superseded to 300780002)

$

$

Not available

9

Homelite 0745422

Rubber Tubing (5 1/2")

$5.49

$

Usually ships in 3-7 days

0

10

Homelite UP08721

Chassis
(Superseded to UP06754A)

Note: Include items 10-19

$87.99

$

Usually ships in 3-7 days

0

11

Homelite 07403

Element, Filter (Bronze)
(Superseded to 671088001)

$

$

Not available

12

Homelite 03134

Duck Bill Valve
(Superseded to 560955001)

$1.99

$

In Stock, Qty 9

0

13

Homelite 06841

Oil Outlet Grommet
(Superseded to 570226001)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite PA01037

Oil Intake Tube w/Filter

$

$

Not available

15

Homelite 0745434

Rubber Tubing (8 1/2")

$

$

Not available

16

Homelite PS03380

Fuel Filter
(Superseded to 300759003)

$

$

Not available

17

Homelite PA01645

Fuel Cap w/ Retainer
(Superseded to 300948001)

$

$

Not available

18

Homelite PA01646

Oil Cap w/ Retainer
(Superseded to 300949001)

$1.49

$

In Stock, only 3 left!

0

Homelite PS04881

Guide Bar Bolt

Note: (Not Shown)

$

$

Not available

19

Homelite A68593

Oil Filter

$

$

Not available

20

Homelite 07598

Speed Nut ("U-Type")

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 82527

Screw, Cap-Socket Hd. (10-24 x 2")
(Superseded to 660622001)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 84008

Washer
(Superseded to 671080001)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite PS05070

Pre Filter

$

$

Not available

24

Homelite 07587

Grommet-Split
(Superseded to 570227001)

$1.49

$

In Stock, only 1 left!

0

25

Homelite 64862

Grommet
(Superseded to 570219001)

$

$

Not available
